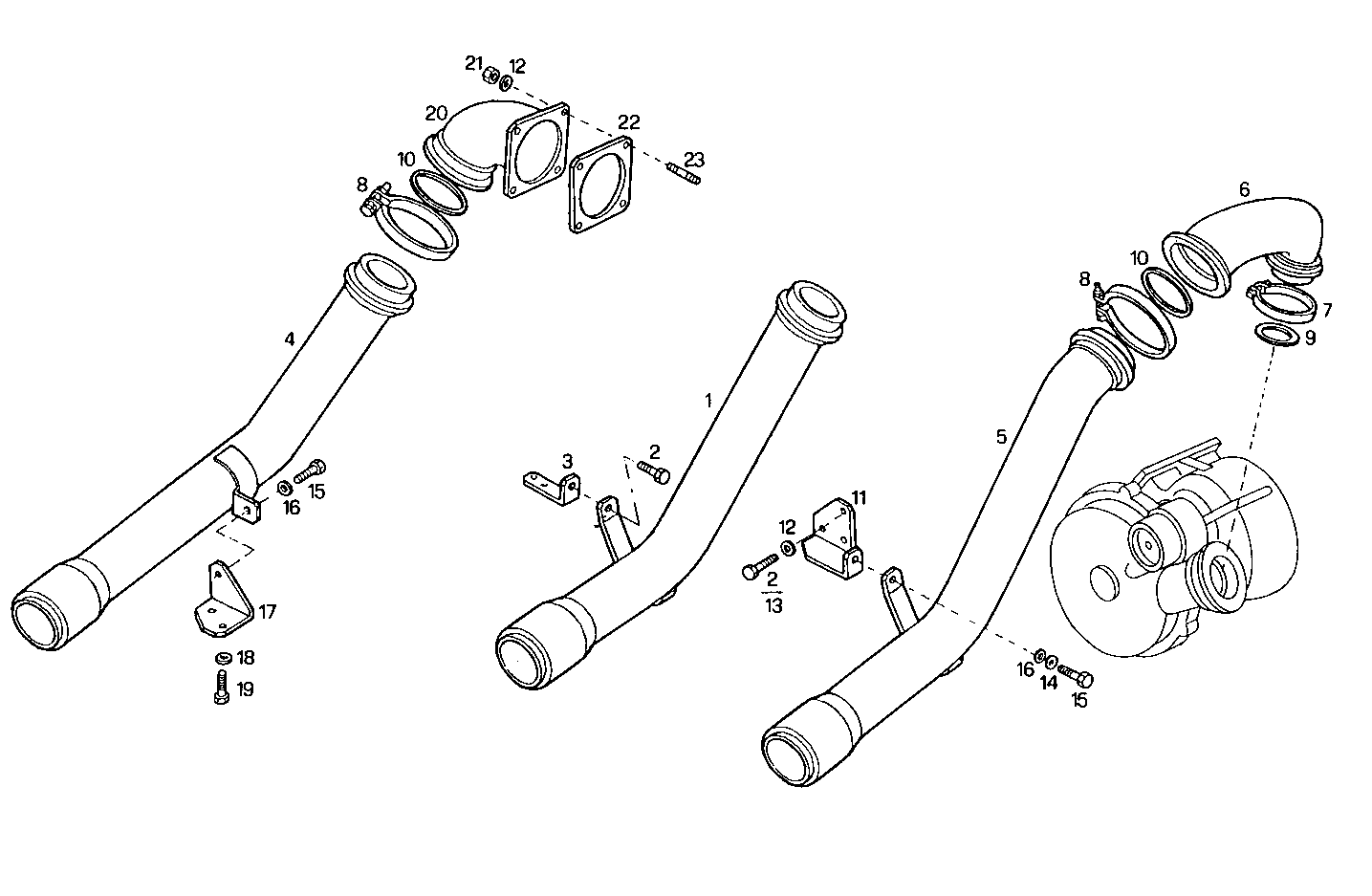

SUPERCHARGING LINES
8360SRC21.00 — 8360SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99443573 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 99443185 | RETAINER RETAINER | 1 | |
| 4 | 99443884 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 5 | 98461425 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 6 | 4853259 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 7 | 4853260 | CLIP CLIP | 1 | |
| 8 | 4853264 | CLIP CLIP | 2 | |
| 9 | 17283981 | O-RING O-RING | 1 | |
| 10 | 17285481 | O-RING O-RING | 2 | |
| 11 | 4862201 | RETAINER RETAINER | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 13 | 16605424 | SCREW SCREW | 1 | |
| 14 | 12646901 | WASHER WASHER | 1 | |
| 15 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 98411795 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 18 | 17090074 | SPRING WASHER SPRING WASHER | 2 | |
| 19 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 98411638 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 21 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 22 | 4853268 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 23 | 13543524 | STUD STUD | 4 |
