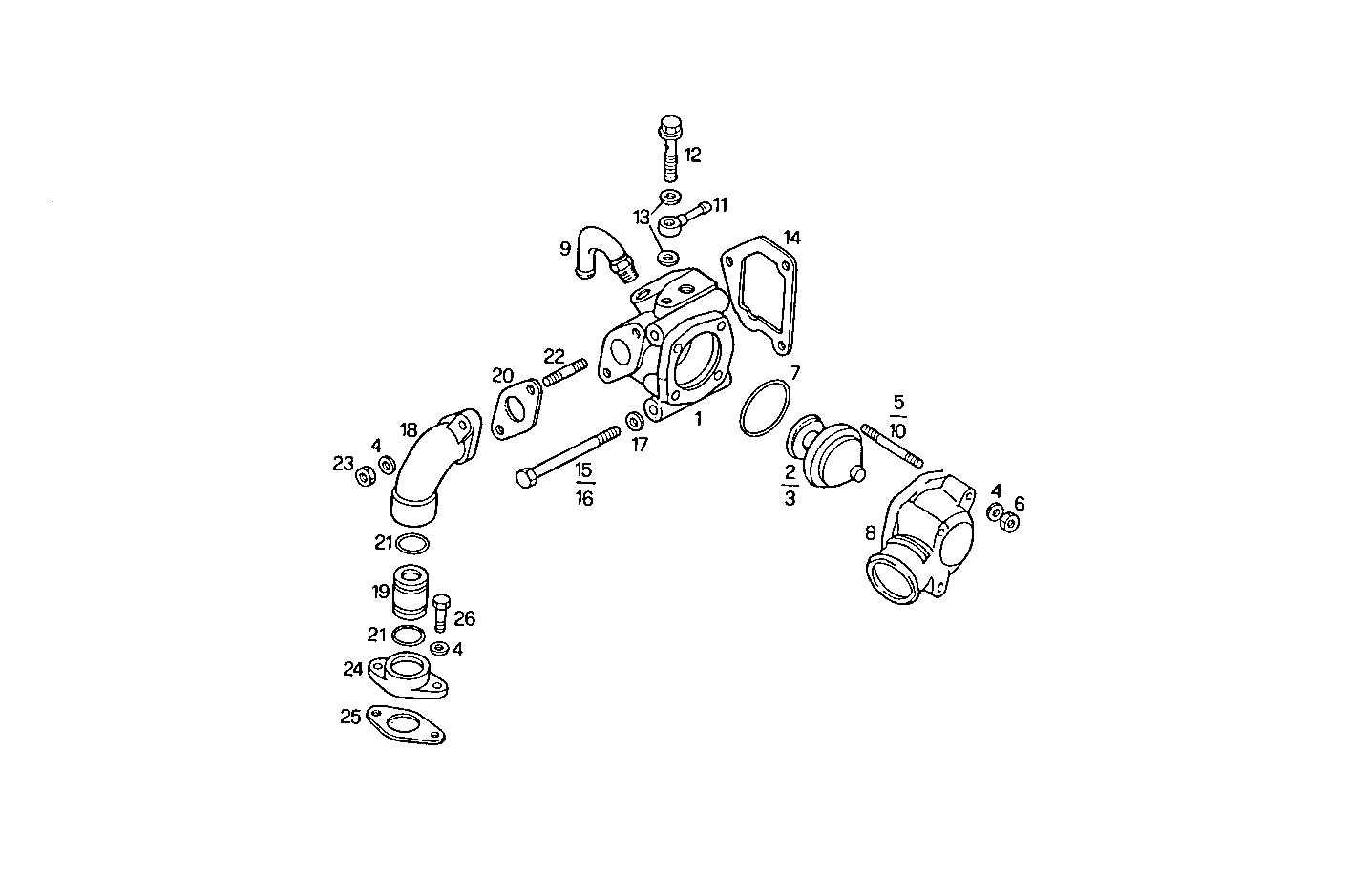

THERMOSTAT
8360SRC22.00 — 8360SRC22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98429292 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 2 | 98424854 | THERMOSTAT THERMOSTAT | 1 | |
| 3 | 98433497 | THERMOSTAT THERMOSTAT | 1 | |
| 4 | 17094914 | WASHER WASHER | 8 | |
| 5 | 16729824 | STUD STUD | 2 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 7 | 98465113 | O-RING O-RING | 1 | |
| 8 | 4853513 | THERM.BODY COVER THERM.BODY COVER | 1 | |
| 9 | 98459946 | PIPE PIPE | 1 | |
| 10 | 16730224 | STUD STUD | 2 | |
| 11 | 98471542 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 12 | 99443063 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 98474305 | WASHER WASHER | 2 | |
| 14 | 4853501 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16606824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 18 | 4853502 | WATER PIPE WATER PIPE | 1 | |
| 19 | 98415265 | PIPE PIPE | 1 | |
| 20 | 4853509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 21 | 98465117 | O-RING O-RING | 2 | |
| 22 | 16729424 | STUD STUD | 2 | |
| 23 | 17152821 | NUT NUT | 2 | |
| 24 | 4853510 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 4853511 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 26 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 |
