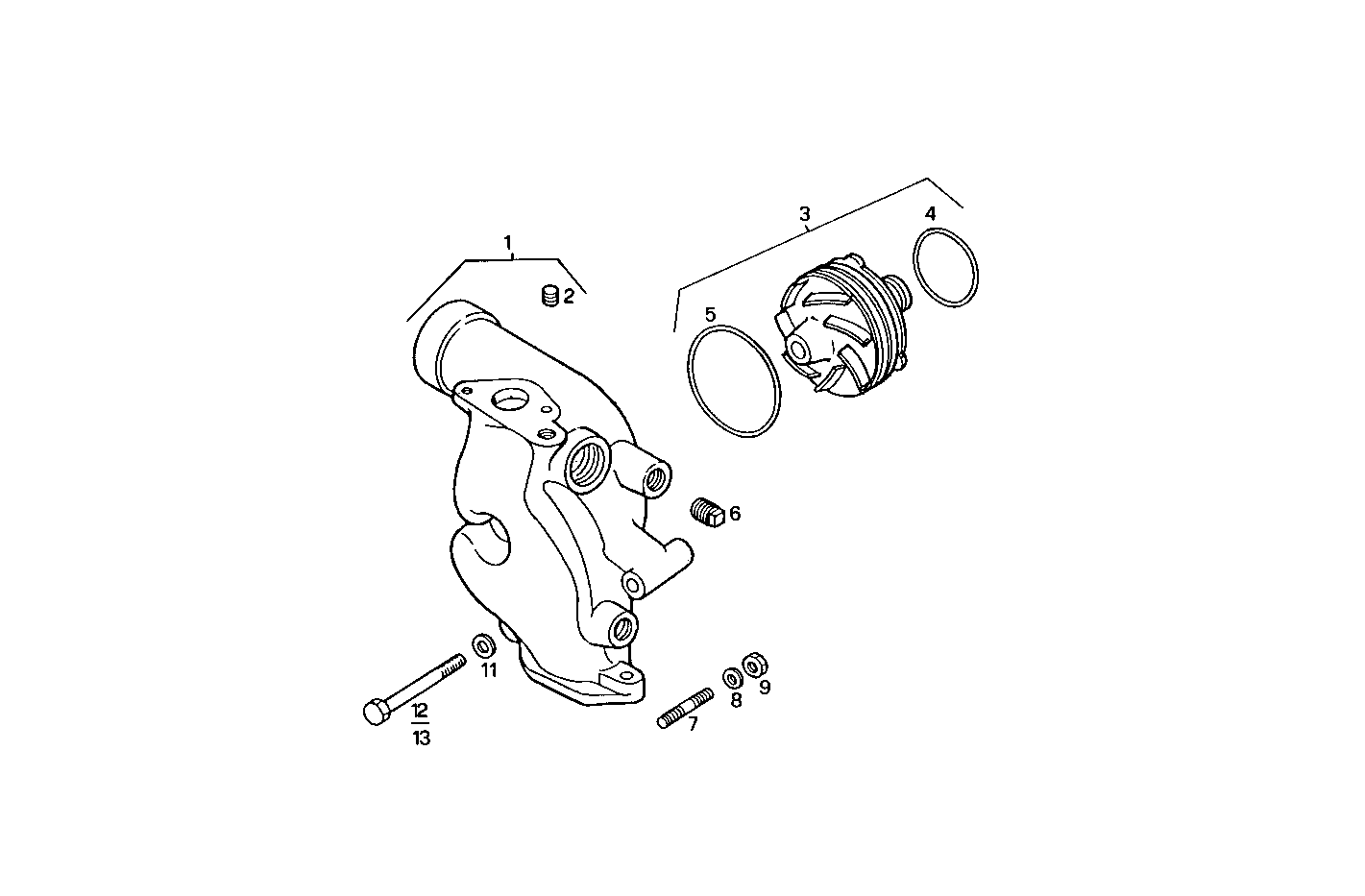

WATER PUMP
8360SRC22.00 — 8360SRC22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 42532083 | WATER PUMP HOUSING WATER PUMP HOUSING | 1 | |
| 2 | 10269501 | LOCK PLUG LOCK PLUG | 1 | |
| 3 | 42532082 | WATER PUMP WATER PUMP | 1 | |
| 4 | 17290081 | O-RING O-RING | 1 | |
| 5 | 98465114 | O-RING O-RING | 1 | |
| 6 | 98479229 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 16729324 | STUD STUD | 3 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 12 | 15972821 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 13 | 15971624 | HEXAGON BOLT HEXAGON BOLT | 1 |
