BENDIX
8360SRC22.10 — 8360SRC22

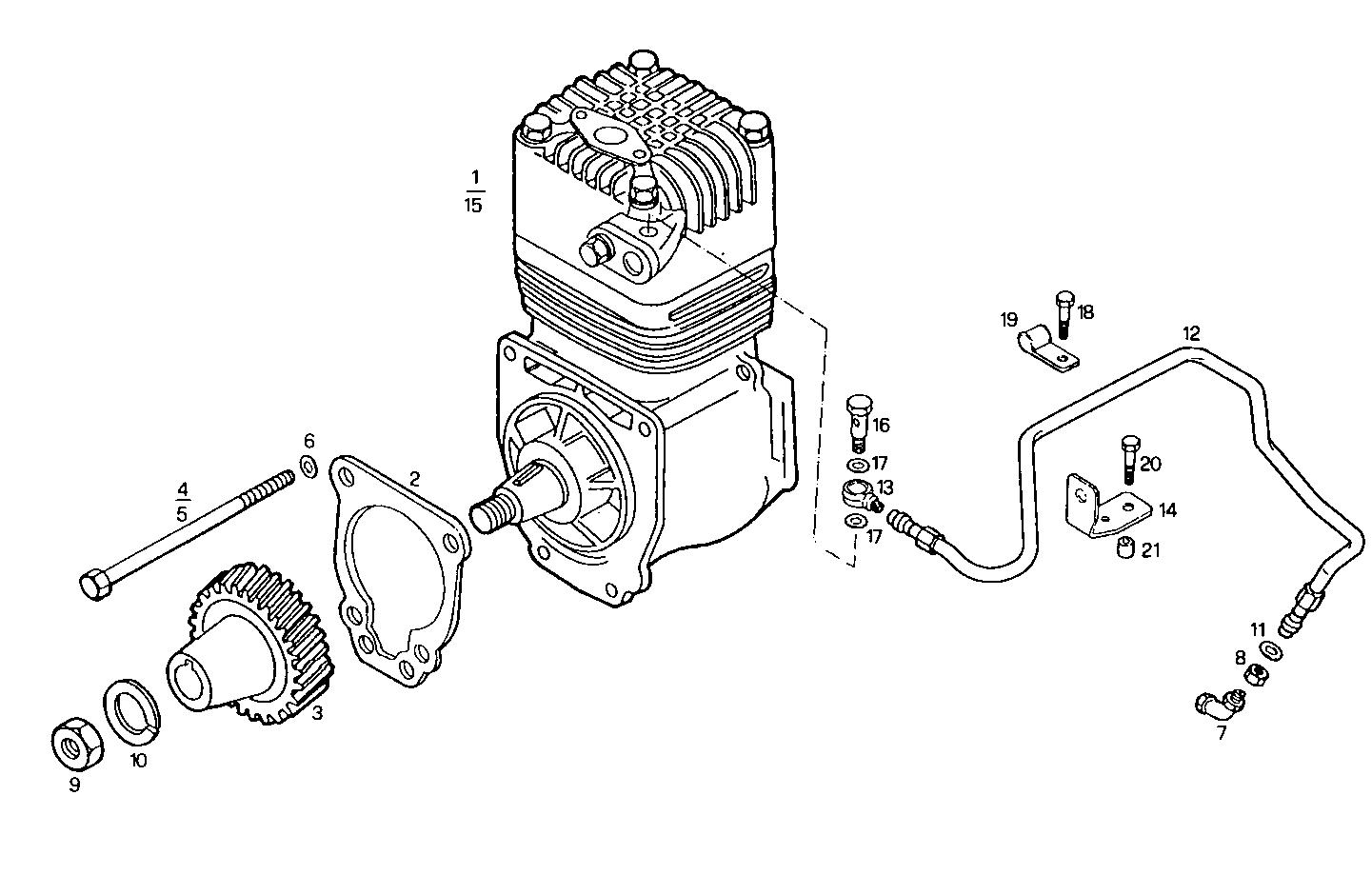

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98465002 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98445187 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 4 | 15970924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 15972024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 11190579 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 16503314 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 8 | 16508611 | NUT NUT | 1 | |
| 9 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 17798774 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 17710374 | WASHER WASHER | 1 | |
| 12 | 98478067 | PIPE PIPE | 1 | |
| 13 | 98454675 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 14 | 98426506 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 15 | 4863994 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 16 | 98454664 | BANJO BOLT BANJO BOLT | 1 | |
| 17 | 16508060 | SEAL GASKET SEAL GASKET | 2 | |
| 18 | 16587024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 38800263 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 20 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 8791565 | SPACER SPACER | 1 |
