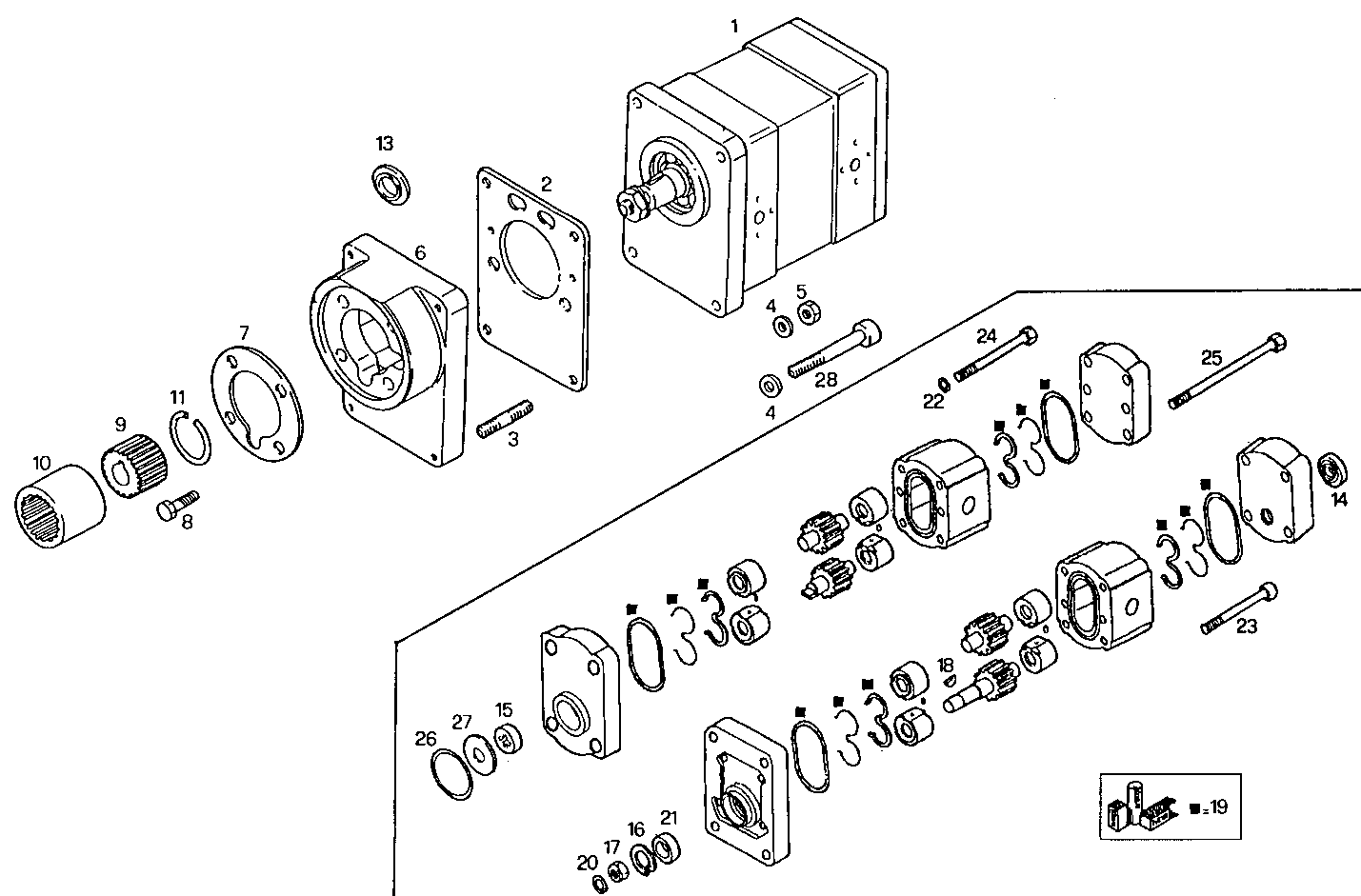

POWER STEERING PUMP
8360SRC22.20 — 8360SRC22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98450345 | OIL PUMP-STEERING OIL PUMP-STEERING | 1 | |
| 2 | 98494472 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16729530 | STUD STUD | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 98480319 | SUPPORT SUPPORT | 1 | |
| 7 | 4853928 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 9 | 4853929 | HUB HUB | 1 | |
| 10 | 4853930 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 11 | 17085376 | CIRCLIP CIRCLIP | 1 | |
| 13 | 4609538 | CENTERING RING CENTERING RING | 1 | |
| 14 | 1300154 | SHAFT SEAL SHAFT SEAL | 1 | |
| 15 | 7984002 | BUSH BUSH | 1 | |
| 16 | 7984179 | CIRCLIP CIRCLIP | 1 | |
| 17 | 7984181 | NUT NUT | 1 | |
| 18 | 10205720 | KEY KEY | 1 | |
| 19 | 42481597 | KIT-HYDROST.PUMP KIT-HYDROST.PUMP | 1 | |
| 20 | 79058503 | WASHER WASHER | 1 | |
| 21 | 93160143 | RADIAL SEAL RADIAL SEAL | 1 | |
| 22 | 93160897 | SPRING WASHER SPRING WASHER | 2 | |
| 23 | 93192821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 93192822 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 25 | 93192823 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 26 | 93192824 | O-RING O-RING | 1 | |
| 27 | 93192825 | WASHER WASHER | 1 | |
| 28 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 |
