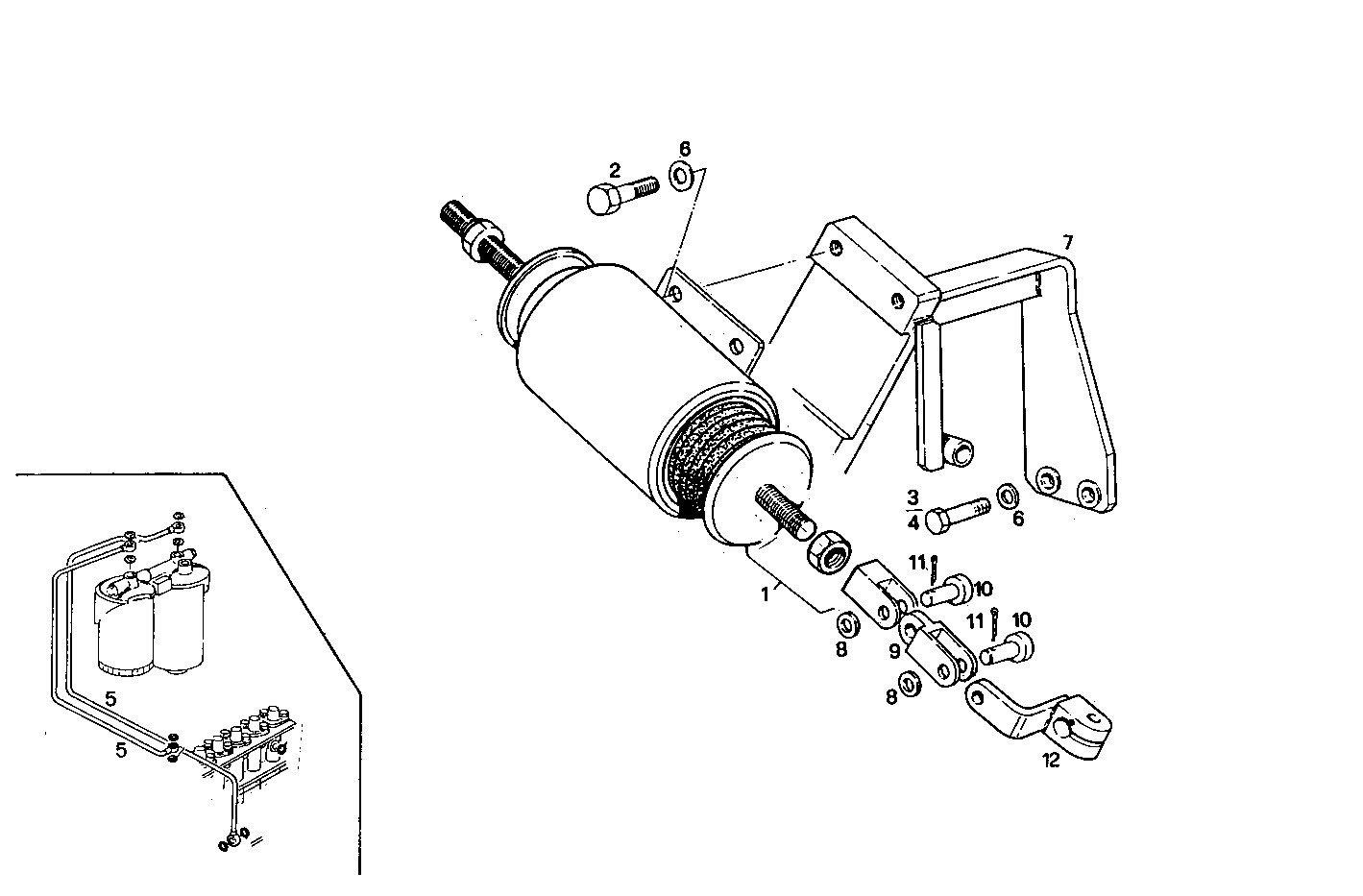

STOP SOLENOID - ENERGIZE TO RUN - 24V
8360SRC22.20 — 8360SRC22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112462 | SOLENOID SOLENOID | 1 | |
| 2 | 16043624 | SCREW SCREW | 4 | |
| 3 | 16689624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 16603424 | SCREW SCREW | 2 | |
| 5 | 8016444 | FUEL LINE FUEL LINE | 2 | |
| 6 | 17088474 | WASHER WASHER | 7 | |
| 7 | 8006296 | SUPPORT SUPPORT | 1 | |
| 8 | 17094504 | WASHER WASHER | 2 | |
| 9 | 8108833 | CLEVIS CLEVIS | 1 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 12 | 8110573 | LEVER LEVER | 1 |
