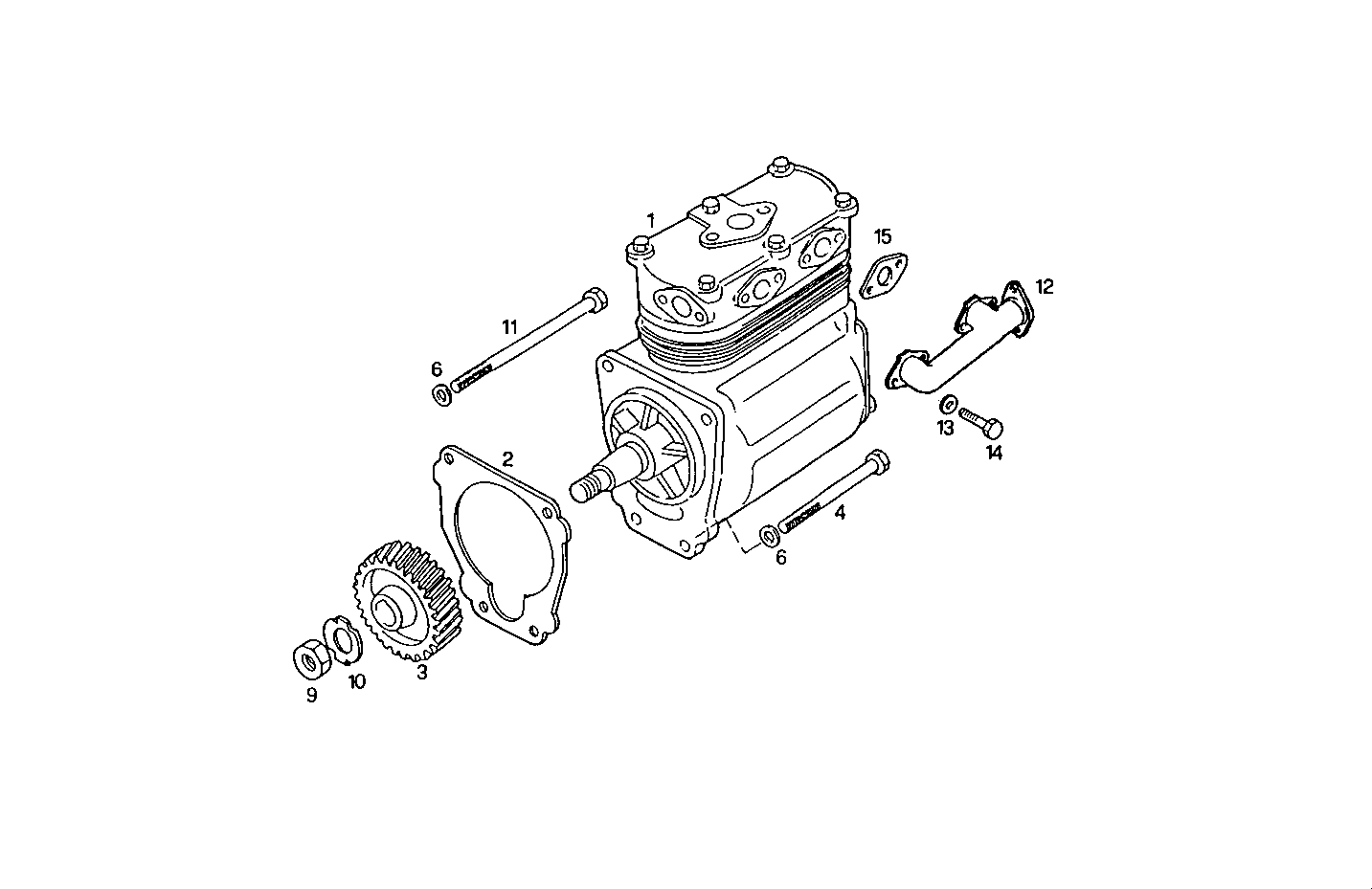

AIR COMPRESSOR
8360SRC46.10A007 — 8360SRC46
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4860565 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98445187 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 4 | 15970924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 11190579 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 17798774 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 4649239 | SCREW SCREW | 2 | |
| 12 | 4646127 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 13 | 17089674 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 16603824 | SCREW SCREW | 4 | |
| 15 | 4863497 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 |
