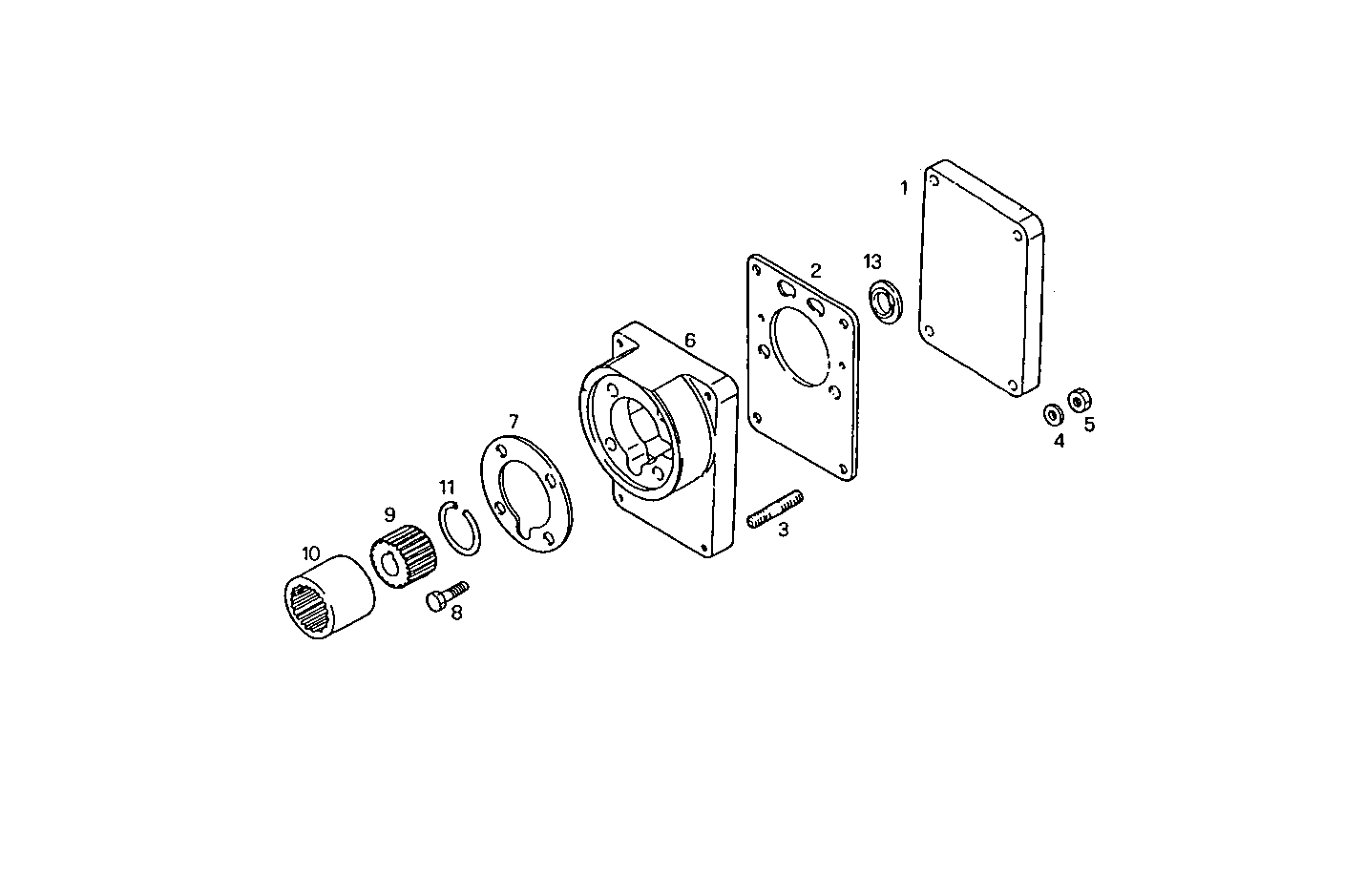

POWER STEERING PUMP
8360SRC46.10A007 — 8360SRC46
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 61585907 | COVER COVER | 1 | |
| 2 | 98494472 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16729530 | STUD STUD | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 98480319 | SUPPORT SUPPORT | 1 | |
| 7 | 4853928 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 9 | 4853929 | HUB HUB | 1 | |
| 10 | 4853930 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 11 | 17085376 | CIRCLIP CIRCLIP | 1 | |
| 13 | 4609538 | CENTERING RING CENTERING RING | 1 |
