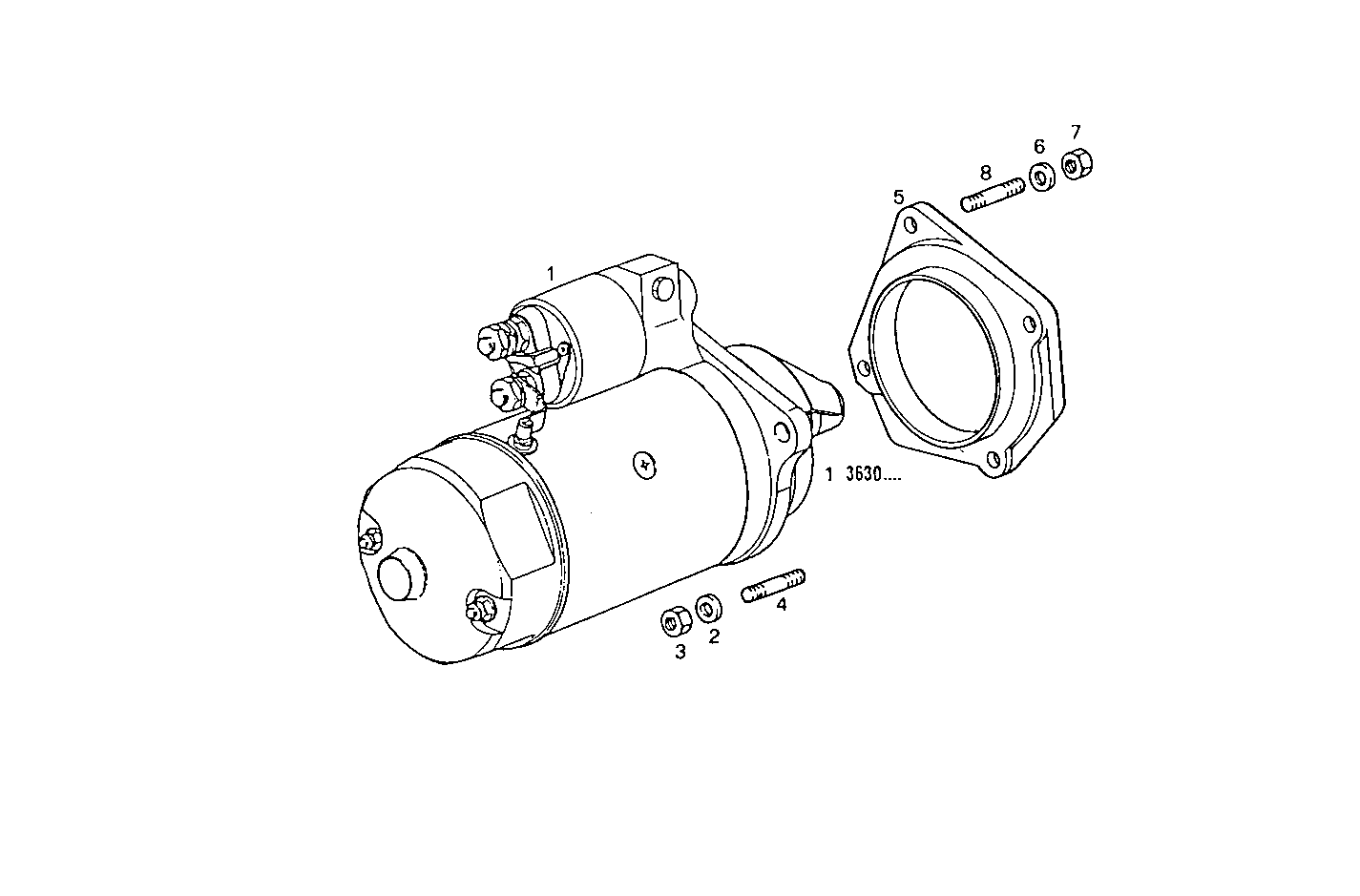

STARTER MOTOR
8360SRC46.10A007 — 8360SRC46
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4786023 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 3 | 12164711 | HEXAGON NUT HEXAGON NUT | 3 | |
| 4 | 13546224 | STUD STUD | 3 | |
| 5 | 4860391 | SPACER SPACER | 1 | |
| 6 | 17095314 | WASHER WASHER | 3 | |
| 7 | 16101511 | HEXAGON NUT HEXAGON NUT | 3 | |
| 8 | 13530224 | STUD STUD | 3 |
