STOP SOLENOID - ENERGIZE TO STOP - 24V
8360SRC46.10A007 — 8360SRC46

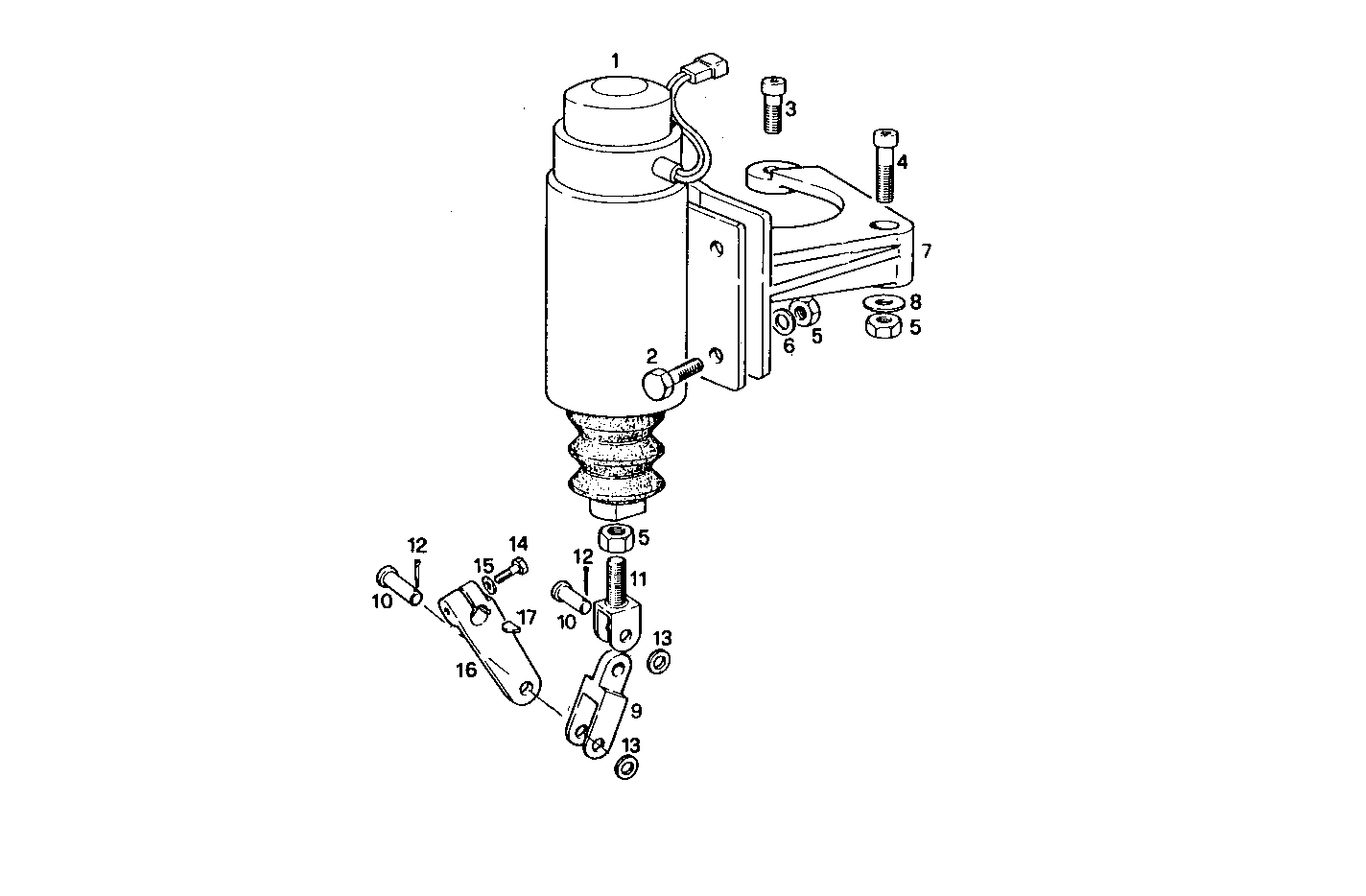

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105421 | SOLENOID SOLENOID | 1 | |
| 2 | 10900221 | SCREW SCREW | 4 | |
| 3 | 14305521 | SCREW SCREW | 2 | |
| 4 | 14305421 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 5 | 15896211 | HEXAGON NUT HEXAGON NUT | 8 | |
| 6 | 11194779 | WASHER WASHER | 4 | |
| 7 | 8109114 | SUPPORT SUPPORT | 1 | |
| 8 | 10581571 | WASHER WASHER | 1 | |
| 9 | 8108833 | CLEVIS CLEVIS | 1 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 8108834 | CLEVIS CLEVIS | 1 | |
| 12 | 10734101 | SPLIT PIN SPLIT PIN | 2 | |
| 13 | 14497801 | WASHER WASHER | 2 | |
| 14 | 10977821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 10571471 | WASHER WASHER | 1 | |
| 16 | 8006297 | LEVER LEVER | 1 | |
| 17 | 772485 | KEY KEY | 1 |
