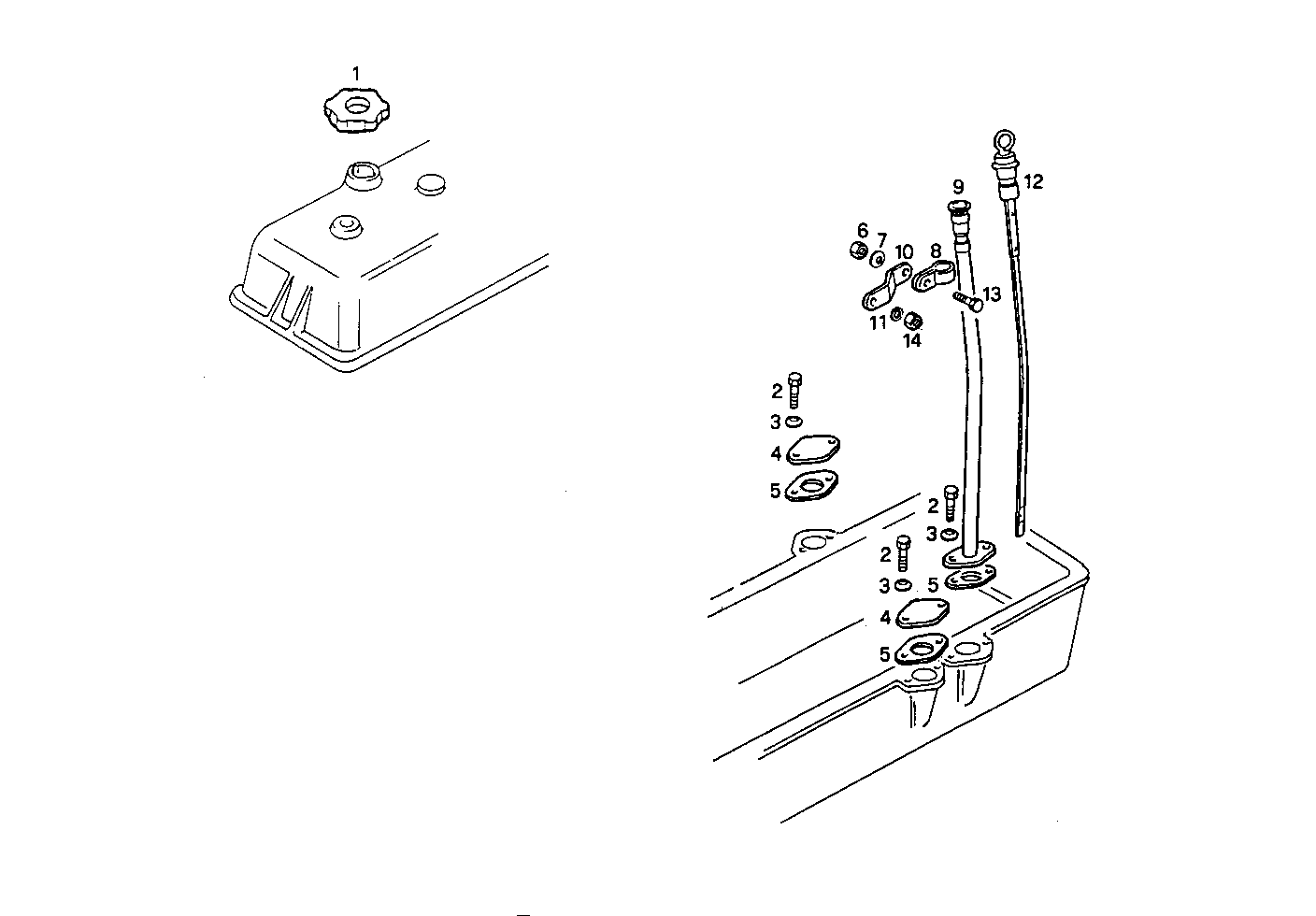

OIL DIPSTICK
8361i000.00 — 8361i000
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 2 | |
| 2 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 4 | 4726341 | COVER COVER | 2 | |
| 5 | 98412099 | GASKET GASKET | 3 | |
| 6 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17088474 | WASHER WASHER | 1 | |
| 8 | 10418400 | CLIP CLIP | 1 | |
| 9 | 4735919 | ROD GUIDE ROD GUIDE | 1 | |
| 10 | 4735924 | RETAINER RETAINER | 1 | |
| 11 | 17090274 | WASHER WASHER | 1 | |
| 12 | 4735922 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 13 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 4934617 | NUT NUT | 1 |
