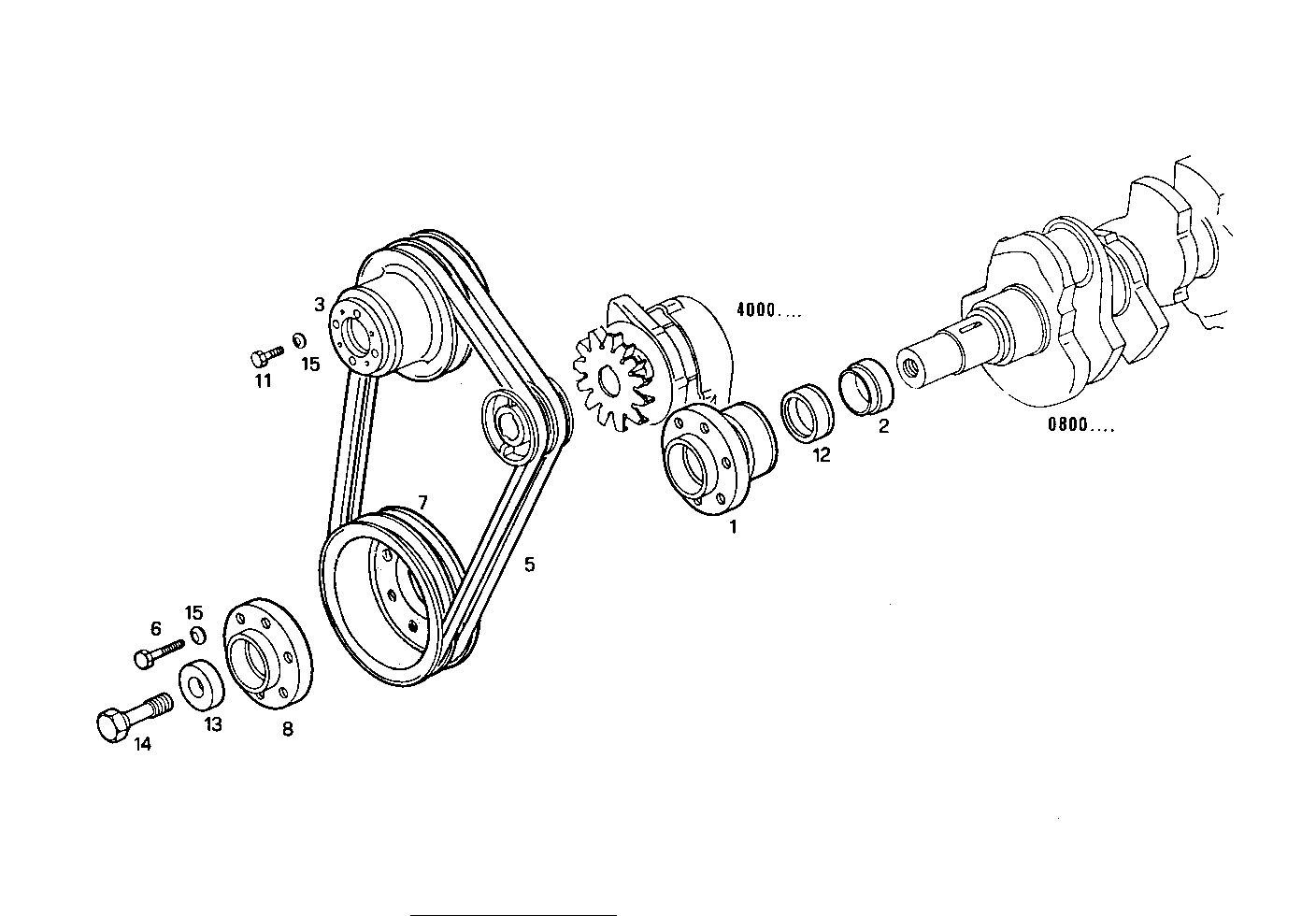

PULLEYS AND BELTS
8361i000.00 — 8361i000
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4711786 | DAMPER HUB DAMPER HUB | 1 | |
| 2 | 4711787 | BUSH BUSH | 1 | |
| 3 | 4733011 | PULLEY PULLEY | 1 | |
| 5 | 4720512 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 6 | 11234731 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 7 | 4719780 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 8 | 4725248 | SPACING BAR SPACING BAR | 1 | |
| 11 | 11306933 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 4811426 | BUSH BUSH | 2 | |
| 13 | 8823773 | WASHER WASHER | 1 | |
| 14 | 8823774 | SCREW SCREW | 1 | |
| 15 | 17090274 | WASHER WASHER | 10 |
