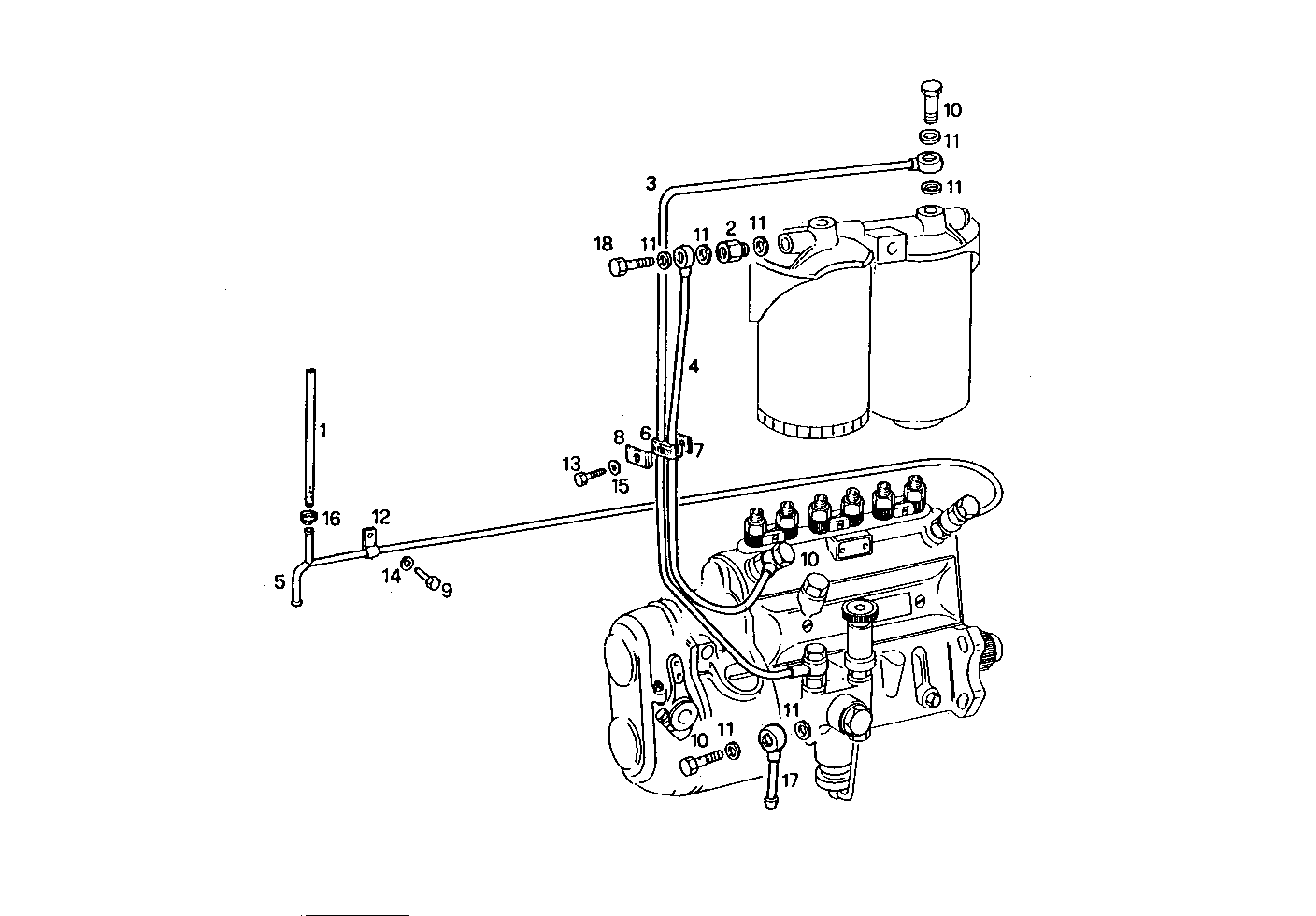

FUEL LINES
8361i001.00 — 8361i001
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4934213 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 2 | 4728410 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 4730094 | FUEL LINE FUEL LINE | 1 | |
| 4 | 8012804 | FUEL LINE FUEL LINE | 1 | |
| 5 | 4732858 | FUEL LINE FUEL LINE | 1 | |
| 6 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 7 | 4871773 | RETAINER RETAINER | 1 | |
| 8 | 4871774 | RETAINER RETAINER | 1 | |
| 9 | 16043124 | SCREW SCREW | 1 | |
| 10 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 5 | |
| 11 | 4858608 | SEAL GASKET SEAL GASKET | 11 | |
| 12 | 10450090 | PIPE CLIP PIPE CLIP | 1 | |
| 13 | 16603824 | SCREW SCREW | 1 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 15 | 17088474 | WASHER WASHER | 1 | |
| 16 | 18053992 | CLIP CLIP | 2 | |
| 17 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 |
