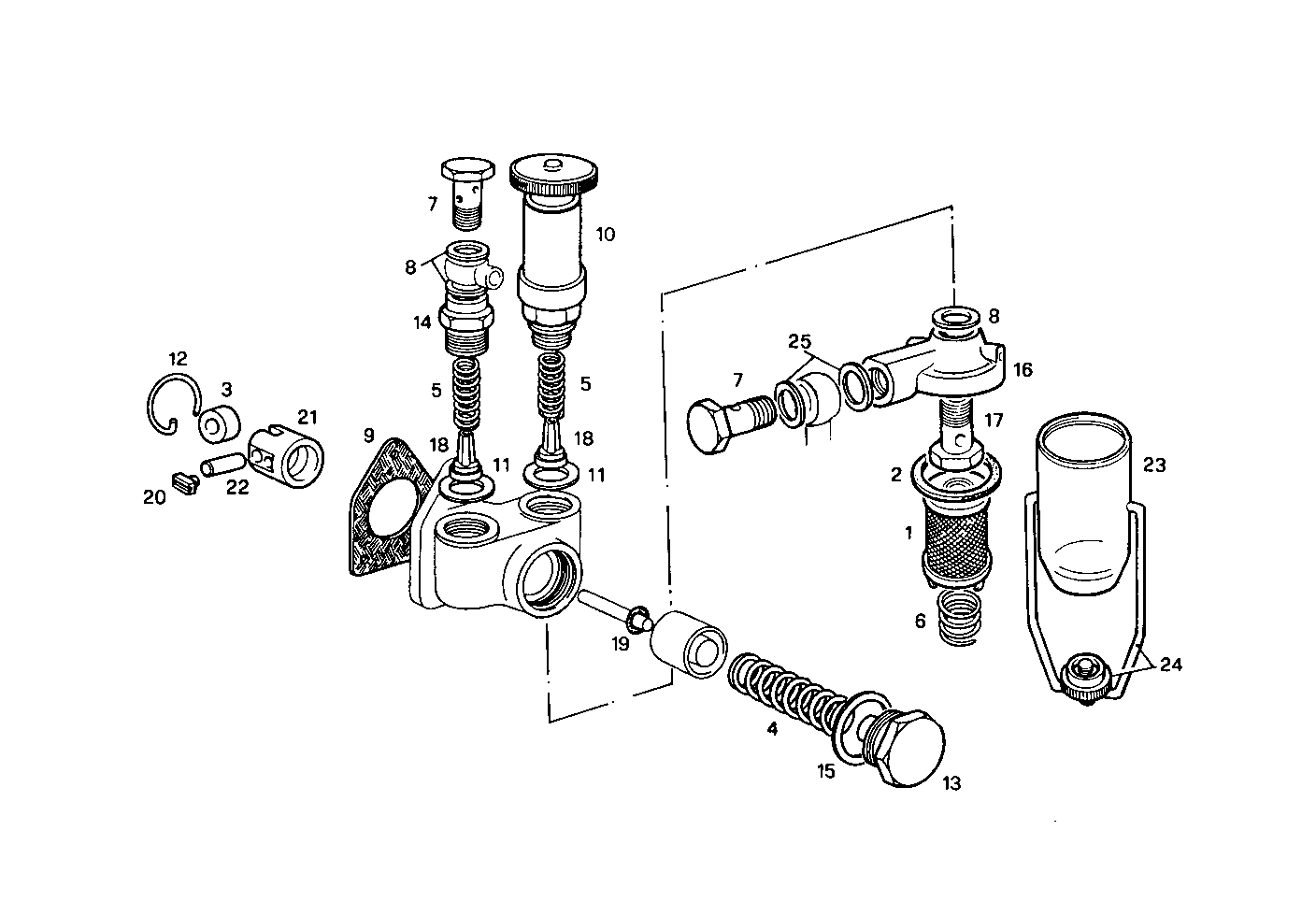

FUEL PUMP (COMPONENTS)
8361i001.00 — 8361i001
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 705603 | FUEL FILTER FUEL FILTER | 1 | |
| 2 | 705631 | WASHER WASHER | 1 | |
| 3 | 773439 | ROLLER ROLLER | 1 | |
| 4 | 705636 | SPRING SPRING | 1 | |
| 5 | 705637 | SPRING SPRING | 1 | |
| 6 | 705639 | SPRING SPRING | 1 | |
| 7 | 705737 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 746152 | GASKET GASKET | 6 | |
| 9 | 746153 | GASKET GASKET | 1 | |
| 10 | 746189 | FUEL PUMP FUEL PUMP | 1 | |
| 11 | 746214 | GASKET GASKET | 2 | |
| 12 | 751032 | O-RING O-RING | 1 | |
| 13 | 753762 | PLUG PLUG | 1 | |
| 14 | 760239 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 760241 | GASKET GASKET | 1 | |
| 16 | 763152 | COVER COVER | 1 | |
| 17 | 763153 | SCREW SCREW | 1 | |
| 18 | 763178 | VALVE VALVE | 2 | |
| 19 | 764120 | GASKET GASKET | 1 | |
| 20 | 9930059 | ROLLER TAPPET ROLLER TAPPET | 2 | |
| 21 | 9930060 | TAPPET TAPPET | 1 | |
| 22 | 9930444 | PIN PIN | 1 | |
| 23 | 4934458 | PRECLEANER PRECLEANER | 1 | |
| 24 | 766903 | RETAINER RETAINER | 1 | |
| 25 | 4858608 | SEAL GASKET SEAL GASKET | 2 |
