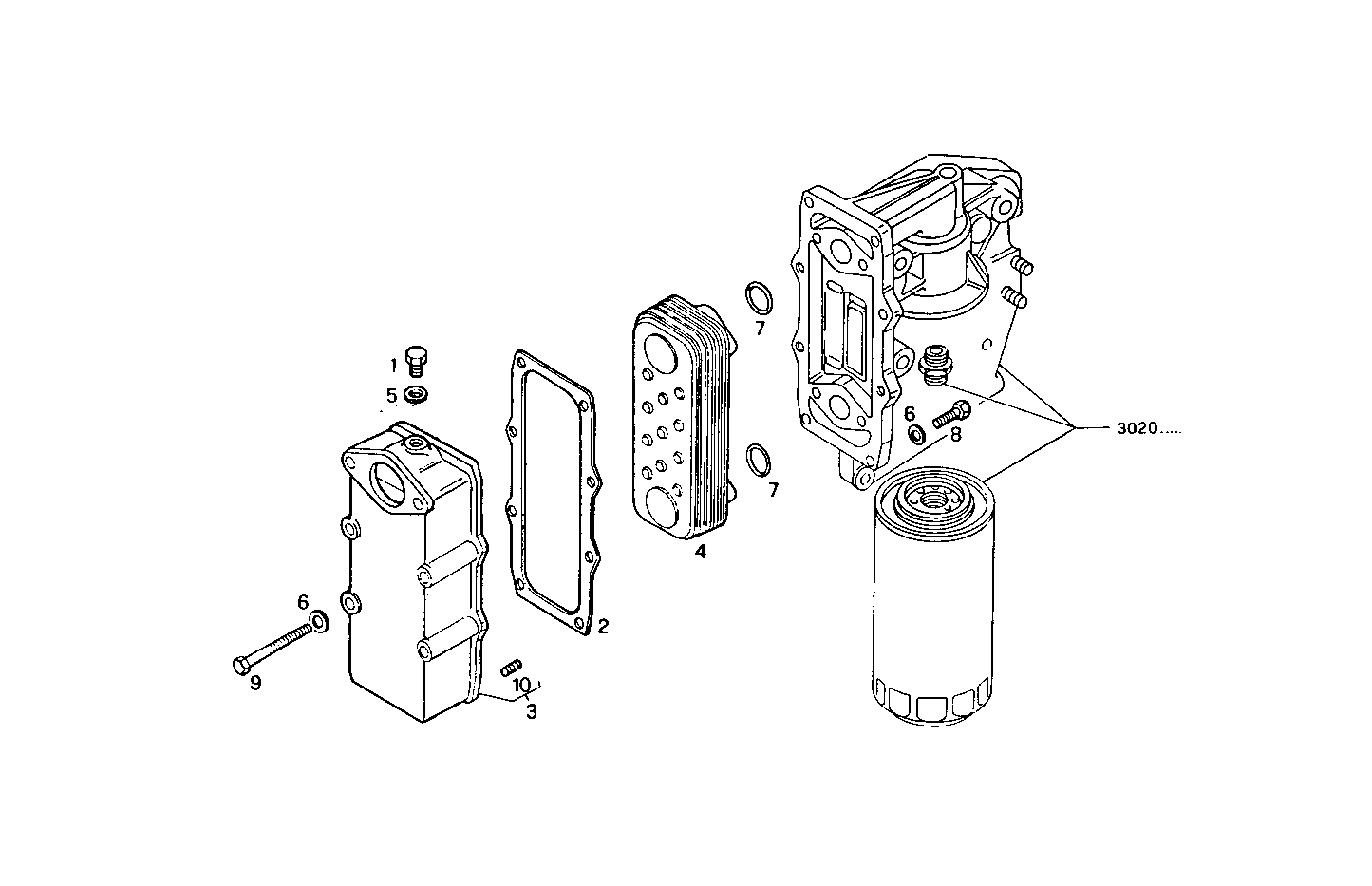

OIL - WATER HEAT EXCHANGER
8361i001.00 — 8361i001
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10304911 | THREADED PLUG THREADED PLUG | 1 | |
| 2 | 98412166 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4779739 | COVER COVER | 1 | |
| 4 | 4738716 | OIL COOLER OIL COOLER | 1 | |
| 5 | 10257460 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 11193979 | SPRING WASHER SPRING WASHER | 10 | |
| 7 | 98465102 | O-RING O-RING | 2 | |
| 8 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 16045021 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 10 | 13582271 | THREADED INSERT THREADED INSERT | 2 |
