AIR CLEANER
8361Si10.00 — 8361SI10

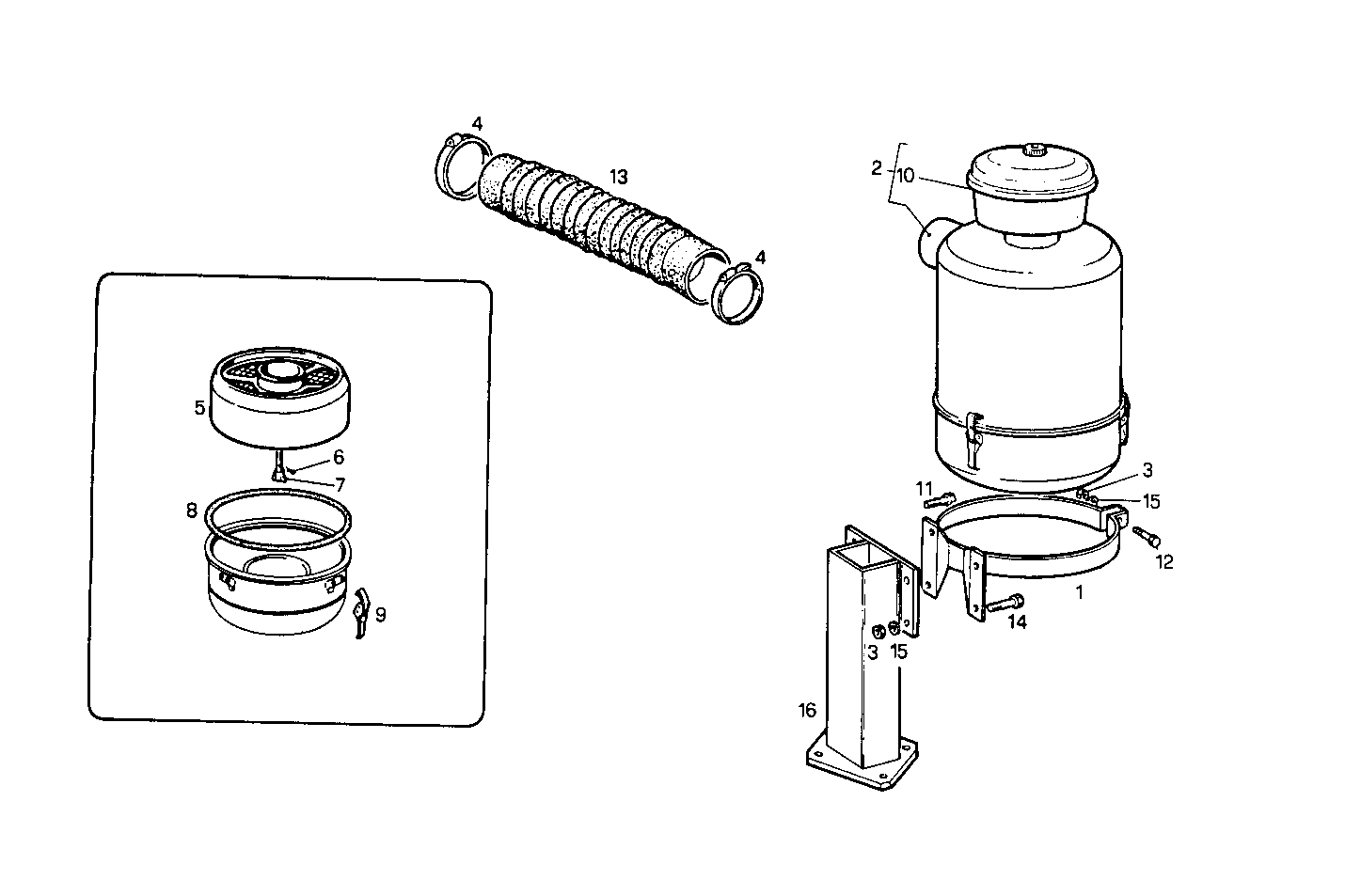

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4642957 | CLIP CLIP | 1 | |
| 2 | 4934159 | AIR CLEANER AIR CLEANER | 1 | |
| 3 | 12164711 | HEXAGON NUT HEXAGON NUT | 6 | |
| 4 | 12174590 | CLIP CLIP | 2 | |
| 5 | 4960097 | STARTER SWITCH STARTER SWITCH | 2 | |
| 6 | 10734201 | SPLIT PIN SPLIT PIN | 2 | |
| 7 | 590275 | SCREW SCREW | 2 | |
| 8 | 553122 | WASHER WASHER | 1 | |
| 9 | 553662 | HOOK HOOK | 6 | |
| 10 | 4931519 | PREFILTER PREFILTER | 2 | |
| 11 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 8106564 | HOSE HOSE | 1 | |
| 14 | 11306921 | SCREW SCREW | 2 | |
| 15 | 11198371 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 8100156 | SUPPORT SUPPORT | 1 |
