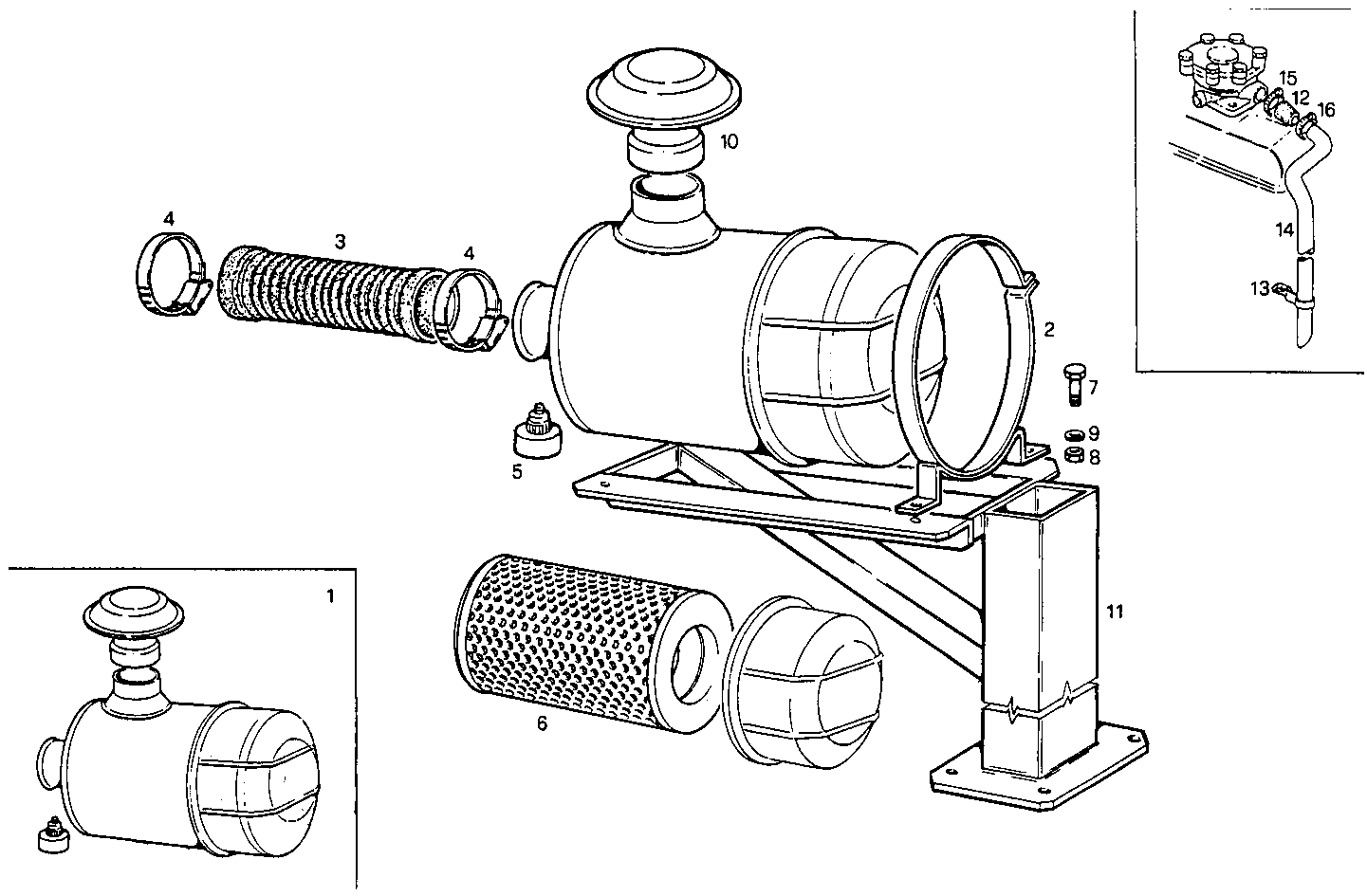

DRY AIR CLEANER
8361Si10.00 — 8361SI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8106913 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8106400 | CLIP CLIP | 2 | |
| 3 | 4616297 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 12174590 | CLIP CLIP | 2 | |
| 5 | 4758003 | AIR PRESSURE GAUGE AIR PRESSURE GAUGE | 1 | |
| 6 | 8092441 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 7 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 11190571 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8106398 | COVER COVER | 1 | |
| 11 | 8108446 | SUPPORT SUPPORT | 1 | |
| 12 | 8015523 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 4735644 | RETAINER RETAINER | 1 | |
| 14 | 8105979 | BREATHER PIPE BREATHER PIPE | 1 | |
| 15 | 17764791 | CLIP CLIP | 1 | |
| 16 | 17764691 | CLIP CLIP | 1 |
