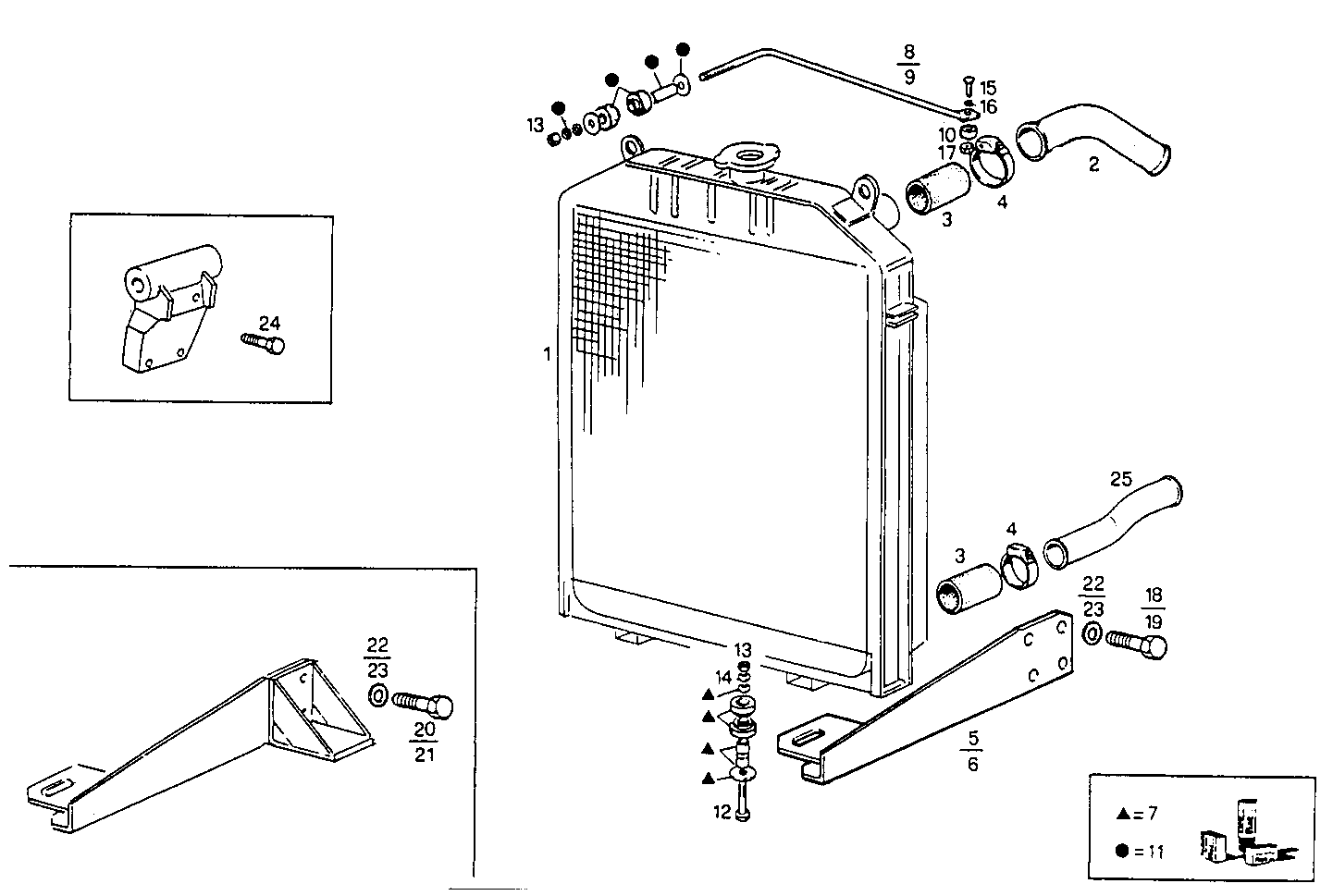

OVERSIZE RADIATOR
8361Si10.00 — 8361SI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113880 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8107675 | WATER PIPE WATER PIPE | 1 | |
| 3 | 10140087 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 4 | 12174790 | CLIP CLIP | 8 | |
| 5 | 8107526 | RETAINER RETAINER | 1 | |
| 6 | 8107527 | RETAINER RETAINER | 1 | |
| 7 | 8090412 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 8 | 8009095 | TIE ROD TIE ROD | 1 | |
| 9 | 8009096 | TIE ROD TIE ROD | 1 | |
| 10 | 8101556 | SPACING BAR SPACING BAR | 2 | |
| 11 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 12 | 15541321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 16101511 | HEXAGON NUT HEXAGON NUT | 6 | |
| 14 | 11198671 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 11198371 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 18 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 19 | 15540521 | SCREW SCREW | 4 | |
| 20 | 15840521 | SCREW SCREW | 4 | |
| 21 | 15540621 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 11194271 | WASHER WASHER | 4 | |
| 23 | 11198671 | SPRING WASHER SPRING WASHER | 4 | |
| 24 | 8109691 | STUD STUD | 1 | |
| 25 | 8107674 | WATER PIPE WATER PIPE | 1 |
