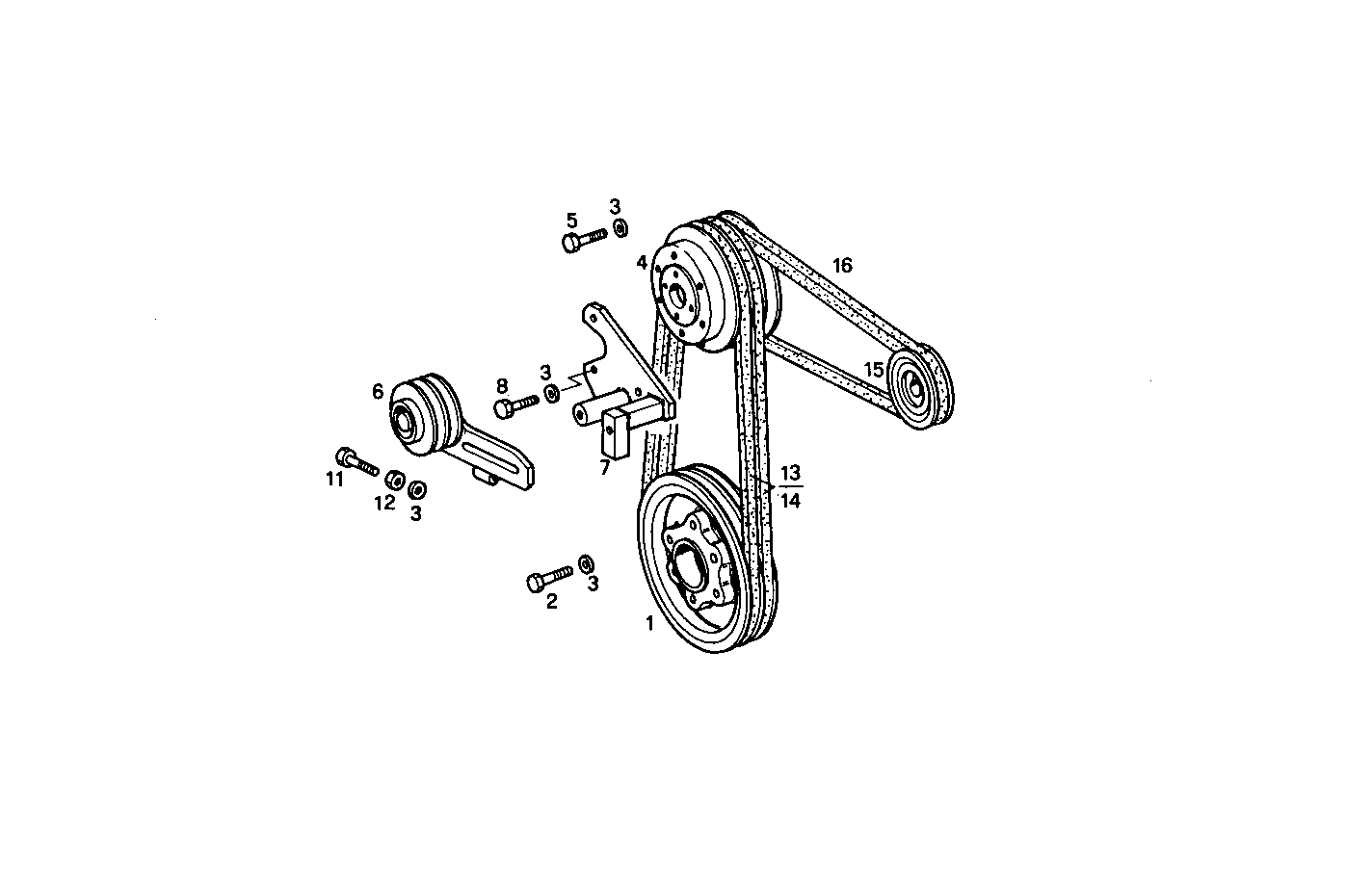

PREARRANGEMENT BELTS DOUBLE DRIVE
8361Si10.00 — 8361SI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112730 | PULLEY PULLEY | 1 | |
| 2 | 15888831 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 3 | 11198379 | SPRING WASHER SPRING WASHER | 14 | |
| 4 | 8112729 | PULLEY PULLEY | 1 | |
| 5 | 11306931 | SCREW SCREW | 4 | |
| 6 | 8112733 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 8112731 | SUPPORT SUPPORT | 1 | |
| 8 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 15231721 | SCREW SCREW | 1 | |
| 12 | 15164711 | NUT NUT | 1 | |
| 13 | 4739632 | V-BELT V-BELT | 2 | |
| 14 | 4763649 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 15 | 8112961 | PULLEY PULLEY | 1 | |
| 16 | 4830442 | V-BELT V-BELT | 1 |
