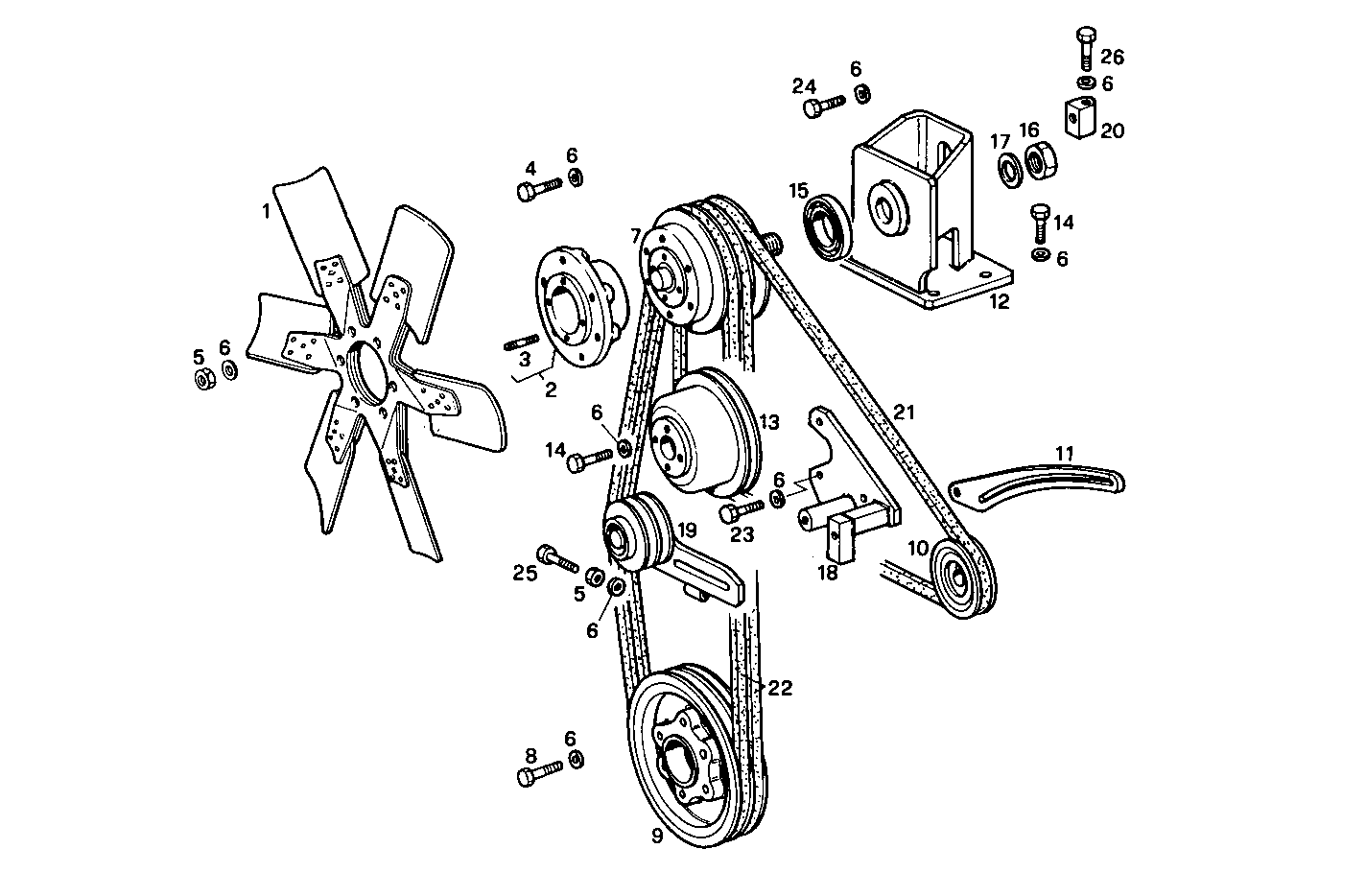

PUSHER FAN
8361Si10.00 — 8361SI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 79003152 | FAN FAN | 1 | |
| 2 | 4936529 | HUB HUB | 1 | |
| 3 | 13546324 | STUD STUD | 6 | |
| 4 | 15971631 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 12164711 | HEXAGON NUT HEXAGON NUT | 7 | |
| 6 | 11198371 | SPRING WASHER SPRING WASHER | 32 | |
| 7 | 8007613 | PULLEY PULLEY | 1 | |
| 8 | 15888831 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 9 | 8112730 | PULLEY PULLEY | 1 | |
| 10 | 8112961 | PULLEY PULLEY | 1 | |
| 11 | 4626125 | RETAINER RETAINER | 1 | |
| 12 | 8007596 | SUPPORT SUPPORT | 1 | |
| 13 | 8113709 | PULLEY PULLEY | 1 | |
| 14 | 11306931 | SCREW SCREW | 8 | |
| 15 | 4772231 | SPACER RING SPACER RING | 1 | |
| 16 | 12164421 | NUT NUT | 1 | |
| 17 | 11200579 | WASHER WASHER | 1 | |
| 18 | 8112731 | SUPPORT SUPPORT | 1 | |
| 19 | 8112733 | BELT TENSIONER BELT TENSIONER | 1 | |
| 20 | 4723225 | CHOCK CHOCK | 1 | |
| 21 | 8110511 | V-BELT V-BELT | 1 | |
| 22 | 8005523 | V-BELT V-BELT | 1 | |
| 23 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 24 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 25 | 15231721 | SCREW SCREW | 1 | |
| 26 | 11343731 | SCREW SCREW | 1 |
