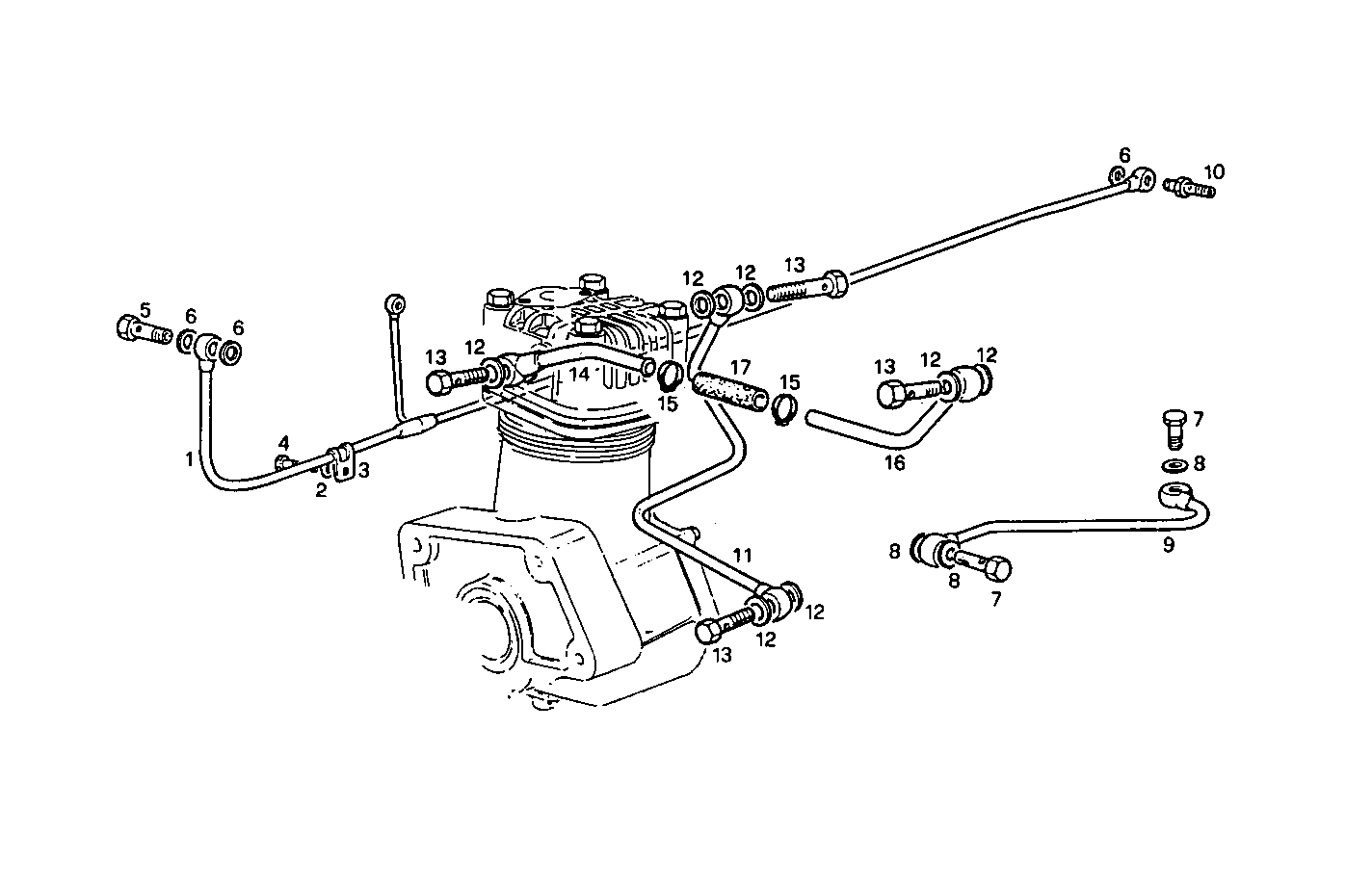

AIR COMPRESSOR
8361Si10.00A029 — 8361SI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012380 | OIL LINE OIL LINE | 1 | |
| 2 | 11197771 | SPRING WASHER SPRING WASHER | 1 | |
| 3 | 10450090 | PIPE CLIP PIPE CLIP | 1 | |
| 4 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 6 | 4858607 | WASHER WASHER | 4 | |
| 7 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 8 | 4858606 | GASKET GASKET | 4 | |
| 9 | 4731129 | OIL LINE OIL LINE | 1 | |
| 10 | 4930504 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 11 | 4715861 | WATER PIPE WATER PIPE | 1 | |
| 12 | 4858609 | WASHER WASHER | 8 | |
| 13 | 4864084 | BANJO BOLT BANJO BOLT | 4 | |
| 14 | 8011718 | WATER PIPE WATER PIPE | 1 | |
| 15 | 12179590 | CLIP CLIP | 2 | |
| 16 | 8011717 | WATER PIPE WATER PIPE | 1 | |
| 17 | 12074286 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
