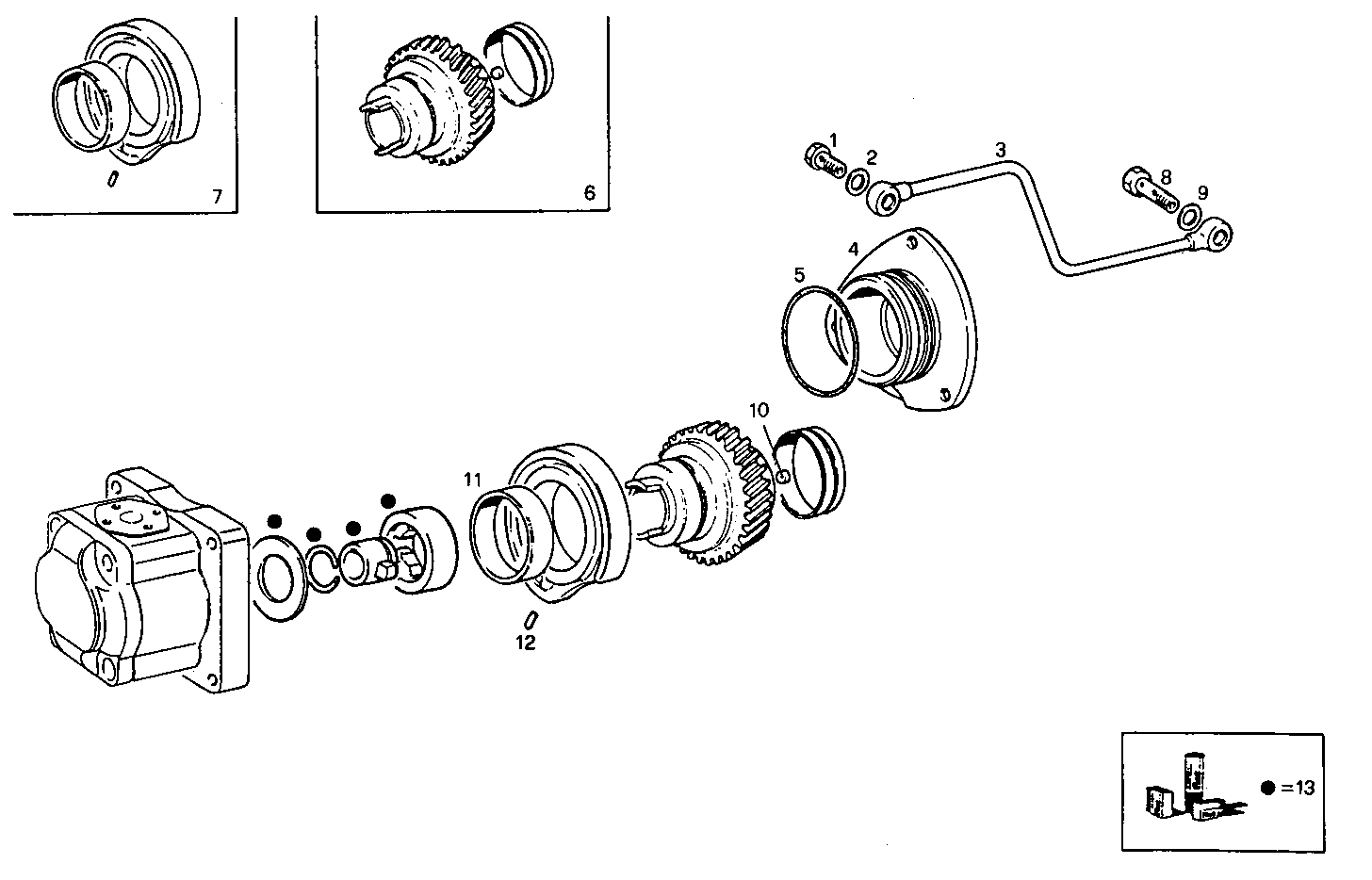

ARRANGED FOR HYDRAULIC PUMP
8361SI10.00A801 — 8361SI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 2 | 4858606 | GASKET GASKET | 2 | |
| 3 | 4826379 | OIL LINE OIL LINE | 1 | |
| 4 | 4738944 | COVER COVER | 1 | |
| 5 | 14460181 | O-RING O-RING | 1 | |
| 6 | 4708217 | GEAR GEAR | 1 | |
| 7 | 4708219 | SUPPORT SUPPORT | 1 | |
| 8 | 4930504 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 10298460 | SEAL GASKET SEAL GASKET | 3 | |
| 10 | 14327101 | LOCK PLUG LOCK PLUG | 1 | |
| 11 | 4692781 | CENTERING BUSH CENTERING BUSH | 1 | |
| 12 | 10837610 | DOWEL PIN DOWEL PIN | 1 | |
| 13 | 8090343 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 |
