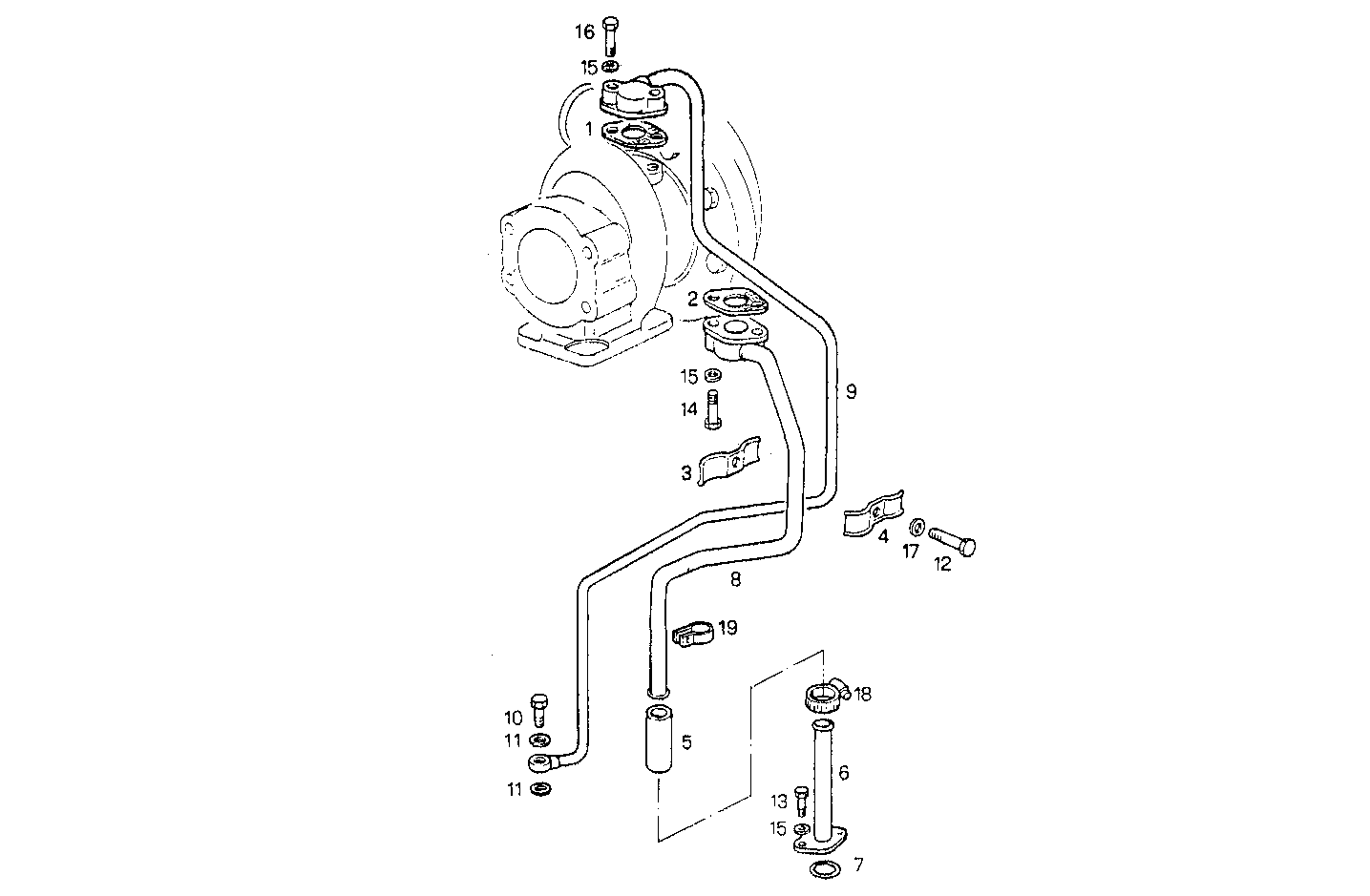

LUBE OIL LINES
8361Si11.05 — 8361Si11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4754649 | RETAINER RETAINER | 1 | |
| 4 | 4754651 | RETAINER RETAINER | 1 | |
| 5 | 98420478 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 98426497 | OIL LINE OIL LINE | 1 | |
| 7 | 14457981 | WASHER WASHER | 1 | |
| 8 | 98426499 | OIL LINE OIL LINE | 1 | |
| 9 | 98428334 | OIL LINE OIL LINE | 1 | |
| 10 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 11 | 4858609 | WASHER WASHER | 2 | |
| 12 | 10902321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16044524 | SCREW SCREW | 1 | |
| 15 | 11193871 | WASHER WASHER | 6 | |
| 16 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 11197771 | SPRING WASHER SPRING WASHER | 1 | |
| 18 | 17764592 | CLIP CLIP | 2 | |
| 19 | 10450690 | PIPE CLIP PIPE CLIP | 1 |
