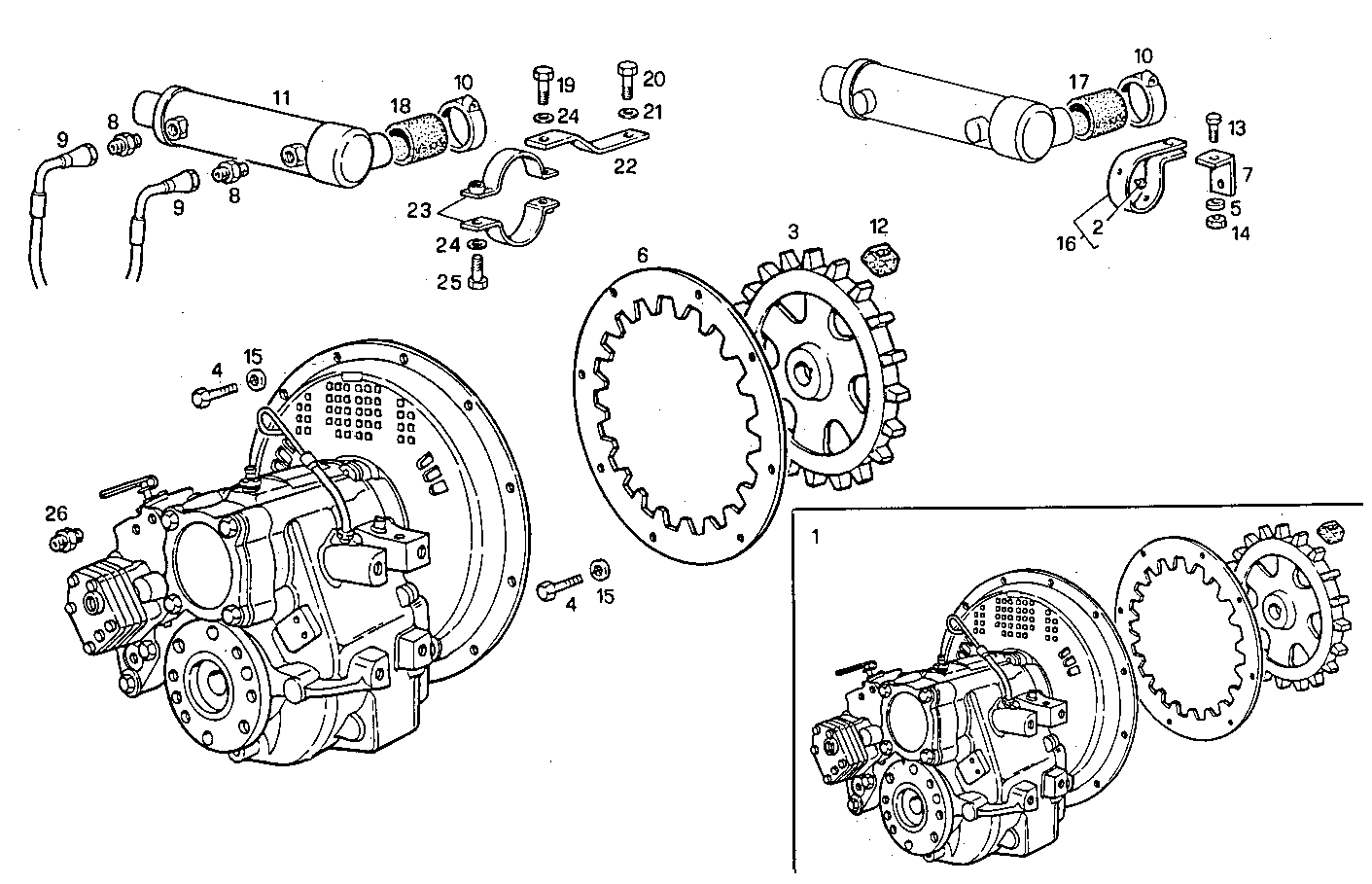

MARINE GEAR TWIN DISC MG 5050
8361SM21.00 — 8361SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006209 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 4568427 | RUBBER PAD RUBBER PAD | 6 | |
| 3 | 8007790 | UNIVERSAL JOINT UNIVERSAL JOINT | 1 | |
| 4 | 11306921 | SCREW SCREW | 20 | |
| 5 | 17090274 | WASHER WASHER | 2 | |
| 6 | 8007789 | FLANGE FLANGE | 1 | |
| 7 | 8103023 | RETAINER RETAINER | 2 | |
| 8 | 4935465 | PIPE SOCKET PIPE SOCKET | 3 | |
| 9 | 8105619 | HOSE HOSE | 2 | |
| 10 | 17764993 | CLIP CLIP | 2 | |
| 11 | 4918188 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 12 | 4932462 | DOWEL DOWEL | 20 | |
| 13 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 17090274 | WASHER WASHER | 20 | |
| 16 | 8013591 | CLIP CLIP | 2 | |
| 17 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 18 | 8016662 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 16606024 | SCREW SCREW | 2 | |
| 20 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 22 | 8100407 | RETAINER RETAINER | 2 | |
| 23 | 5116798 | CLIP CLIP | 4 | |
| 24 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 25 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 26 | 8101161 | PIPE SOCKET PIPE SOCKET | 1 |
