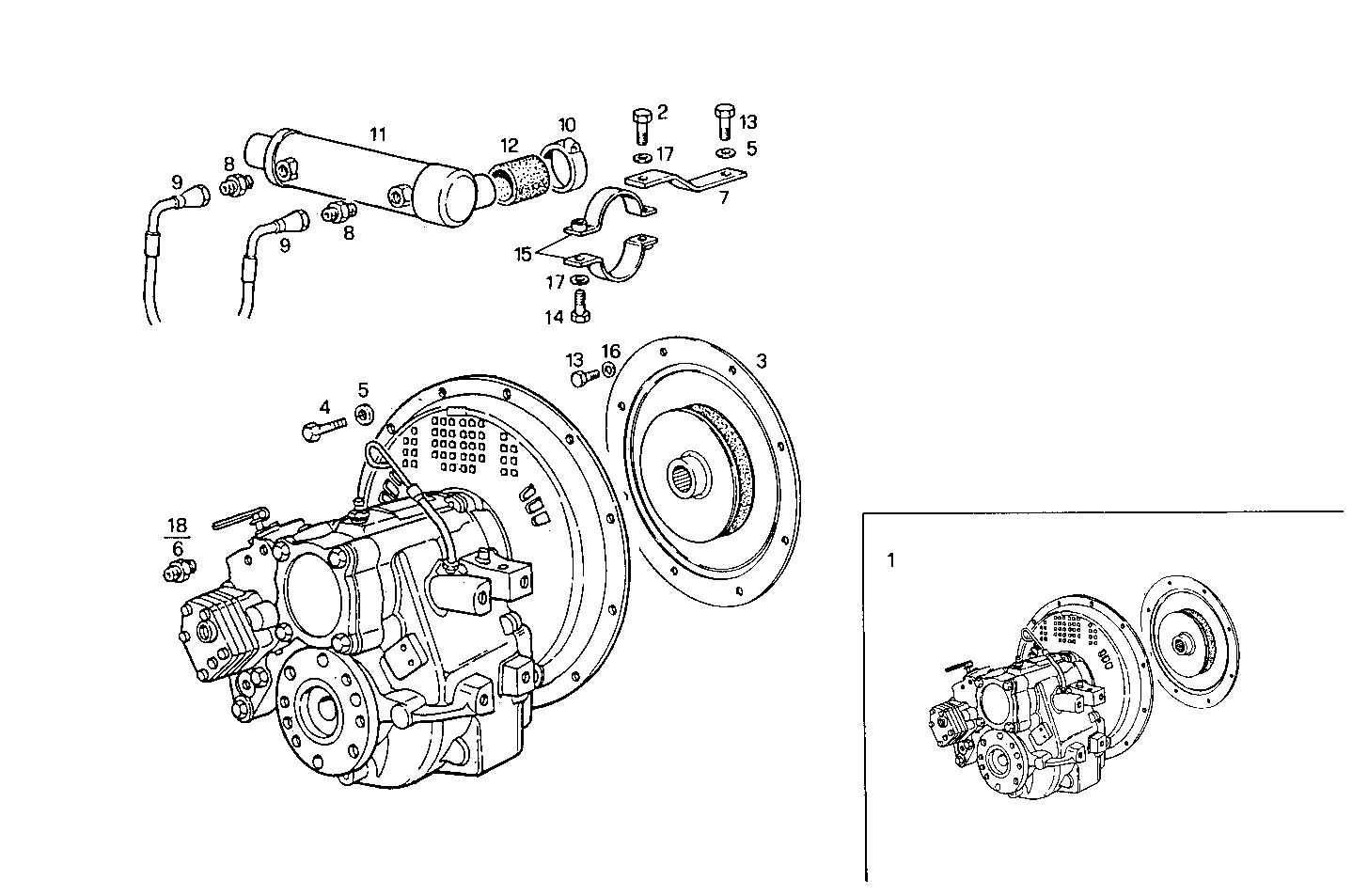

MARINE GEAR TWIN DISC MG 5050
8361SM21.00 — 8361SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012976 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 16605724 | SCREW SCREW | 2 | |
| 3 | 8014086 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 11306921 | SCREW SCREW | 12 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 14 | |
| 6 | 8101161 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 8100407 | RETAINER RETAINER | 2 | |
| 8 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 9 | 8105619 | HOSE HOSE | 2 | |
| 10 | 17764783 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 11 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 12 | 8016662 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 15970721 | SCREW SCREW | 10 | |
| 14 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 5116798 | CLIP CLIP | 4 | |
| 16 | 17494934 | WASHER WASHER | 8 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 18 | 4935465 | PIPE SOCKET PIPE SOCKET | 1 |
