MARINE GEAR TWIN DISC MG 5061
8361SM21.00 — 8361SM21

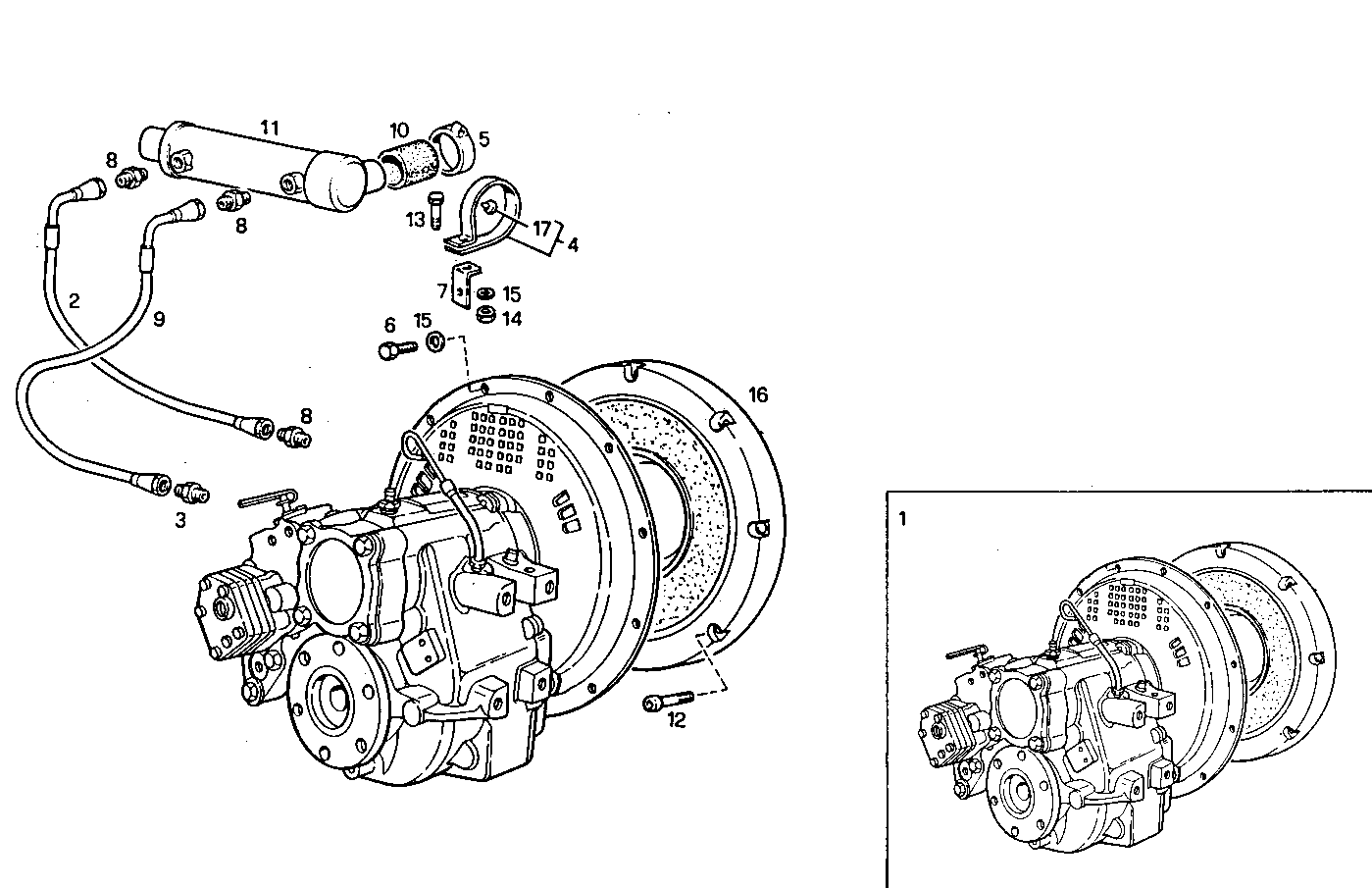

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010162 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8105620 | HOSE HOSE | 1 | |
| 3 | 8101161 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8013591 | CLIP CLIP | 2 | |
| 5 | 17764993 | CLIP CLIP | 2 | |
| 6 | 11306921 | SCREW SCREW | 12 | |
| 7 | 8103023 | RETAINER RETAINER | 2 | |
| 8 | 4935465 | PIPE SOCKET PIPE SOCKET | 3 | |
| 9 | 8105619 | HOSE HOSE | 1 | |
| 10 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 4919188 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 12 | 14308021 | SCREW SCREW | 10 | |
| 13 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 17090274 | WASHER WASHER | 14 | |
| 16 | 8007900 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 17 | 4568427 | RUBBER PAD RUBBER PAD | 6 |
