WATER PREHEATER DEVICE - 220V
8361SM21.00 — 8361SM21

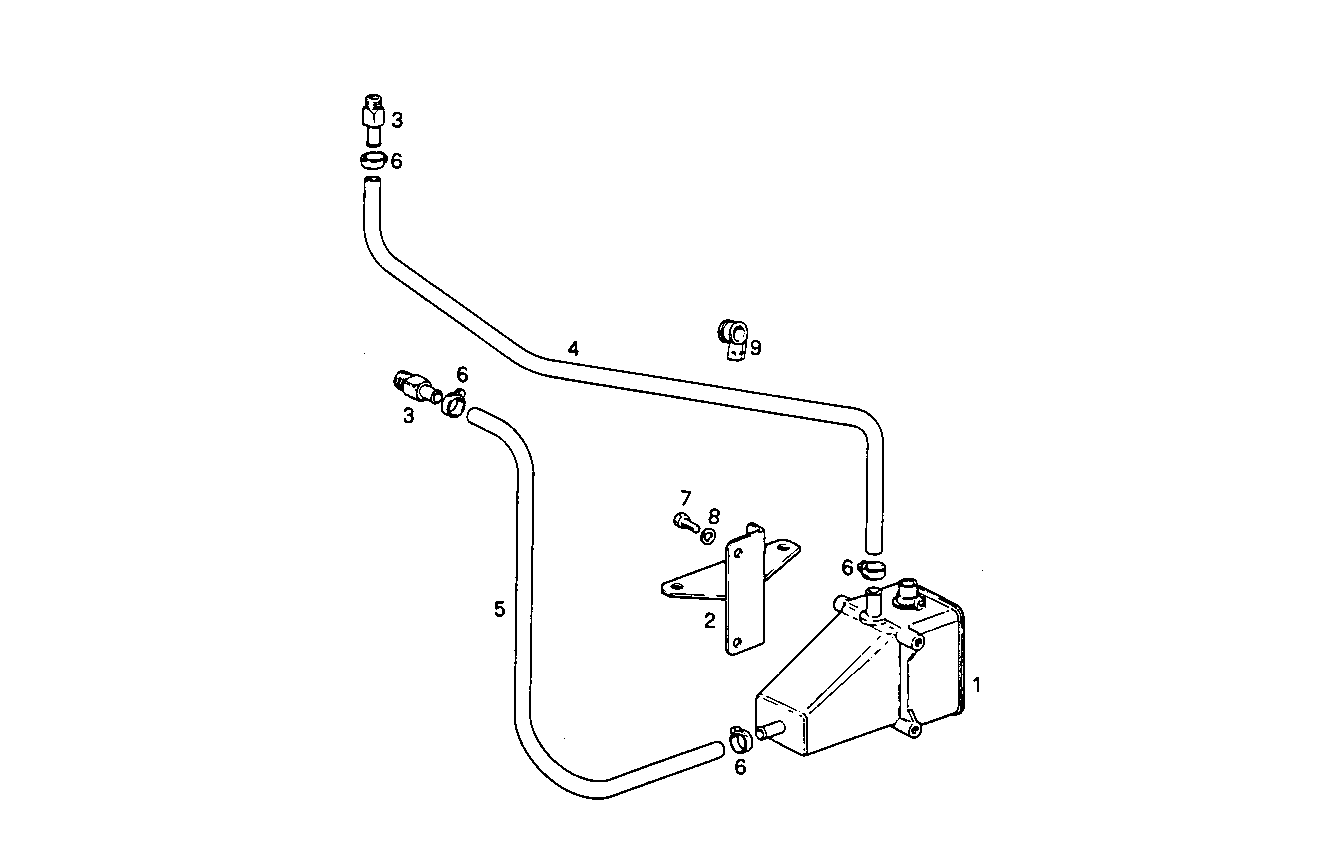

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006935 | HEATER HEATER | 1 | |
| 2 | 8006951 | RETAINER RETAINER | 1 | |
| 3 | 8113848 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 8007915 | WATER HOSE WATER HOSE | 1 | |
| 5 | 8112187 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17764491 | CLIP CLIP | 4 | |
| 7 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17088474 | WASHER WASHER | 2 | |
| 9 | 10441690 | PIPE CLIP PIPE CLIP | 1 |
