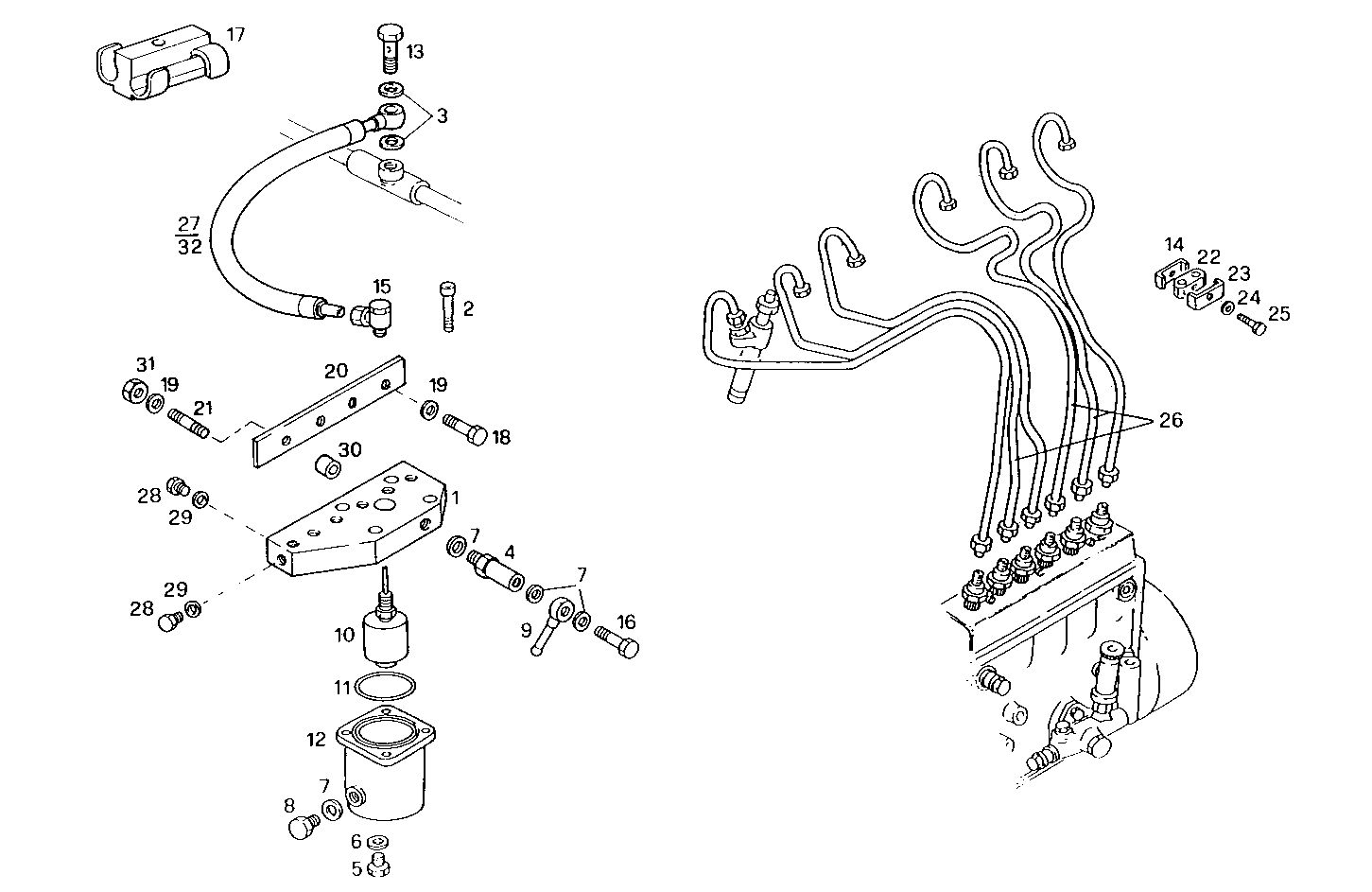

DOUBLE WALL INJECTION PIPES
8361SM21.01 — 8361SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030234 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 2 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 3 | 98474303 | WASHER WASHER | 12 | |
| 4 | 8102465 | VALVE VALVE | 1 | |
| 5 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 6 | 4858607 | WASHER WASHER | 1 | |
| 7 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 8 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 9 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8102285 | INDICATOR INDICATOR | 1 | |
| 11 | 17290081 | O-RING O-RING | 1 | |
| 12 | 8026365 | TANK TANK | 1 | |
| 13 | 4864078 | BANJO BOLT BANJO BOLT | 6 | |
| 14 | 4659219 | PLATE PLATE | 4 | |
| 15 | 8026816 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 16 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 8030239 | CLIP CLIP | 4 | |
| 18 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 20 | 8031958 | RETAINER RETAINER | 1 | |
| 21 | 16729524 | STUD STUD | 2 | |
| 22 | 4659217 | DOWEL DOWEL | 4 | |
| 23 | 4659218 | CLIP CLIP | 4 | |
| 24 | 17496434 | WASHER WASHER | 4 | |
| 25 | 16602224 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 26 | 8028175 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 27 | 8030221 | HOSE HOSE | 1 | |
| 28 | 16992111 | THREADED PLUG THREADED PLUG | 2 | |
| 29 | 4858606 | GASKET GASKET | 2 | |
| 30 | 17816311 | SPACING BAR SPACING BAR | 2 | |
| 31 | 17037921 | NUT NUT | 2 | |
| 32 | 8030220 | HOSE HOSE | 5 |
