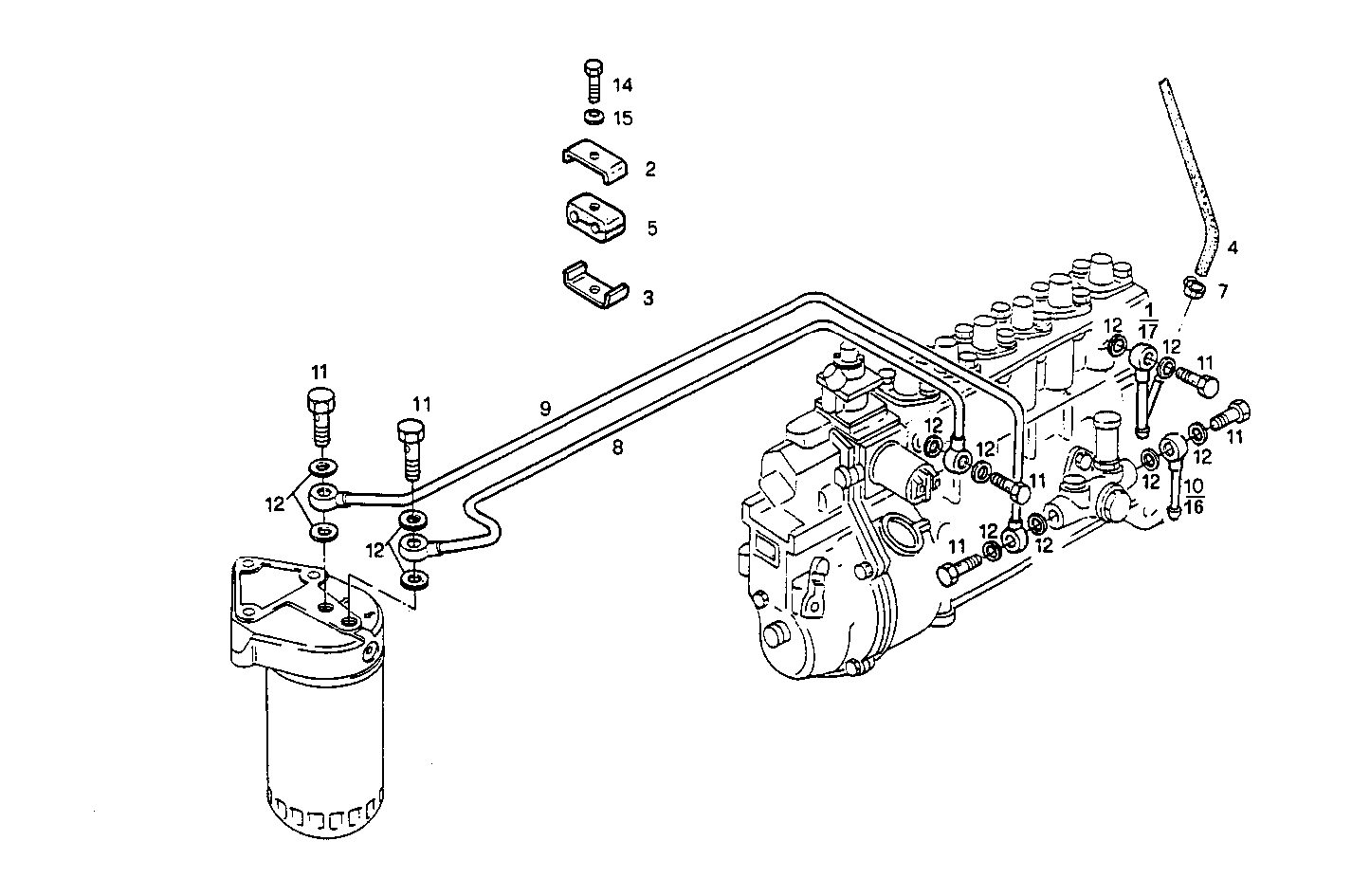

FUEL LINES
8361SM21.01 — 8361SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012659 | FUEL LINE FUEL LINE | 1 | |
| 2 | 4644288 | CLIP CLIP | 1 | |
| 3 | 4644289 | CLIP CLIP | 1 | |
| 4 | 4934253 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 7 | 12176790 | CLIP CLIP | 2 | |
| 8 | 8012634 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8012635 | FUEL LINE FUEL LINE | 1 | |
| 10 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 12 | 4858608 | SEAL GASKET SEAL GASKET | 12 | |
| 14 | 10902621 | SCREW SCREW | 1 | |
| 15 | 11197779 | SPRING WASHER SPRING WASHER | 1 | |
| 16 | 8030222 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 8034106 | FUEL LINE FUEL LINE | 1 |
