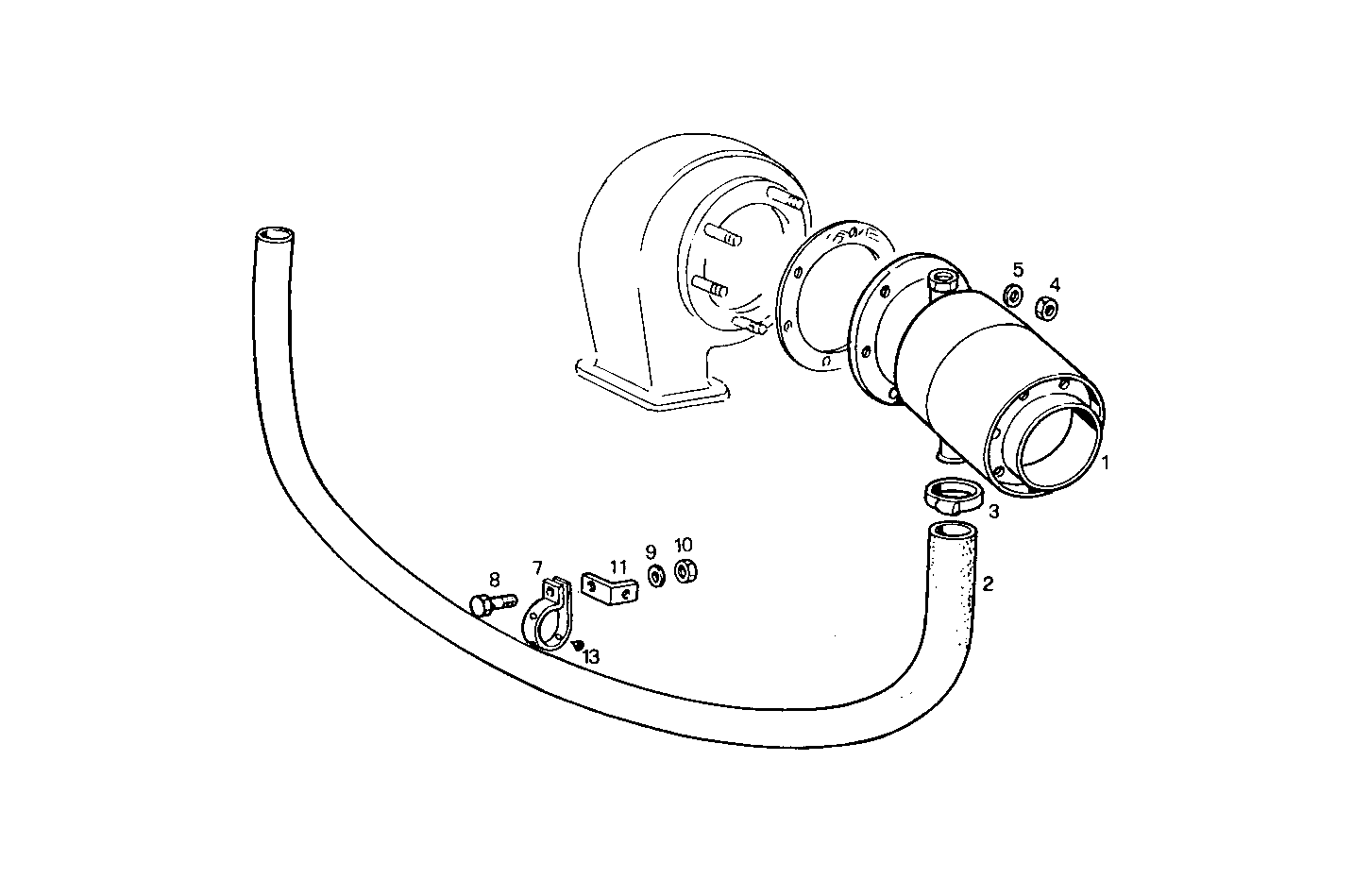

GAS-WATER MIXER WITH STERN OUTLET
8361SM21.01 — 8361SM21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105594 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 2 | 8102457 | WATER HOSE WATER HOSE | 1 | |
| 3 | 12177090 | CLIP CLIP | 2 | |
| 4 | 17157221 | NUT NUT | 6 | |
| 5 | 17095114 | WASHER WASHER | 6 | |
| 7 | 8100668 | CLIP CLIP | 1 | |
| 8 | 16043121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 11193871 | WASHER WASHER | 1 | |
| 10 | 16100811 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 4932164 | RETAINER RETAINER | 1 | |
| 13 | 4568427 | RUBBER PAD RUBBER PAD | 1 |
