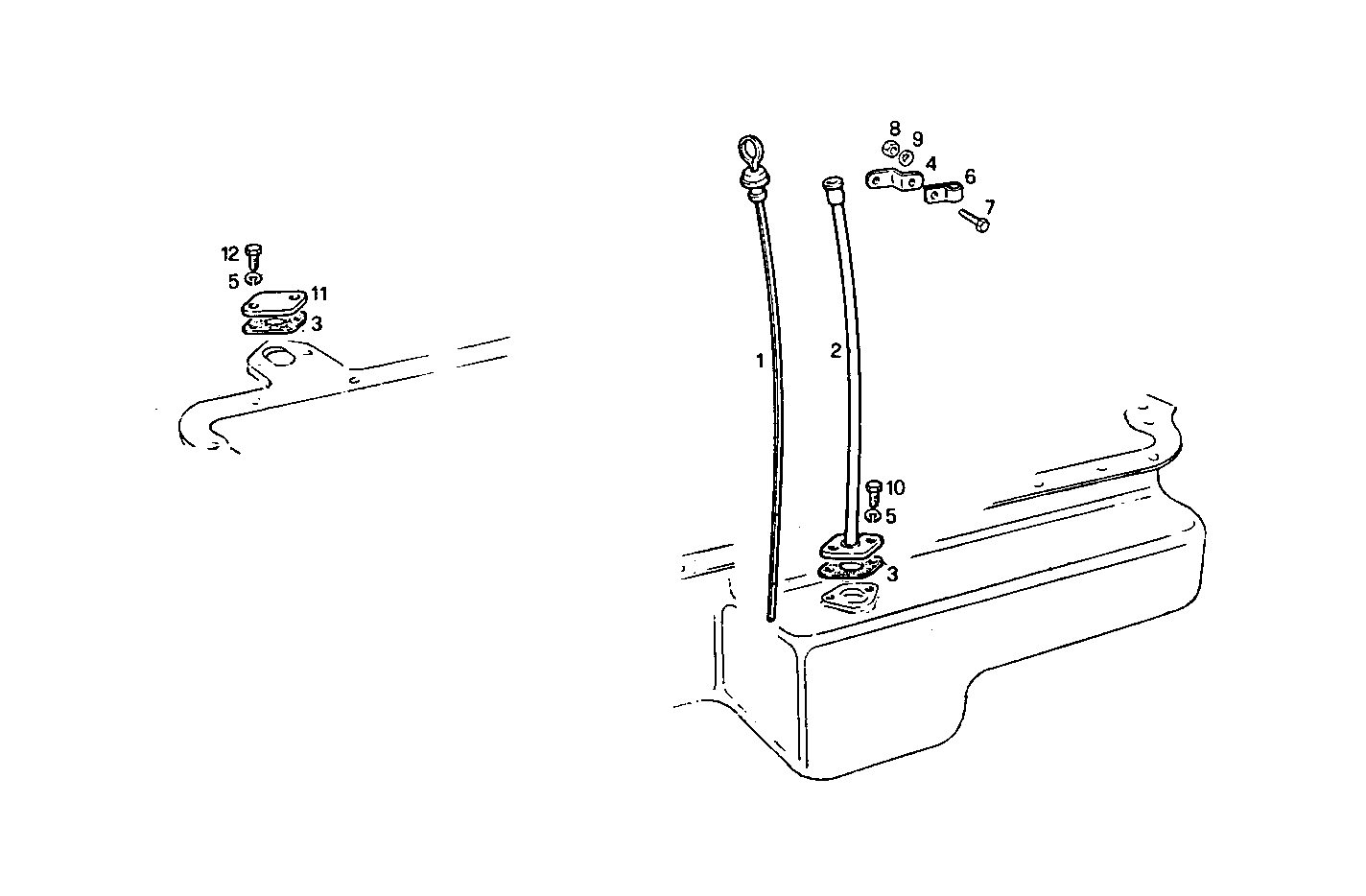

LONG OIL DIPSTICK LEFT SIDE
8361SRE10.00 — 8361SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4735922 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 4804069 | OIL LINE OIL LINE | 1 | |
| 3 | 4723428 | GASKET GASKET | 1 | |
| 4 | 4735924 | RETAINER RETAINER | 1 | |
| 5 | 11193871 | WASHER WASHER | 2 | |
| 6 | 10418400 | CLIP CLIP | 1 | |
| 7 | 10903621 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 11197771 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 4726341 | COVER COVER | 1 | |
| 12 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 2 |
