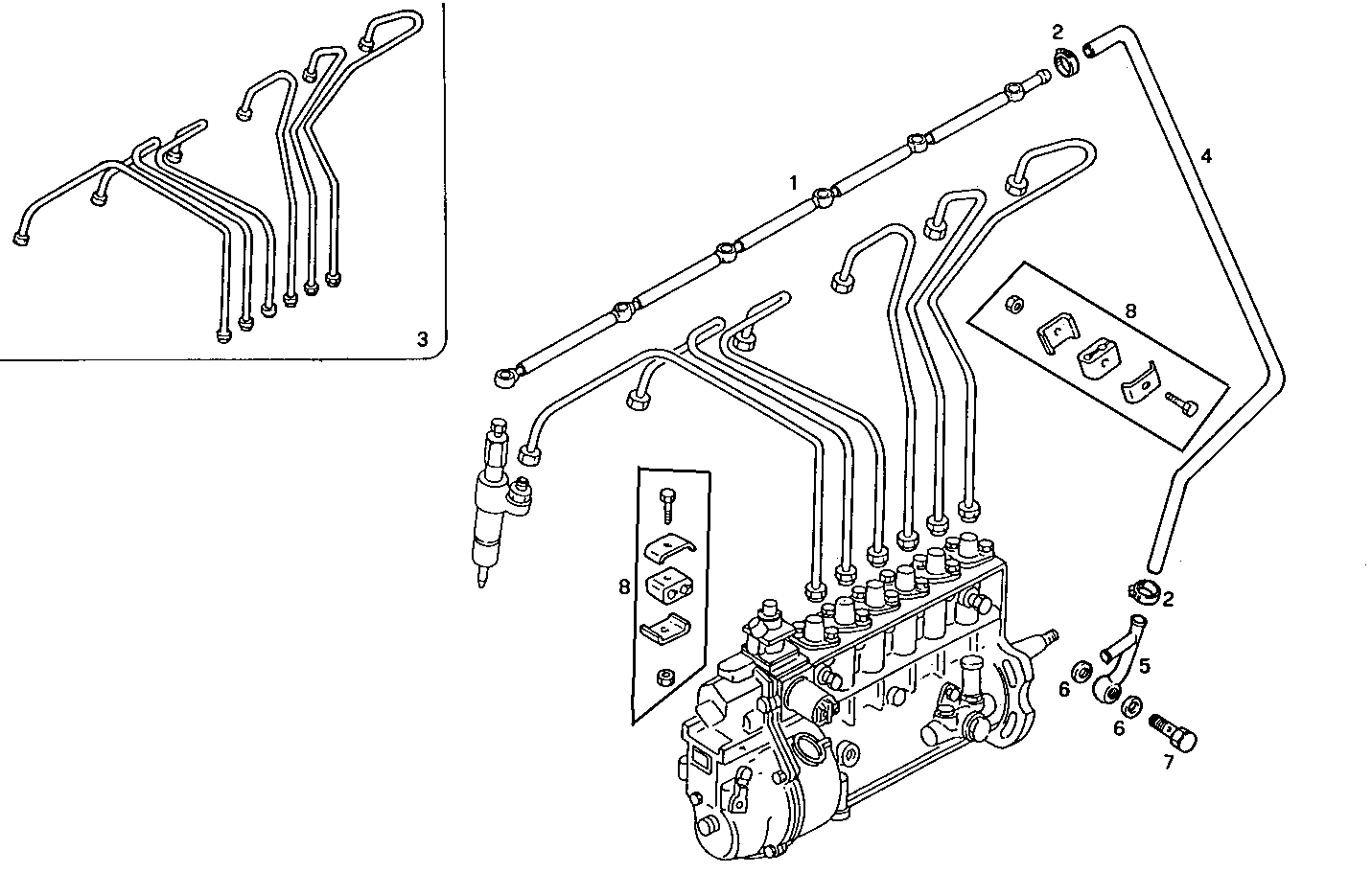

INJECTION PIPES
8361SRE10.00A004 — 8361SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4756418 | FUEL LINE FUEL LINE | 1 | |
| 2 | 17764391 | CLIP CLIP | 2 | |
| 3 | 4806746 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 4 | 4934253 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8012659 | FUEL LINE FUEL LINE | 1 | |
| 6 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 7 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 4806611 | FASTENING BRACKET FASTENING BRACKET | 6 |
