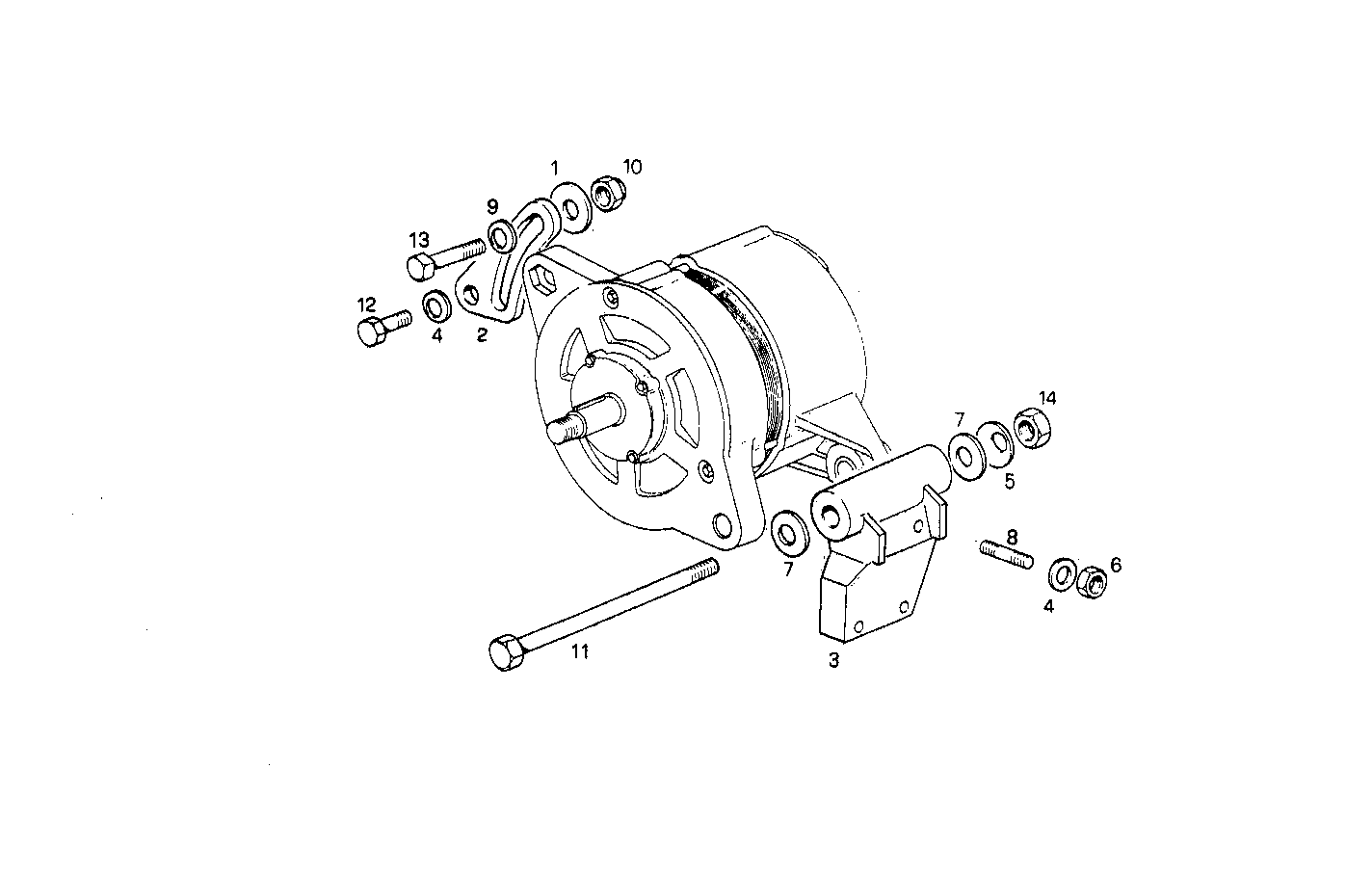

MOUNT
8361SRE10.00A004 — 8361SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4513436 | SUPPORT RING SUPPORT RING | 1 | |
| 2 | 8100618 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 8105500 | SUPPORT SUPPORT | 1 | |
| 4 | 11198379 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 11198679 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 12646901 | WASHER WASHER | 2 | |
| 8 | 13546421 | STUD STUD | 2 | |
| 9 | 12626001 | WASHER WASHER | 1 | |
| 10 | 14048717 | NUT NUT | 1 | |
| 11 | 15541921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 16101511 | HEXAGON NUT HEXAGON NUT | 1 |
