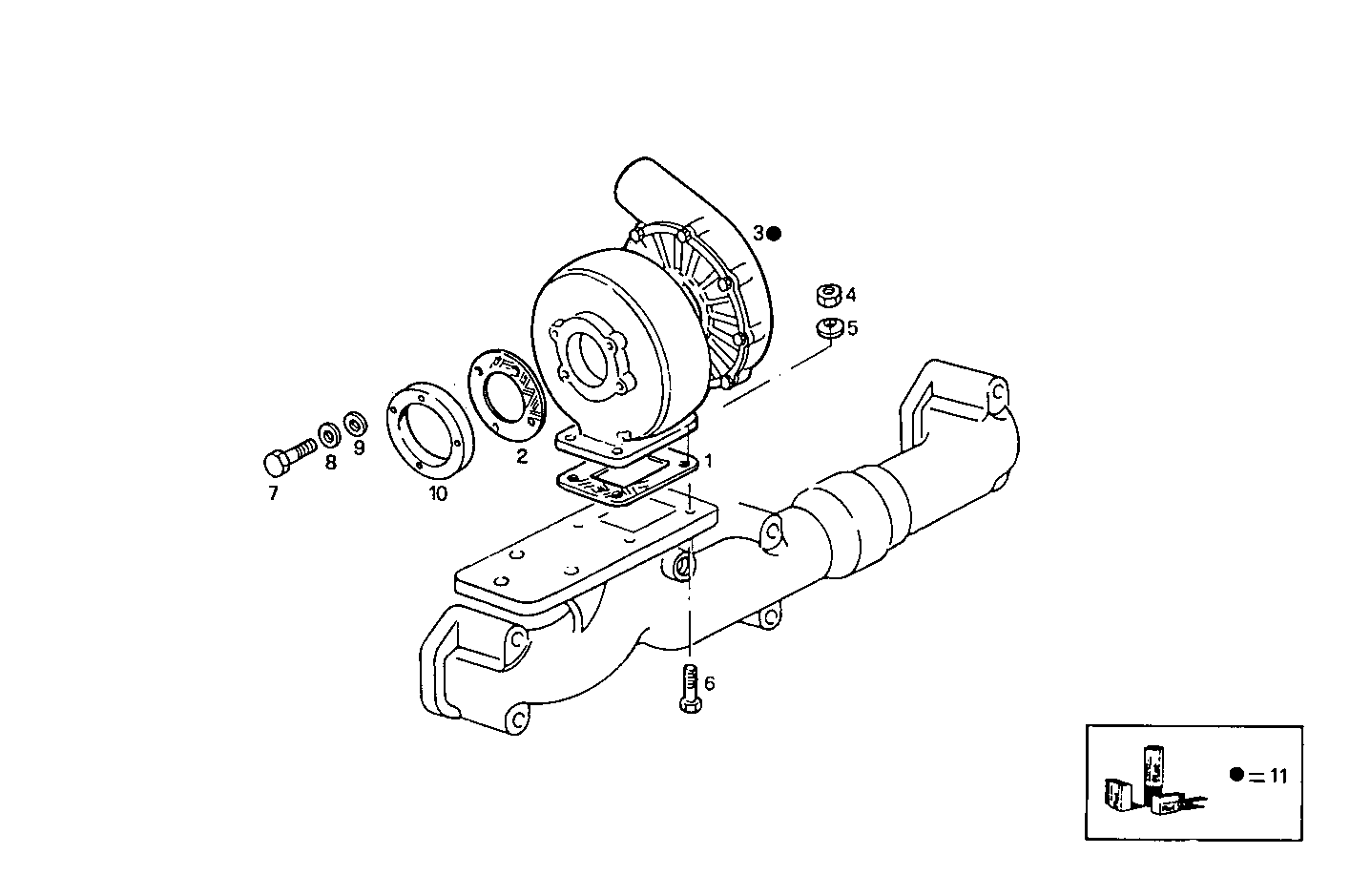

TURBOCHARGER
8361SRE10.00A004 — 8361SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4632123 | GASKET GASKET | 1 | |
| 2 | 4729026 | GASKET GASKET | 1 | |
| 3 | 8108015 | TURBOCHARGER TURBOCHARGER | 1 | |
| 4 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17095004 | WASHER WASHER | 4 | |
| 6 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 10730321 | WASHER WASHER | 4 | |
| 9 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8113659 | FLANGE FLANGE | 1 | |
| 11 | 8090147 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 |
