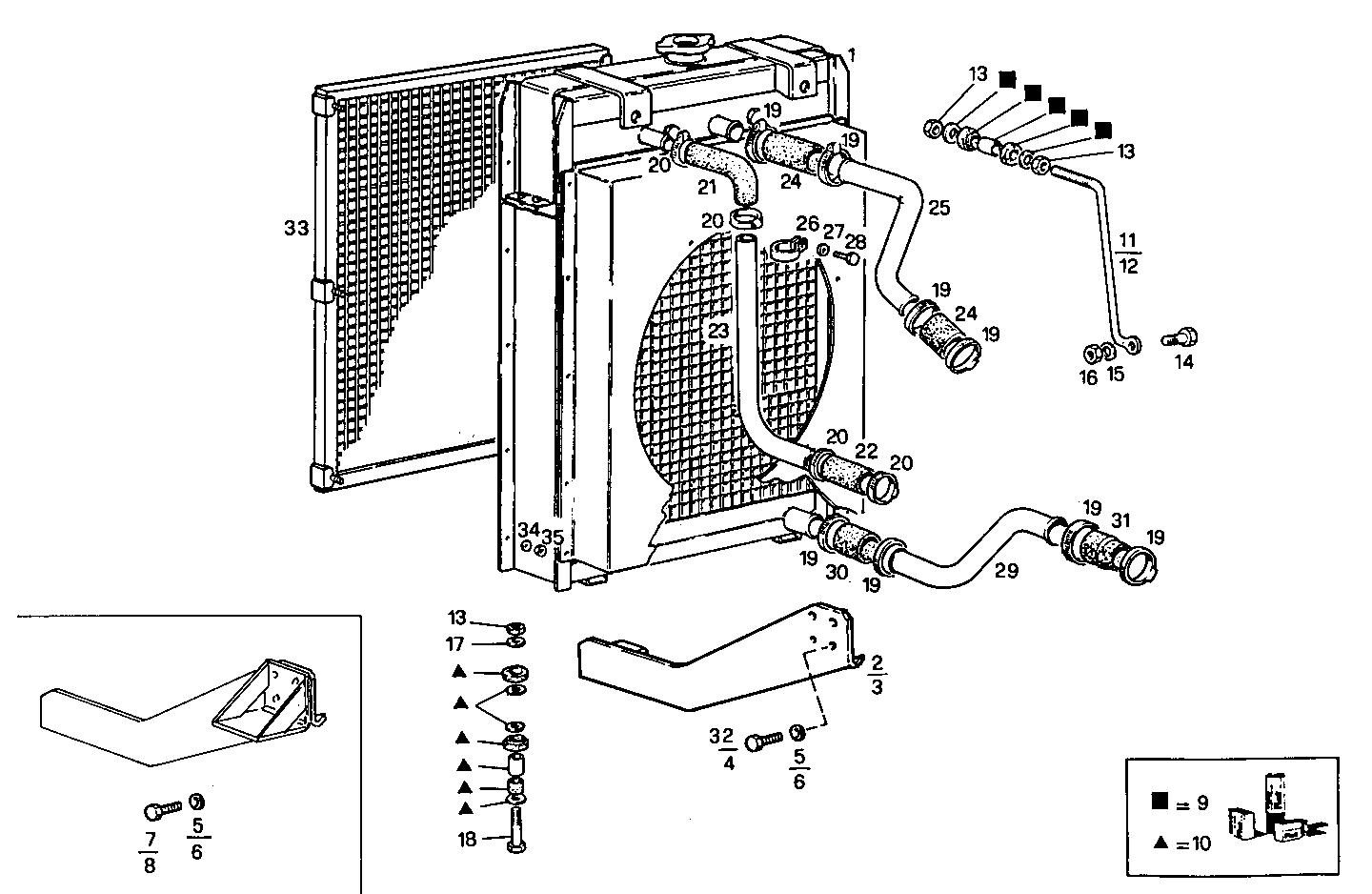

RADIATOR FOR SETTING TILL MAX POWER
8361SRE10.00A800 — 8361SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107679 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8107527 | RETAINER RETAINER | 1 | |
| 3 | 8107526 | RETAINER RETAINER | 1 | |
| 4 | 15540521 | SCREW SCREW | 4 | |
| 5 | 11194271 | WASHER WASHER | 4 | |
| 6 | 11198671 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 15840521 | SCREW SCREW | 4 | |
| 8 | 15540621 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 10 | 8090412 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 11 | 8107975 | TIE ROD TIE ROD | 1 | |
| 12 | 8107976 | TIE ROD TIE ROD | 1 | |
| 13 | 16101511 | HEXAGON NUT HEXAGON NUT | 6 | |
| 14 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 11198371 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 17 | 8107700 | WASHER WASHER | 4 | |
| 18 | 15541321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 12174790 | CLIP CLIP | 8 | |
| 20 | 12173790 | CLIP CLIP | 4 | |
| 21 | 4616762 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 12078187 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 23 | 8107725 | WATER PIPE WATER PIPE | 1 | |
| 24 | 10140087 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 25 | 8107675 | WATER PIPE WATER PIPE | 1 | |
| 26 | 10450690 | PIPE CLIP PIPE CLIP | 2 | |
| 27 | 11193871 | WASHER WASHER | 2 | |
| 28 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 29 | 8106304 | WATER PIPE WATER PIPE | 1 | |
| 30 | 10138787 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 31 | 4951318 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 32 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 33 | 8108066 | GRILLE GRILLE | 1 | |
| 34 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 35 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 |
