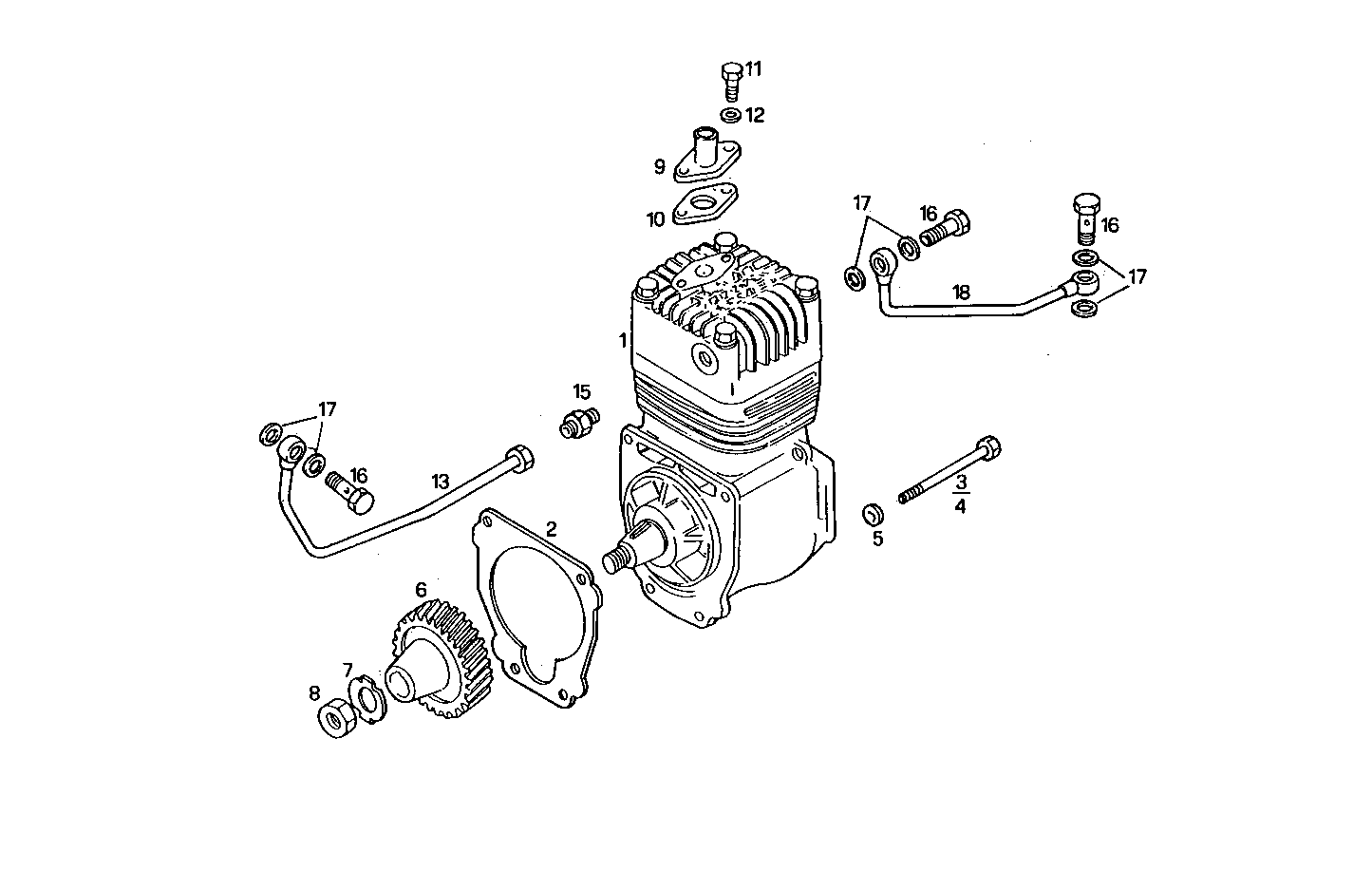

AIR COMPRESSOR
8361SRE11.00 — 8361SRE11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500310905 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 15970924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 15972024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 6 | 98480830 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 7 | 17095904 | WASHER WASHER | 1 | |
| 8 | 16980731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 4854084 | SUCTION LINE SUCTION LINE | 1 | |
| 10 | 4863948 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 4853485 | WATER PIPE WATER PIPE | 1 | |
| 15 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 16 | 4864084 | BANJO BOLT BANJO BOLT | 3 | |
| 17 | 4858609 | WASHER WASHER | 6 | |
| 18 | 4853487 | WATER PIPE WATER PIPE | 1 |
