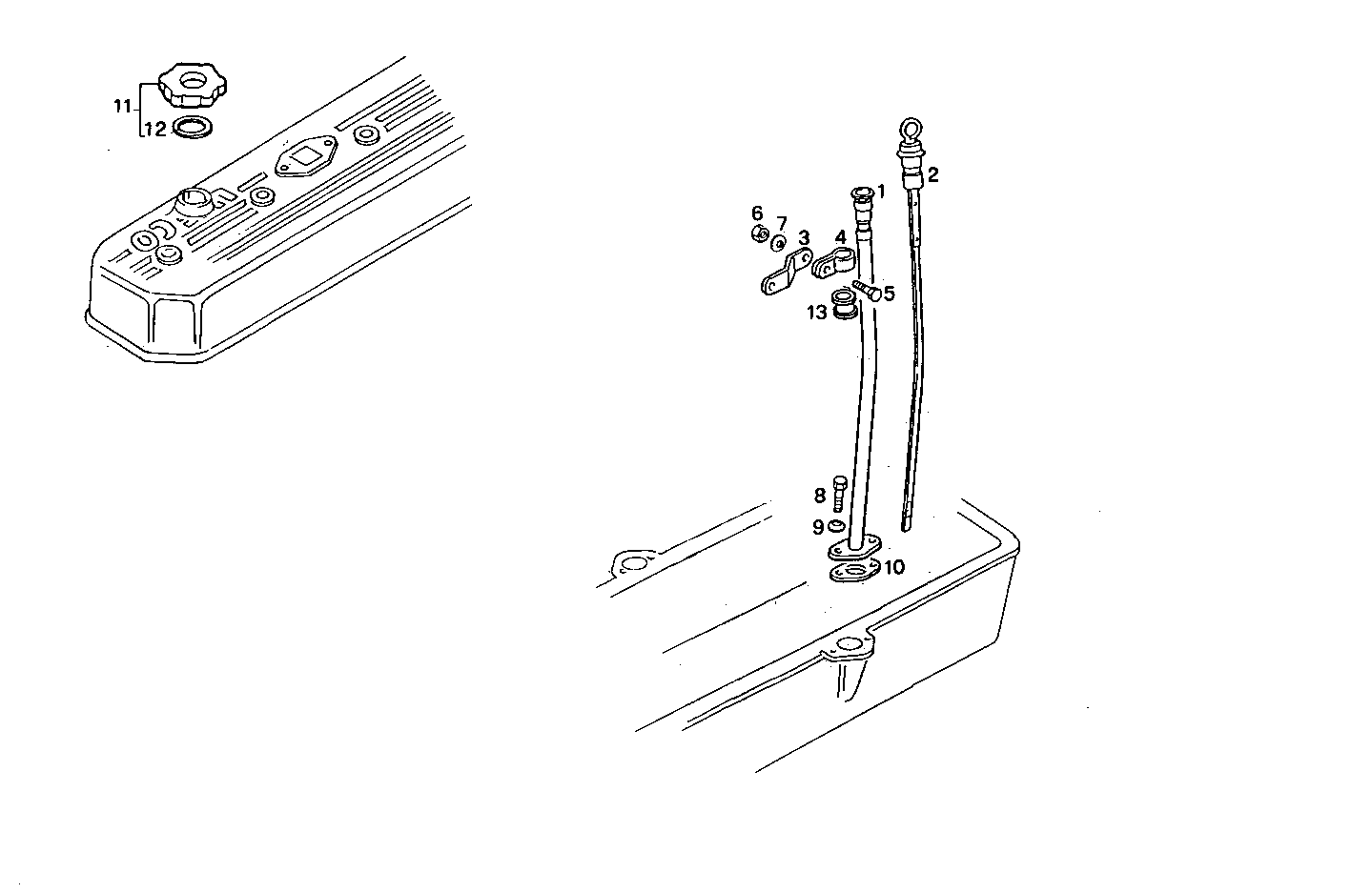

OIL DIPSTICK
8361SRE11.00 — 8361SRE11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007593 | ROD GUIDE ROD GUIDE | 1 | |
| 2 | 8009992 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 8113297 | RETAINER RETAINER | 1 | |
| 4 | 4763804 | FASTENING BRACKET FASTENING BRACKET | 4 | |
| 5 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17089774 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 98412099 | GASKET GASKET | 1 | |
| 11 | 98418980 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 12 | 98418978 | GASKET GASKET | 1 | |
| 13 | 4757122 | RUBBER PAD RUBBER PAD | 1 |
