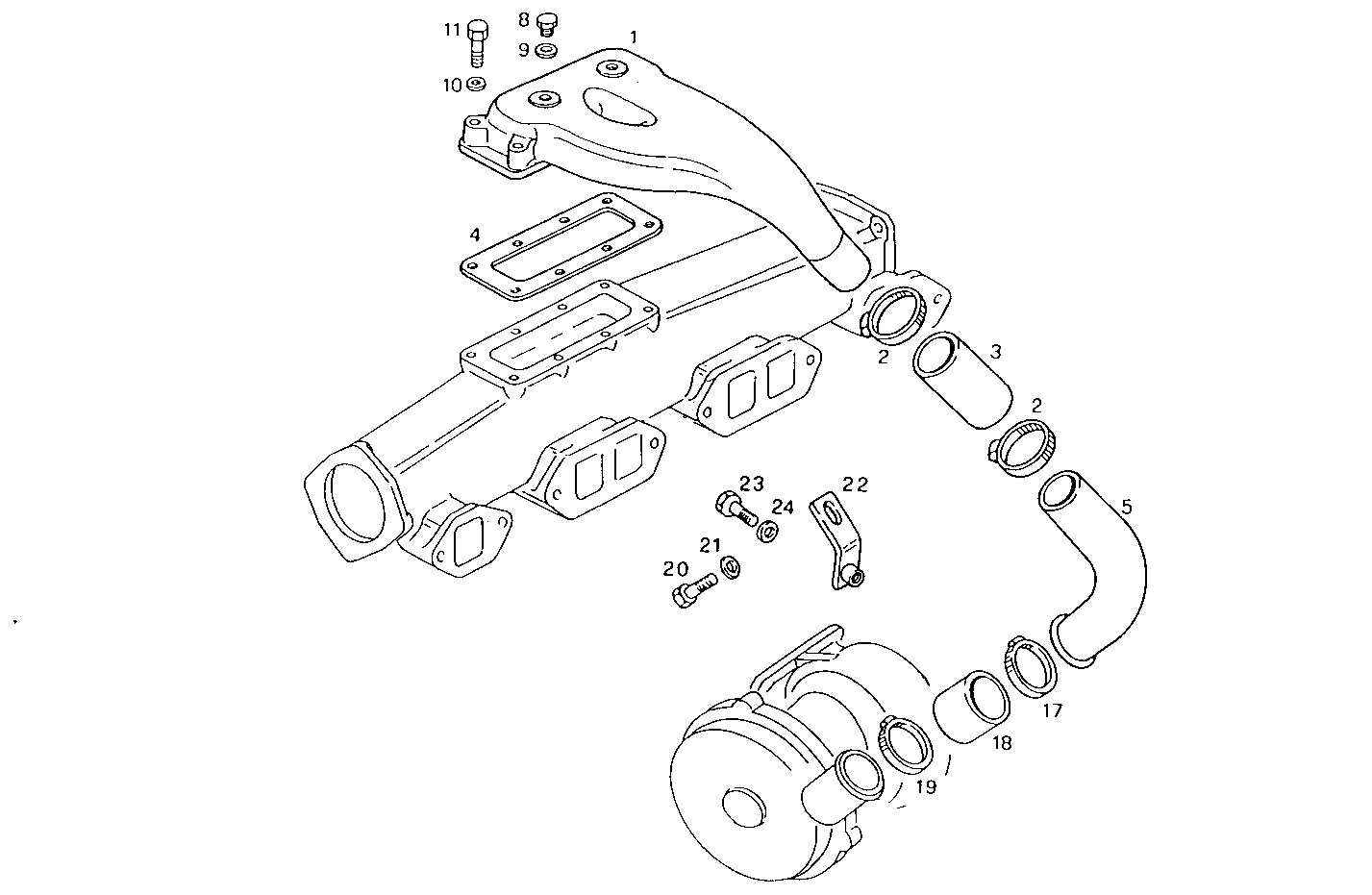

SUPERCHARGING LINES
8361SRE11.00A001 — 8361SRE11
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017705 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 17764992 | CLIP CLIP | 2 | |
| 3 | 98437496 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 8019078 | GASKET GASKET | 1 | |
| 5 | 8017685 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 8 | 10304911 | THREADED PLUG THREADED PLUG | 2 | |
| 9 | 98429280 | SEAL GASKET SEAL GASKET | 2 | |
| 10 | 17793804 | WASHER WASHER | 7 | |
| 11 | 8023383 | SCREW SCREW | 7 | |
| 17 | 4830091 | CLIP CLIP | 1 | |
| 18 | 8017813 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 17768591 | CLIP CLIP | 1 | |
| 20 | 16605424 | SCREW SCREW | 1 | |
| 21 | 17009474 | WASHER WASHER | 1 | |
| 22 | 8018445 | RETAINER RETAINER | 1 | |
| 23 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 17090174 | SPRING WASHER SPRING WASHER | 1 |
