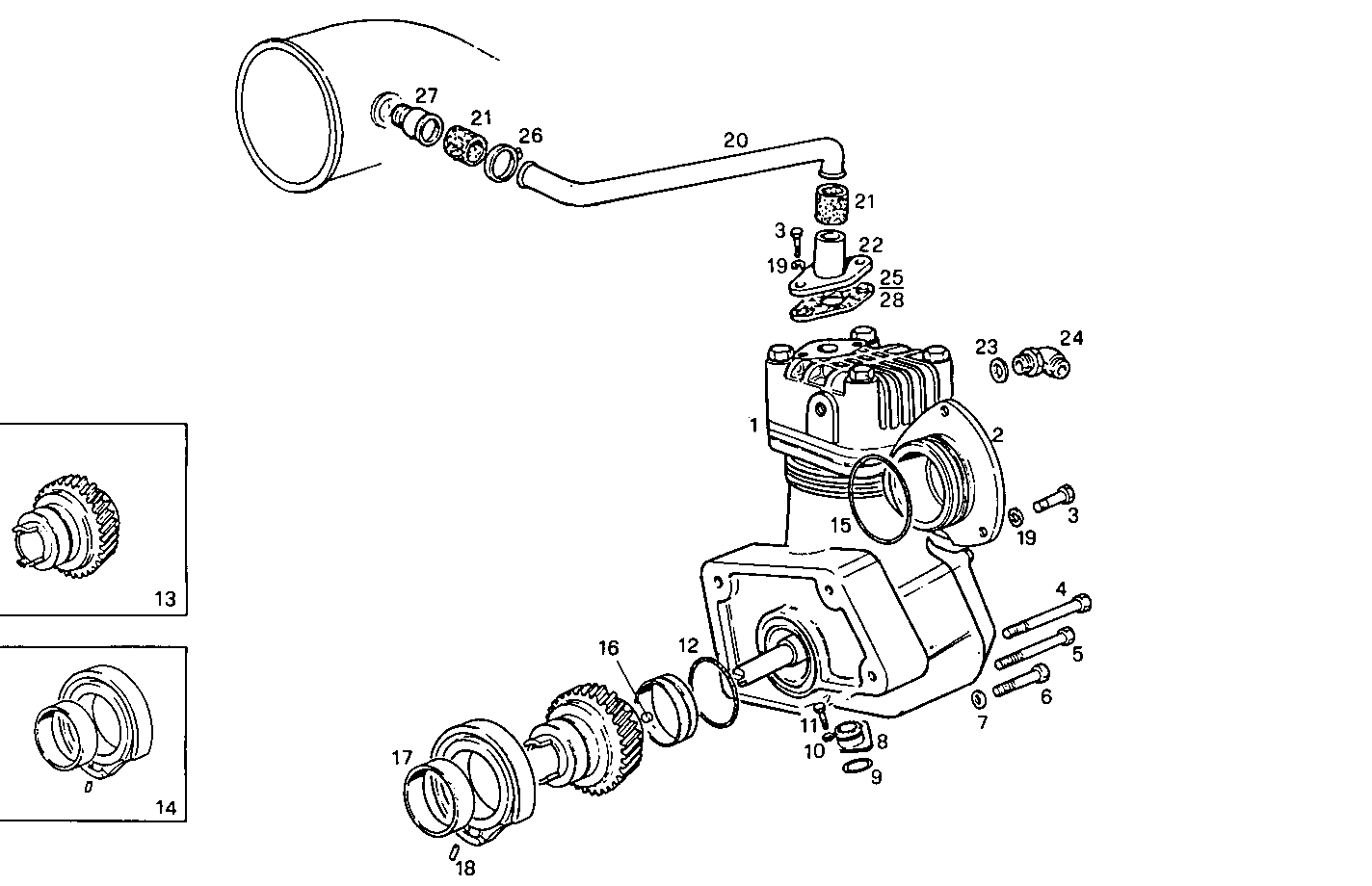

AIR COMPRESSOR
8361SRi10.01 — 8361SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99440225 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 4726906 | COVER COVER | 1 | |
| 3 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 15971821 | SCREW SCREW | 1 | |
| 5 | 15971621 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 10923621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 11198371 | SPRING WASHER SPRING WASHER | 6 | |
| 8 | 4711788 | PIPE PIPE | 1 | |
| 9 | 14457581 | O-RING O-RING | 2 | |
| 10 | 11198371 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 14464081 | O-RING O-RING | 1 | |
| 13 | 4708217 | GEAR GEAR | 1 | |
| 14 | 4708219 | SUPPORT SUPPORT | 1 | |
| 15 | 14460181 | O-RING O-RING | 1 | |
| 16 | 14327101 | LOCK PLUG LOCK PLUG | 1 | |
| 17 | 10837610 | DOWEL PIN DOWEL PIN | 1 | |
| 18 | 4692781 | CENTERING BUSH CENTERING BUSH | 1 | |
| 19 | 11198371 | SPRING WASHER SPRING WASHER | 2 | |
| 20 | 8107906 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 21 | 12080686 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 22 | 8101132 | PIPE SOCKET PIPE SOCKET | 1 | |
| 23 | 10264560 | SEAL GASKET SEAL GASKET | 1 | |
| 24 | 8830348 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 25 | 4513714 | GASKET GASKET | 1 | |
| 26 | 12173890 | CLIP CLIP | 4 | |
| 27 | 4734507 | THREADED UNION THREADED UNION | 1 | |
| 28 | 3881554 | GASKET GASKET | 1 |
