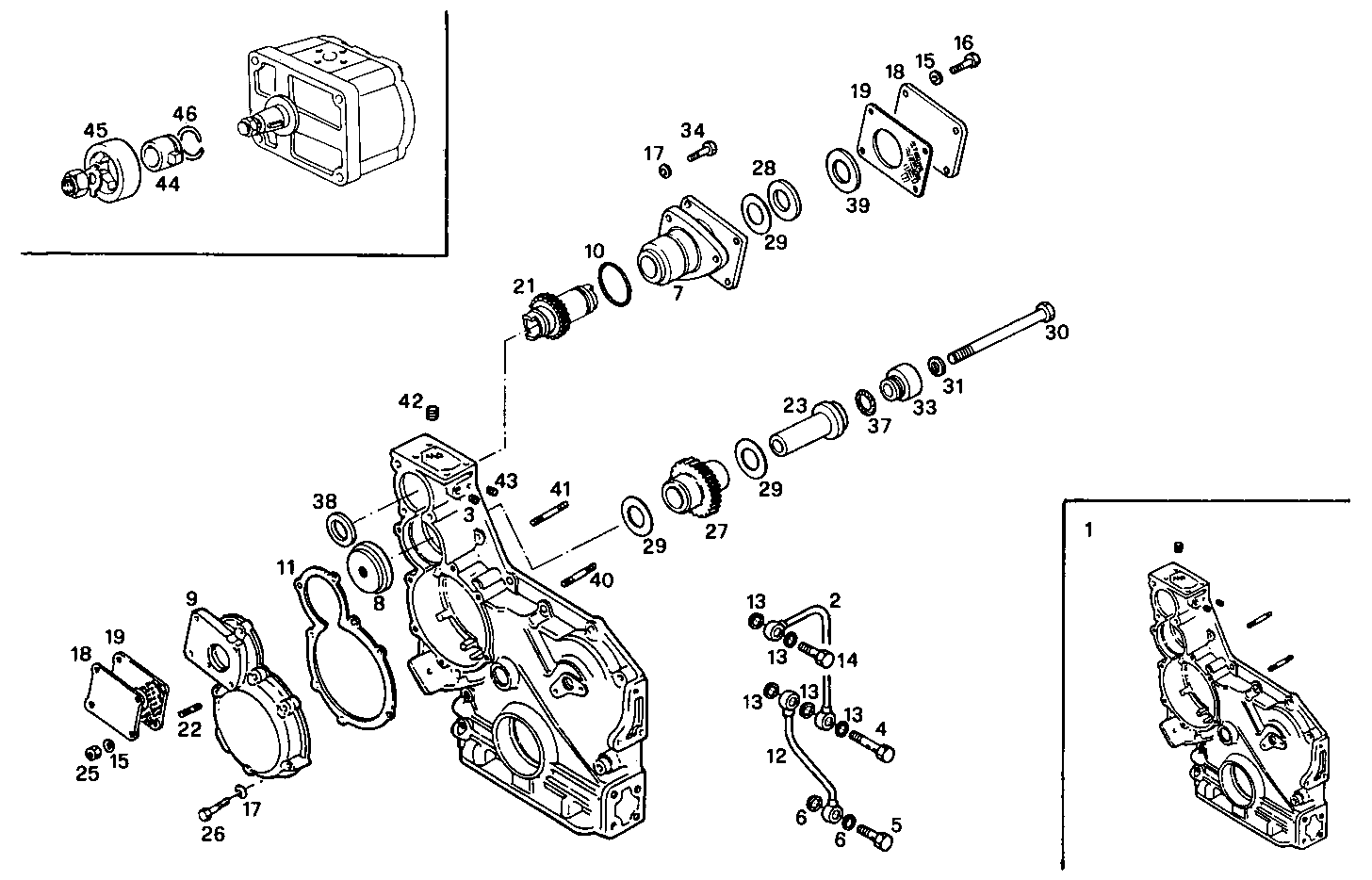

ARRANGED FOR 2 HYDRAULIC PUMPS
8361SRi10.01 — 8361SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107926 | COVER COVER | 1 | |
| 2 | 4766747 | OIL LINE OIL LINE | 1 | |
| 3 | 4560434 | PLUG PLUG | 1 | |
| 4 | 4930504 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 5 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 6 | 4858606 | GASKET GASKET | 4 | |
| 7 | 4767038 | SUPPORT SUPPORT | 1 | |
| 8 | 4766827 | SUPPORT SUPPORT | 1 | |
| 9 | 4718711 | COVER COVER | 1 | |
| 10 | 14460181 | O-RING O-RING | 1 | |
| 11 | 4796117 | GASKET GASKET | 1 | |
| 12 | 8012373 | OIL LINE OIL LINE | 1 | |
| 13 | 4858607 | WASHER WASHER | 5 | |
| 14 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 15 | 11197779 | SPRING WASHER SPRING WASHER | 8 | |
| 16 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 11193879 | SPRING WASHER SPRING WASHER | 10 | |
| 18 | 564530 | COVER COVER | 2 | |
| 19 | 4851385 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 21 | 4724168 | SHAFT SHAFT | 1 | |
| 22 | 4733825 | STUD STUD | 4 | |
| 23 | 4766736 | PIN PIN | 1 | |
| 25 | 15896211 | HEXAGON NUT HEXAGON NUT | 4 | |
| 26 | 16044121 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 27 | 4766826 | GEAR GEAR | 1 | |
| 28 | 4755621 | RING RING | 1 | |
| 29 | 4667452 | SUPPORT RING SUPPORT RING | 3 | |
| 30 | 11114121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 31 | 98474306 | WASHER WASHER | 1 | |
| 33 | 4766738 | SPACING BAR SPACING BAR | 1 | |
| 34 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 35 | 15971821 | SCREW SCREW | 1 | |
| 36 | 15972021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 37 | 14458281 | O-RING O-RING | 1 | |
| 38 | 4609538 | CENTERING RING CENTERING RING | 1 | |
| 39 | 4543246 | CENTERING RING CENTERING RING | 1 | |
| 40 | 12430121 | STUD STUD | 1 | |
| 41 | 12429821 | STUD STUD | 3 | |
| 42 | 14323911 | LOCK PLUG LOCK PLUG | 1 | |
| 43 | 10268350 | LOCK PLUG LOCK PLUG | 2 | |
| 44 | 8011614 | HUB HUB | 2 | |
| 45 | 4621358 | RING RING | 2 | |
| 46 | 13398376 | CIRCLIP CIRCLIP | 2 |
