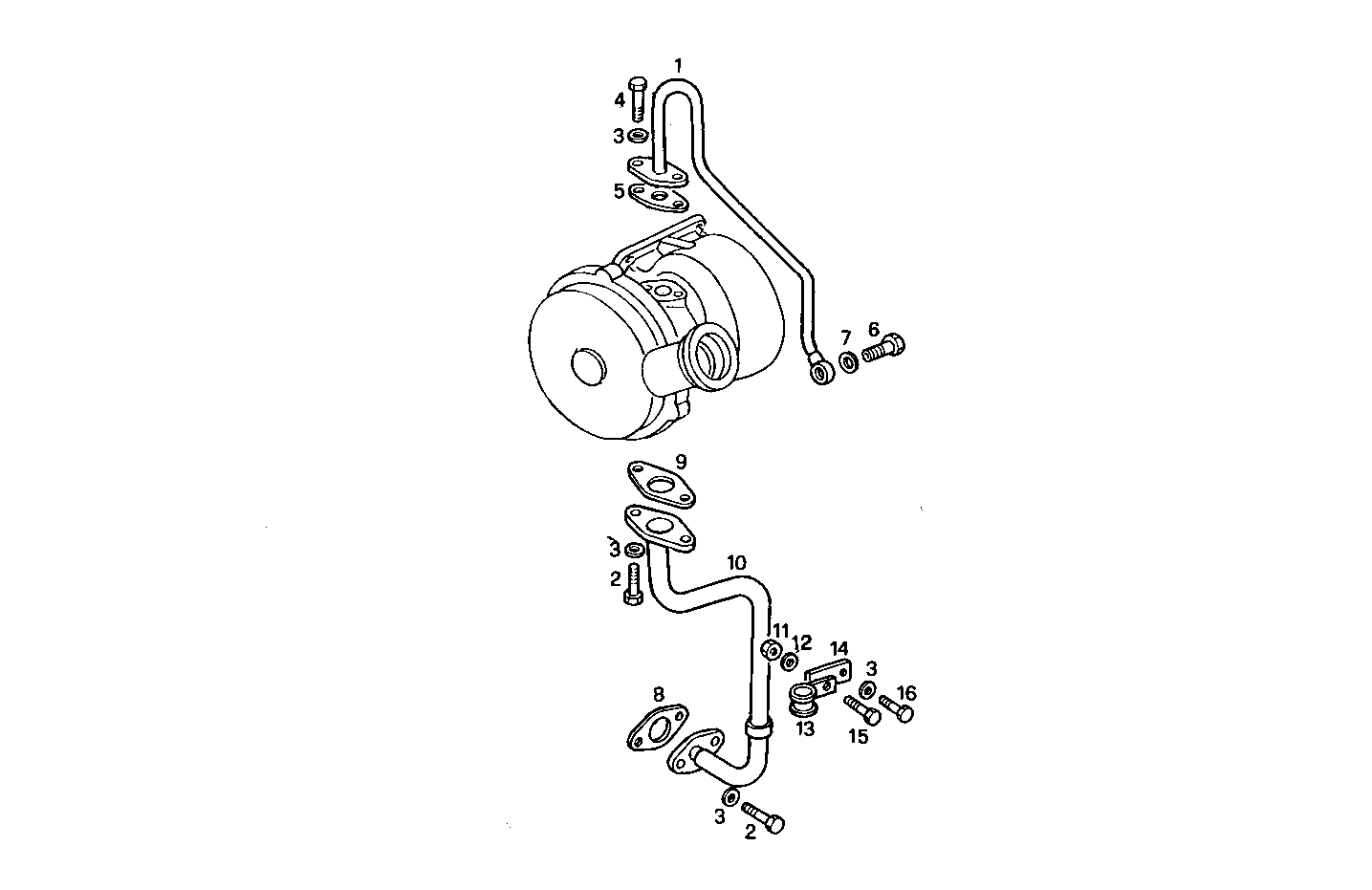

LUBE OIL LINES
8361SRi12.00 — 8361SRI12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018424 | OIL LINE OIL LINE | 1 | |
| 2 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 4 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 7 | 98474309 | WASHER WASHER | 2 | |
| 8 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 98411814 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 98441262 | OIL LINE OIL LINE | 1 | |
| 11 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 17088474 | WASHER WASHER | 1 | |
| 13 | 98495111 | RETAINER RETAINER | 1 | |
| 14 | 98495109 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 15 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16605424 | SCREW SCREW | 2 |
