THERMOSTARTER
8361SRi12.00 — 8361SRI12

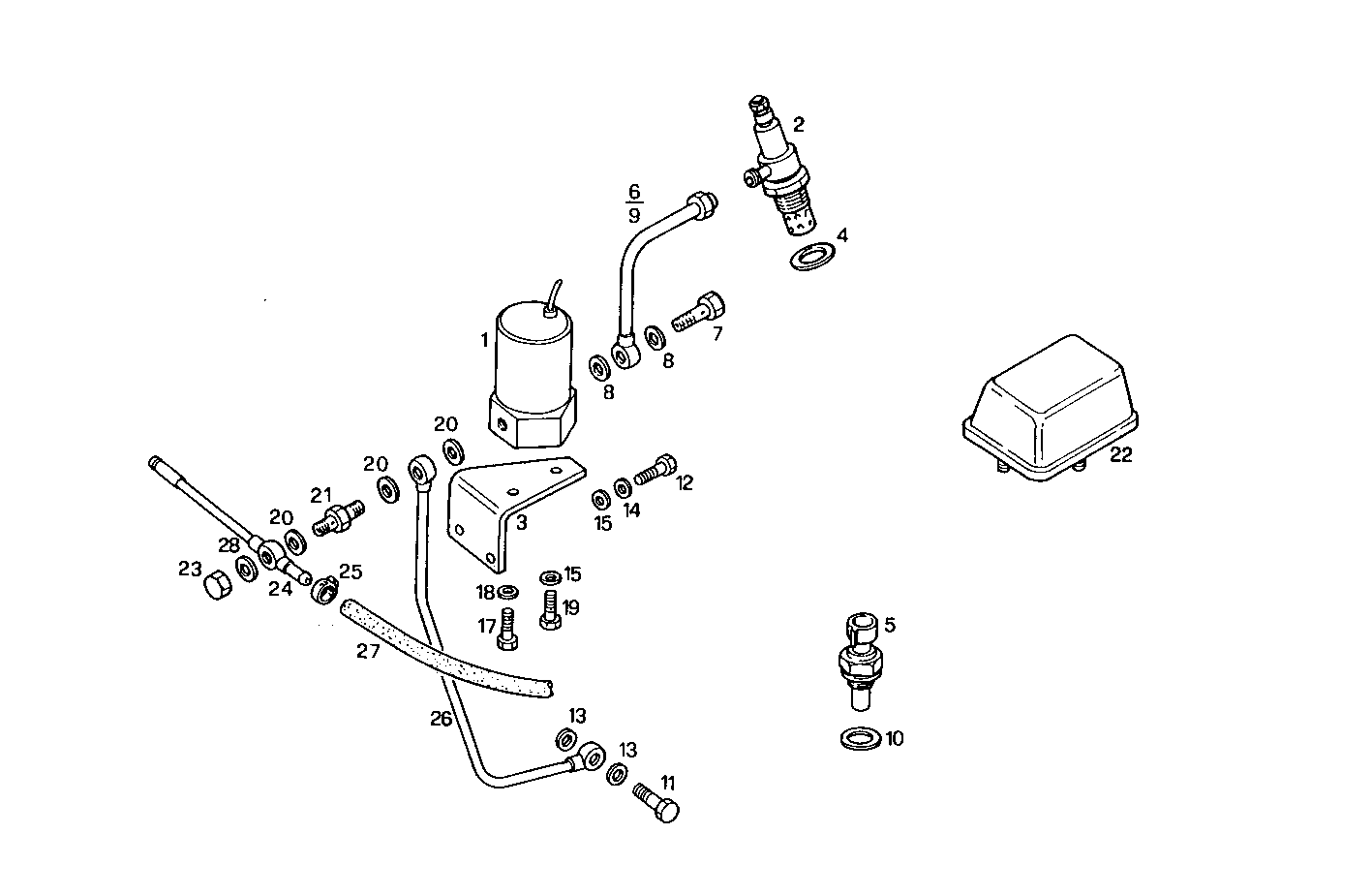

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98494902 | ELECTROVALVE ELECTROVALVE | 1 | |
| 2 | 4849601 | THERMO-STARTER THERMO-STARTER | 1 | |
| 3 | 8017494 | SUPPORT SUPPORT | 1 | |
| 4 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 4857248 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 8017717 | FUEL LINE FUEL LINE | 1 | |
| 7 | 16500011 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 98474305 | WASHER WASHER | 2 | |
| 9 | 8019735 | FUEL LINE FUEL LINE | 1 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 12 | 16603524 | SCREW SCREW | 2 | |
| 13 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 17094714 | WASHER WASHER | 2 | |
| 15 | 17088474 | WASHER WASHER | 3 | |
| 17 | 16601924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 17094504 | WASHER WASHER | 1 | |
| 19 | 16603424 | SCREW SCREW | 1 | |
| 20 | 4858506 | GASKET GASKET | 2 | |
| 21 | 98469450 | BYPASS VALVE BYPASS VALVE | 1 | |
| 22 | 8017238 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 23 | 98469675 | THREADED PLUG THREADED PLUG | 1 | |
| 24 | 8017718 | FUEL LINE FUEL LINE | 1 | |
| 25 | 17764391 | CLIP CLIP | 2 | |
| 26 | 8017489 | FUEL LINE FUEL LINE | 1 | |
| 27 | 4687211 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 28 | 98474306 | WASHER WASHER | 2 |
