DRY AIR CLEANER
8361SRI12.00A800 — 8361SRI12

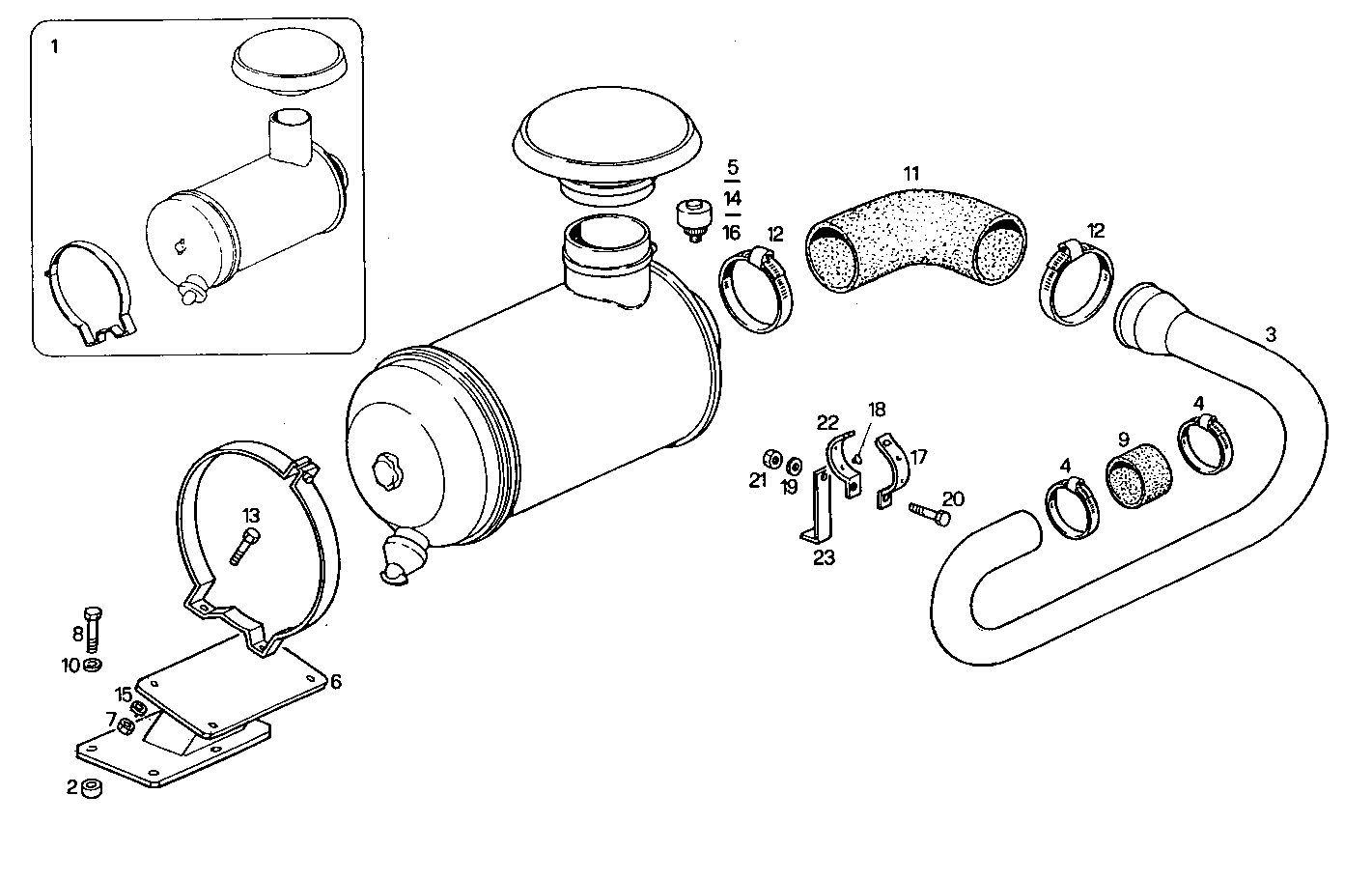

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019338 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 759850 | WASHER WASHER | 4 | |
| 3 | 8019332 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 17765191 | CLIP CLIP | 2 | |
| 5 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 6 | 8019331 | SUPPORT SUPPORT | 1 | |
| 7 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 8 | 11306924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 4931549 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 8019333 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 17765791 | CLIP CLIP | 2 | |
| 13 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 8022540 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 15 | 17091074 | WASHER WASHER | 4 | |
| 16 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 17 | 8013655 | CLAMP CLAMP | 1 | |
| 18 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 20 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 22 | 8013656 | CLAMP CLAMP | 1 | |
| 23 | 8011585 | RETAINER RETAINER | 1 |
