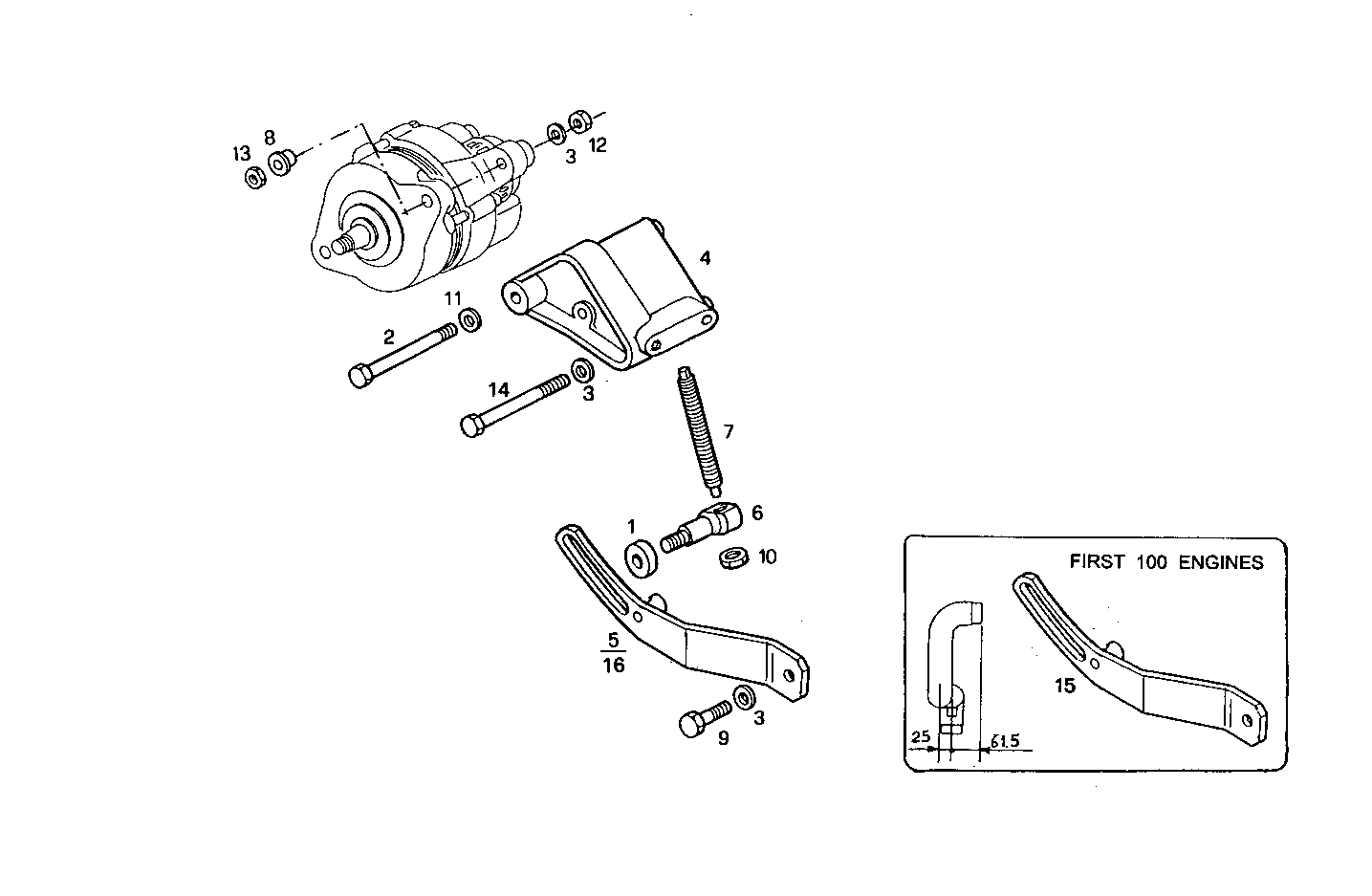

MOUNT
8361SRI12.00A800 — 8361SRI12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4513436 | SUPPORT RING SUPPORT RING | 1 | |
| 2 | 15541921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 3 | 17091074 | WASHER WASHER | 5 | |
| 4 | 4853916 | SUPPORT SUPPORT | 1 | |
| 5 | 4853918 | BELT TENSIONER BELT TENSIONER | 1 | |
| 6 | 4853920 | ADJUSTING SCREW ADJUSTING SCREW | 1 | |
| 7 | 4853921 | ADJUSTING SCREW ADJUSTING SCREW | 1 | |
| 8 | 4853922 | SPACING BAR SPACING BAR | 1 | |
| 9 | 11306921 | SCREW SCREW | 1 | |
| 10 | 16979731 | NUT NUT | 1 | |
| 11 | 12646901 | WASHER WASHER | 1 | |
| 12 | 17042931 | NUT NUT | 1 | |
| 13 | 17157221 | NUT NUT | 1 | |
| 14 | 15971824 | SCREW SCREW | 3 | |
| 15 | 8018461 | TENSIONER TENSIONER | 1 | |
| 16 | 8026709 | TENSIONER TENSIONER | 1 |
