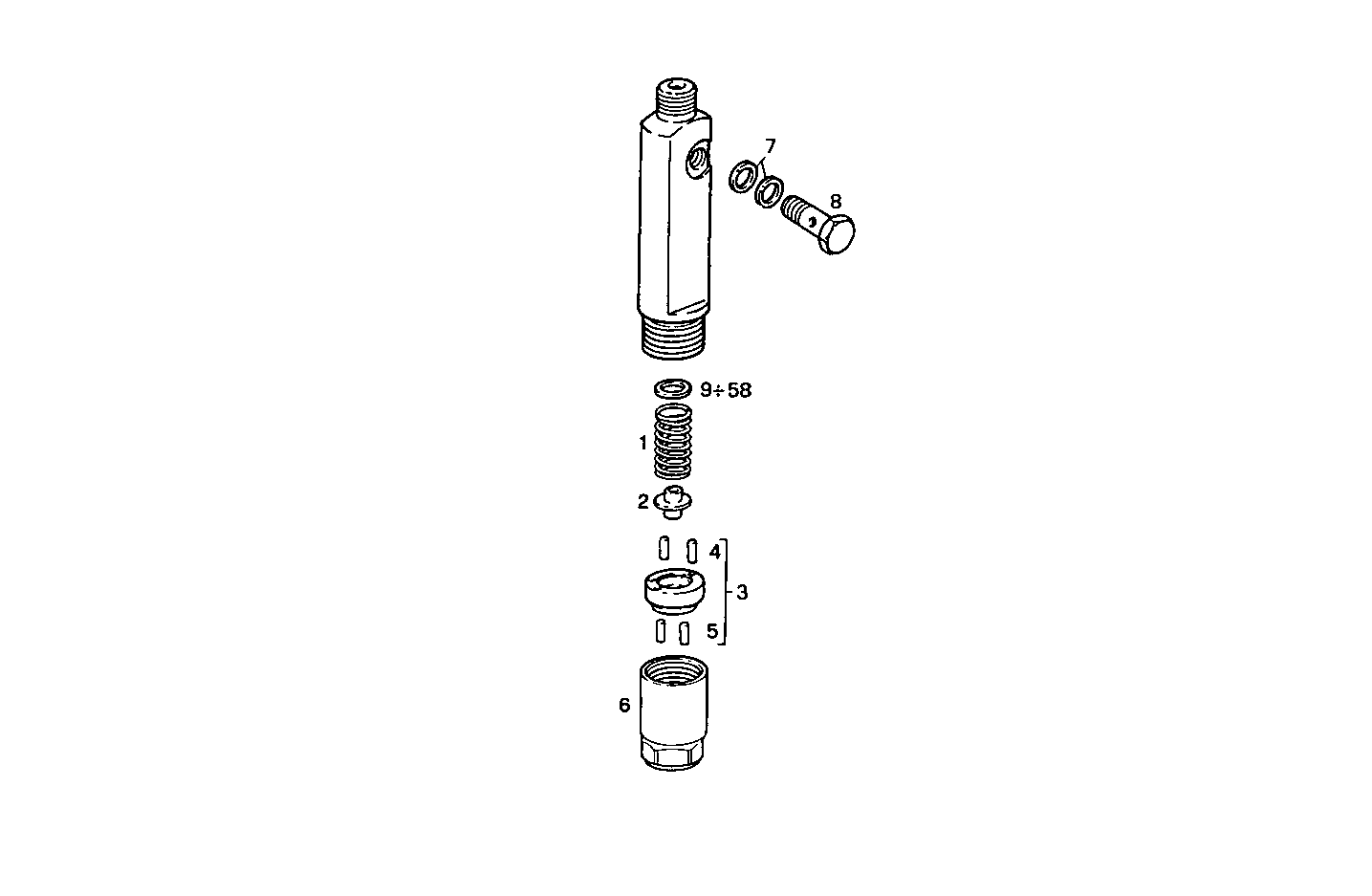

NOZZLE HOLDER (COMPONENTS)
8361SRI12.00A800 — 8361SRI12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 42490267 | SPRING SPRING | 1 | |
| 2 | 42490268 | WASHER/PLATE WASHER/PLATE | 1 | |
| 3 | 42490269 | CENTERING RING CENTERING RING | 1 | |
| 4 | 9982960 | PARALLEL PIN PARALLEL PIN | 2 | |
| 5 | 9984028 | PARALLEL PIN PARALLEL PIN | 2 | |
| 6 | 8123620 | FASTENING RING FASTENING RING | 1 | |
| 7 | 9929742 | WASHER WASHER | 2 | |
| 8 | 93190600 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 79067806 | SHIM SHIM | 1 | |
| 10 | 79067846 | SHIM SHIM | 1 | |
| 11 | 79067807 | SHIM SHIM | 1 | |
| 12 | 79067808 | SHIM SHIM | 1 | |
| 13 | 79067809 | SHIM SHIM | 1 | |
| 14 | 79067810 | SHIM SHIM | 1 | |
| 15 | 79067812 | SHIM SHIM | 1 | |
| 16 | 79067813 | SHIM SHIM | 1 | |
| 17 | 79067814 | SHIM SHIM | 1 | |
| 18 | 79067815 | SHIM SHIM | 1 | |
| 19 | 79067816 | SHIM SHIM | 1 | |
| 20 | 79067817 | SHIM SHIM | 1 | |
| 21 | 79067818 | SHIM SHIM | 1 | |
| 22 | 79067819 | SHIM SHIM | 1 | |
| 23 | 79067820 | SHIM SHIM | 1 | |
| 24 | 79067821 | SHIM SHIM | 1 | |
| 25 | 79067822 | SHIM SHIM | 1 | |
| 26 | 79067823 | SHIM SHIM | 1 | |
| 27 | 79067824 | SHIM SHIM | 1 | |
| 28 | 79067825 | SHIM SHIM | 1 | |
| 29 | 79067826 | SHIM SHIM | 1 | |
| 30 | 79067827 | SHIM SHIM | 1 | |
| 31 | 79067828 | SHIM SHIM | 1 | |
| 32 | 79067829 | SHIM SHIM | 1 | |
| 33 | 79067830 | SHIM SHIM | 1 | |
| 34 | 79067831 | SHIM SHIM | 1 | |
| 35 | 79067833 | SHIM SHIM | 1 | |
| 36 | 79067834 | SHIM SHIM | 1 | |
| 37 | 79067835 | SHIM SHIM | 1 | |
| 38 | 79067836 | SHIM SHIM | 1 | |
| 39 | 79067837 | SHIM SHIM | 1 | |
| 40 | 79067838 | SHIM SHIM | 1 | |
| 41 | 79067839 | SHIM SHIM | 1 | |
| 42 | 79067840 | SHIM SHIM | 1 | |
| 43 | 79067842 | SHIM SHIM | 1 | |
| 44 | 79067843 | SHIM SHIM | 1 | |
| 45 | 79067844 | SHIM SHIM | 1 | |
| 46 | 79067845 | SHIM SHIM | 1 | |
| 47 | 79067847 | SHIM SHIM | 1 | |
| 48 | 79067848 | SHIM SHIM | 1 | |
| 49 | 79067849 | SHIM SHIM | 1 | |
| 50 | 79067850 | SHIM SHIM | 1 | |
| 51 | 79067851 | SHIM SHIM | 1 | |
| 52 | 79067852 | SHIM SHIM | 1 | |
| 53 | 79067853 | SHIM SHIM | 1 | |
| 54 | 79067854 | SHIM SHIM | 1 | |
| 55 | 79067855 | SHIM SHIM | 1 | |
| 56 | 79067841 | SHIM SHIM | 1 | |
| 57 | 79067811 | SHIM SHIM | 1 | |
| 58 | 79067832 | SHIM SHIM | 1 |
