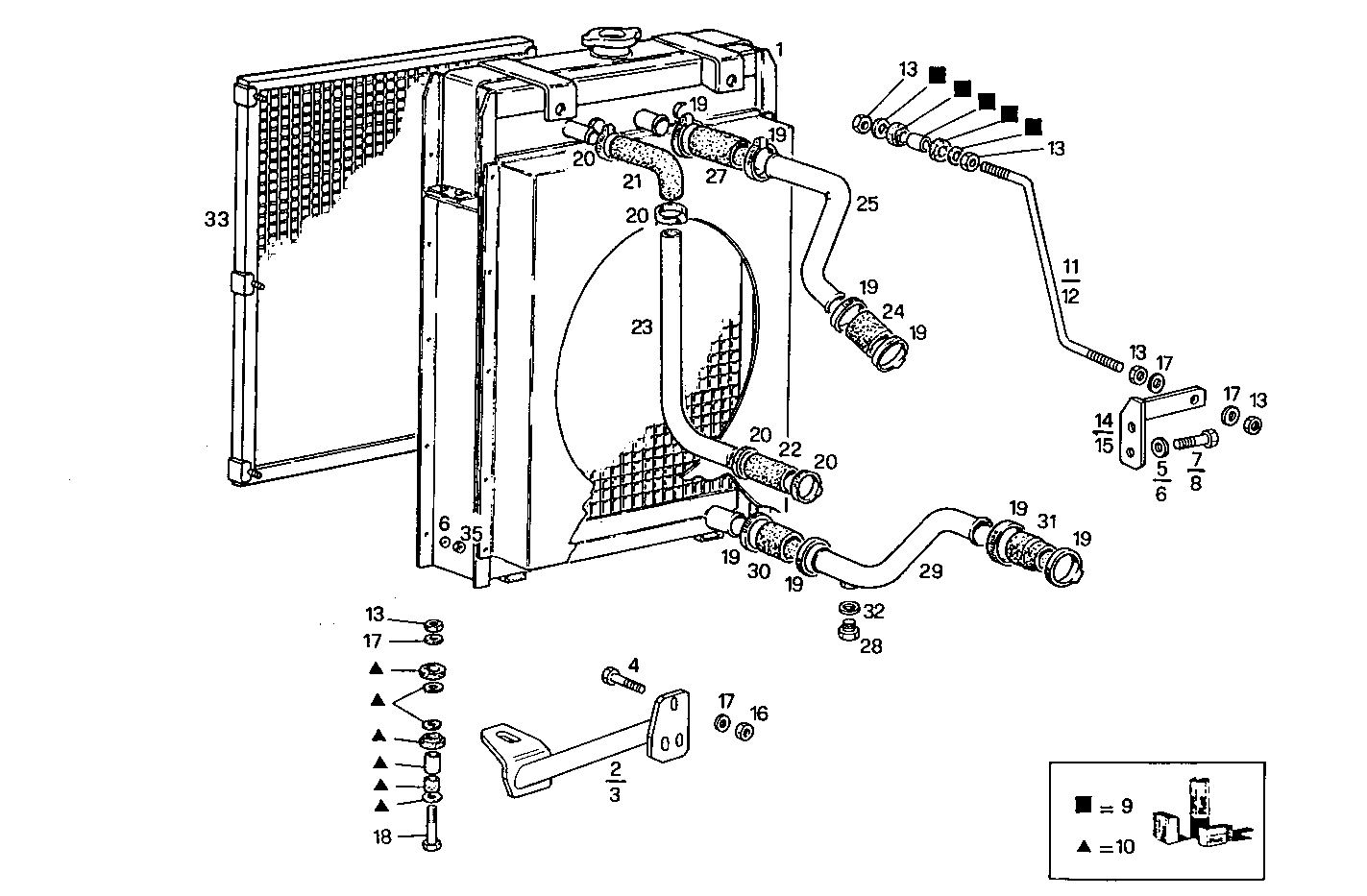

RADIATOR FOR SETTING TILL MAX POWER
8361SRI12.00A800 — 8361SRI12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107679 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8019090 | SUPPORT SUPPORT | 1 | |
| 3 | 8019091 | SUPPORT SUPPORT | 1 | |
| 4 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 10 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 11 | 8019763 | TIE ROD TIE ROD | 1 | |
| 12 | 8019661 | TIE ROD TIE ROD | 1 | |
| 13 | 17038421 | HEXAGON NUT HEXAGON NUT | 16 | |
| 14 | 8019741 | RETAINER RETAINER | 1 | |
| 15 | 8019764 | RETAINER RETAINER | 1 | |
| 16 | 17038421 | HEXAGON NUT HEXAGON NUT | 6 | |
| 17 | 17091074 | WASHER WASHER | 12 | |
| 18 | 16610724 | SCREW SCREW | 2 | |
| 19 | 98490783 | CLIP CLIP | 8 | |
| 20 | 17764592 | CLIP CLIP | 4 | |
| 21 | 17738187 | WATER HOSE WATER HOSE | 1 | |
| 22 | 98421371 | AIR HOSE AIR HOSE | 1 | |
| 23 | 8019111 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8010366 | WATER HOSE WATER HOSE | 1 | |
| 25 | 8019103 | WATER PIPE WATER PIPE | 1 | |
| 27 | 17744887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 28 | 4595833 | THREADED PLUG THREADED PLUG | 1 | |
| 29 | 8019102 | WATER PIPE WATER PIPE | 1 | |
| 30 | 8010366 | WATER HOSE WATER HOSE | 1 | |
| 31 | 4951318 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 32 | 98474312 | GASKET GASKET | 1 | |
| 33 | 8108066 | GRILLE GRILLE | 1 | |
| 35 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 |
