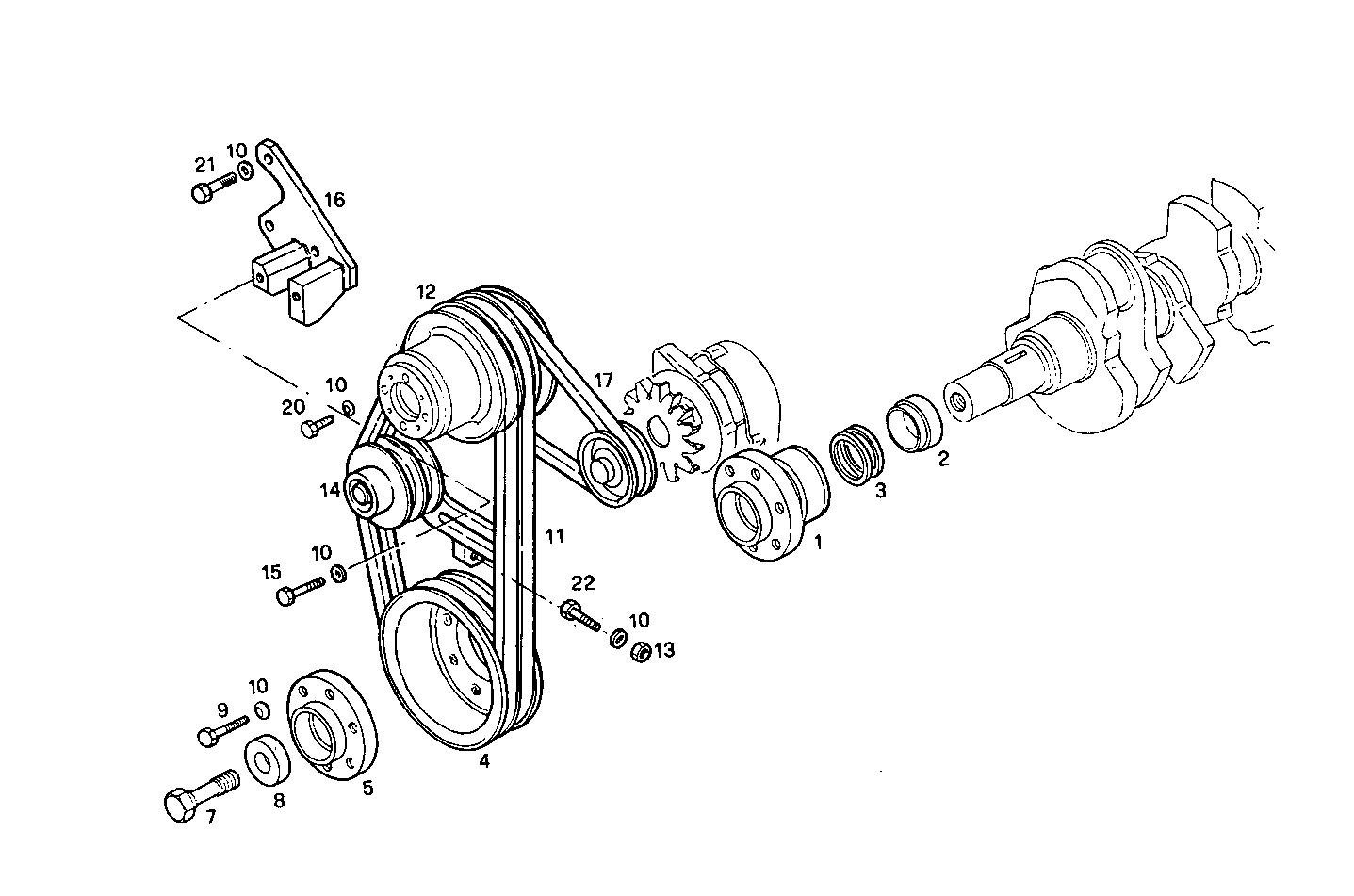

PULLEYS AND BELTS
8361SRi26.00A550 — 8361SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4820917 | HUB HUB | 1 | |
| 2 | 4711787 | BUSH BUSH | 1 | |
| 3 | 4811426 | BUSH BUSH | 1 | |
| 4 | 8112730 | PULLEY PULLEY | 1 | |
| 5 | 4725248 | SPACING BAR SPACING BAR | 1 | |
| 7 | 8823774 | SCREW SCREW | 1 | |
| 8 | 8823773 | WASHER WASHER | 1 | |
| 9 | 15888831 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 10 | 17090274 | WASHER WASHER | 15 | |
| 11 | 4763649 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 12 | 8112729 | PULLEY PULLEY | 1 | |
| 13 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 8112733 | BELT TENSIONER BELT TENSIONER | 1 | |
| 15 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 8112731 | SUPPORT SUPPORT | 1 | |
| 17 | 4830442 | V-BELT V-BELT | 1 | |
| 20 | 15971821 | SCREW SCREW | 4 | |
| 21 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 22 | 15231721 | SCREW SCREW | 1 |
