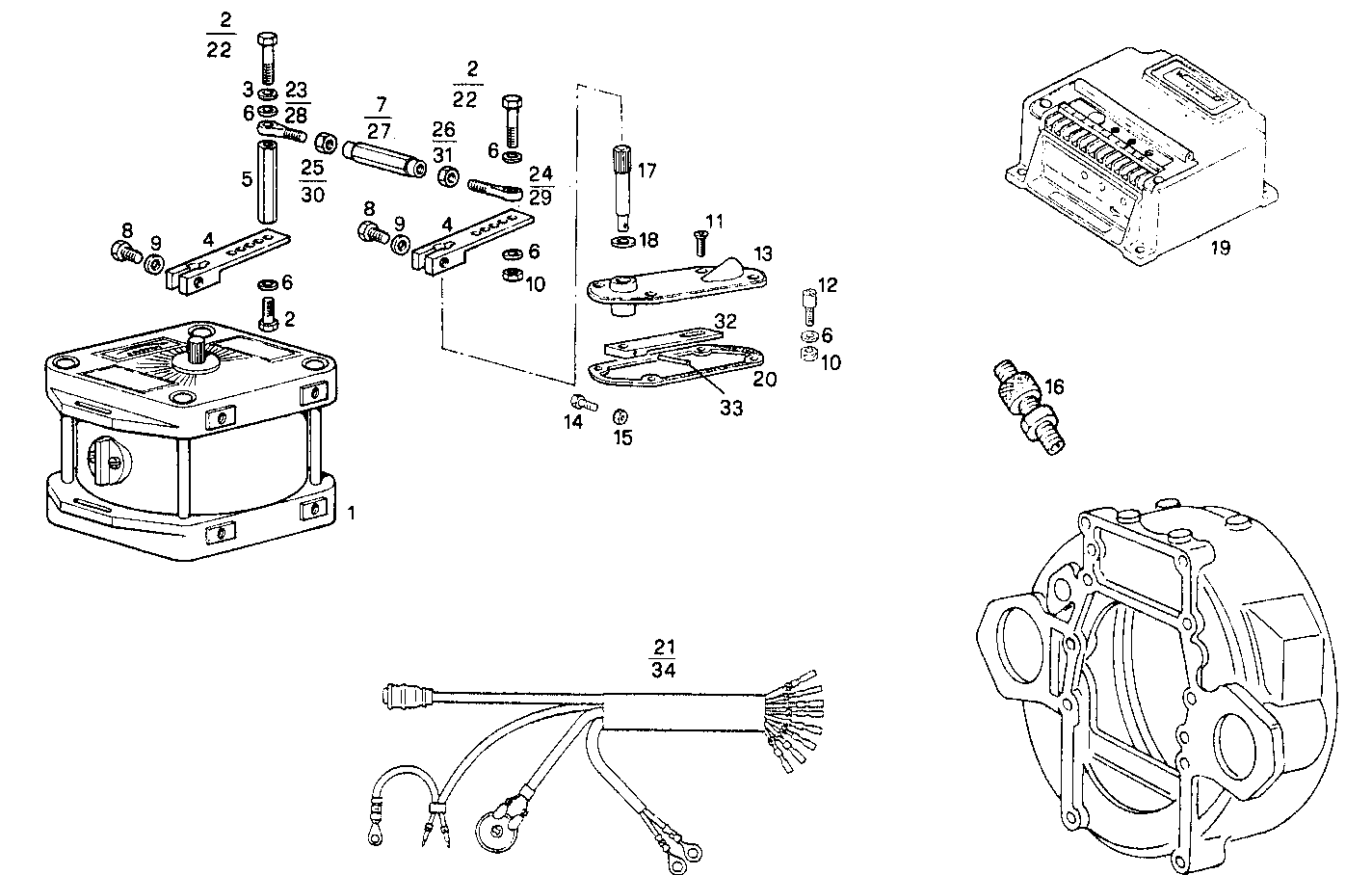

ELECTRONIC SPEED GOVERNOR
8361SRi26.05 — 8361SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107492 | INJECTION CONTROL INJECTION CONTROL | 1 | |
| 2 | 16602214 | SCREW SCREW | 3 | |
| 3 | 17094504 | WASHER WASHER | 1 | |
| 4 | 8108603 | LEVER LEVER | 2 | |
| 5 | 8108656 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17094714 | WASHER WASHER | 5 | |
| 7 | 8118606 | TIE ROD TIE ROD | 1 | |
| 8 | 10902321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17152621 | NUT NUT | 1 | |
| 11 | 8109360 | SCREW SCREW | 4 | |
| 12 | 8108604 | PIN PIN | 1 | |
| 13 | 8007452 | COVER COVER | 1 | |
| 14 | 8108715 | SCREW SCREW | 1 | |
| 15 | 17037721 | NUT NUT | 1 | |
| 16 | 8018673 | PICK-UP PICK-UP | 1 | |
| 17 | 8109731 | PIN PIN | 1 | |
| 18 | 8109732 | WASHER WASHER | 1 | |
| 19 | 8103081 | INJECTION CONTROL INJECTION CONTROL | 1 | |
| 20 | 8009910 | GASKET GASKET | 1 | |
| 21 | 8108631 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 22 | 8016470 | SCREW SCREW | 2 | |
| 23 | 8114008 | BANJO COUPLING BANJO COUPLING | 1 | |
| 24 | 8114009 | TIE ROD TIE ROD | 1 | |
| 25 | 8109397 | NUT NUT | 1 | |
| 26 | 8109398 | NUT NUT | 1 | |
| 27 | 8016413 | TIE ROD TIE ROD | 1 | |
| 28 | 8016587 | TIE ROD TIE ROD | 1 | |
| 29 | 8016588 | TIE ROD TIE ROD | 1 | |
| 30 | 15896240 | NUT NUT | 1 | |
| 31 | 10789640 | NUT NUT | 1 | |
| 32 | 8108601 | LEVER LEVER | 1 | |
| 33 | 14158570 | DOWEL PIN DOWEL PIN | 1 | |
| 34 | 8022927 | ENGINE HARNESS ENGINE HARNESS | 1 |
