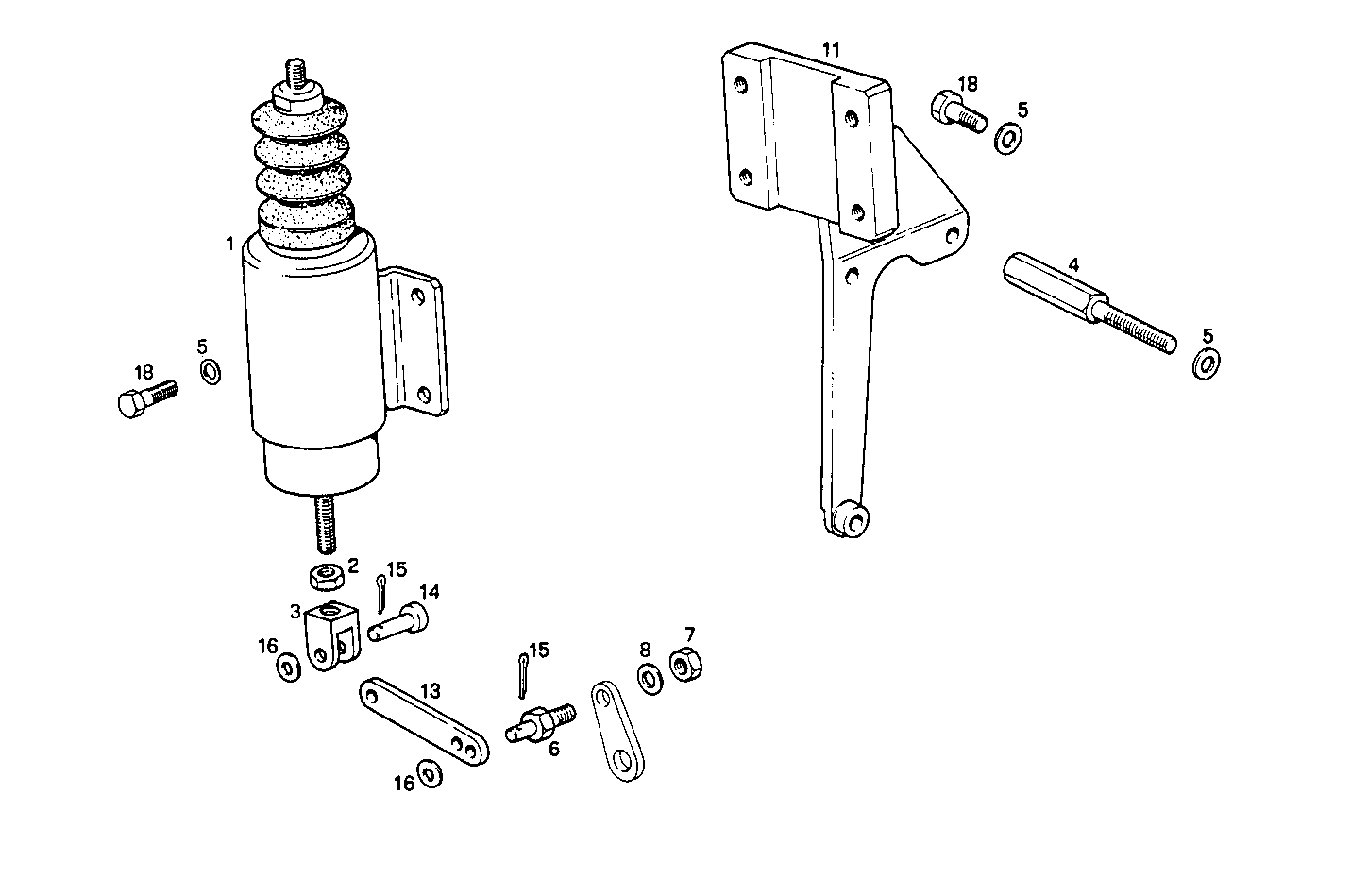

STOP SOLENOID - ENERGIZE TO STOP - 24V
8361SRi40.00 — 8361SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105568 | SOLENOID SOLENOID | 1 | |
| 2 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 3 | 8109159 | CLEVIS CLEVIS | 1 | |
| 4 | 8012958 | SPACING BAR SPACING BAR | 2 | |
| 5 | 17088474 | WASHER WASHER | 9 | |
| 6 | 8012959 | PIN PIN | 1 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 17094714 | WASHER WASHER | 1 | |
| 11 | 8012956 | SUPPORT SUPPORT | 1 | |
| 13 | 8012882 | CLEVIS CLEVIS | 1 | |
| 14 | 17718411 | PIN PIN | 1 | |
| 15 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 16 | 17094504 | WASHER WASHER | 2 | |
| 18 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 7 |
