AIR CLEANER
8361SRM32.00 — 8361SRM32

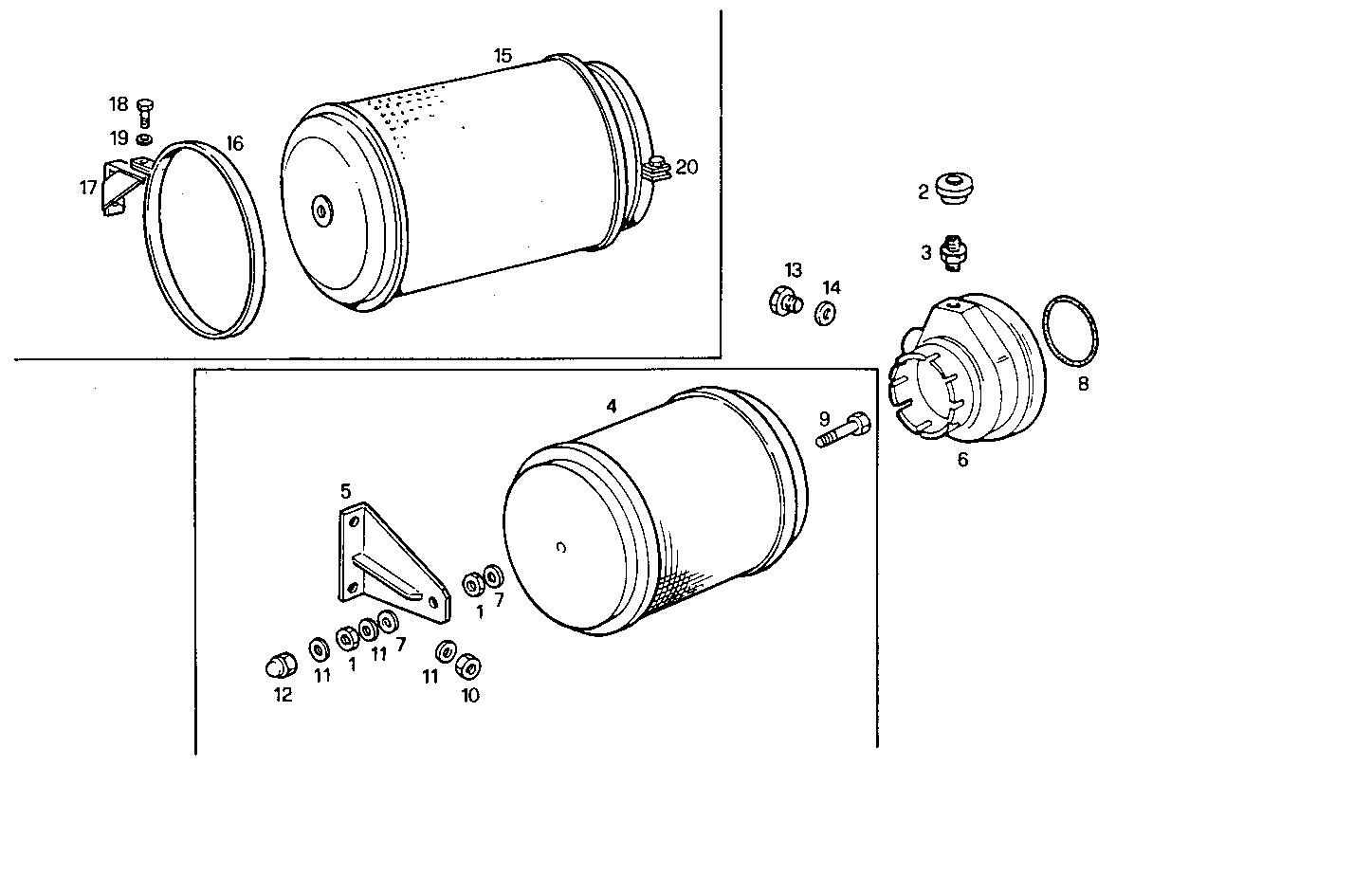

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16102311 | HEXAGON NUT HEXAGON NUT | 2 | |
| 2 | 2427063 | AIR PRESSURE GAUGE AIR PRESSURE GAUGE | 1 | |
| 3 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8105547 | AIR CLEANER AIR CLEANER | 1 | |
| 5 | 8112215 | RETAINER RETAINER | 1 | |
| 6 | 8106155 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 7 | 12644321 | WASHER WASHER | 2 | |
| 8 | 17285081 | O-RING O-RING | 1 | |
| 9 | 16143821 | SCREW SCREW | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 8101714 | NUT NUT | 1 | |
| 13 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 4858607 | WASHER WASHER | 1 | |
| 15 | 8015887 | AIR CLEANER AIR CLEANER | 1 | |
| 16 | 8017225 | CLIP CLIP | 1 | |
| 17 | 8018798 | RETAINER RETAINER | 1 | |
| 18 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 20 | 17770599 | CLIP CLIP | 1 |
